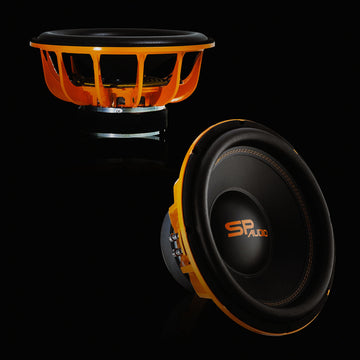

SP 15CC Subwoofer 15" 1000W RMS 2+2 Ohm
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
1000 watt RMS.
76.2 mm / 3" voice coil.
A 15"/38 cm subwoofer built around a 76.2 mm / 3" dual voice coil: 2+2 ohm, 1000 W RMS continuous, 2000 W peak, 89 dB sensitivity. Cone in compressed paper, fibreglass and black paint, large "R" suspension, 180 °C aluminium wire winding. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE PEAK FIGURE IS A SHORT-TERM VALUE: SIZE THE AMPLIFIER ON THE 1000 W RMS
Why this subwoofer
Not a burst figure: 1000 W RMS is the power the voice coil handles continuously, with 2000 W of peak on top.
The bigger the coil, the more heat it dissipates and the longer it survives a real session. Wound with 180 °C aluminium wire.
Two 2 ohm coils: in parallel 1 ohm, in series 4 ohm. You choose the impedance that matches your amplifier instead of the other way round.
Cone in compressed paper, fibreglass and black paint, with large "R" suspension and 5.0 mm of Xmax: it takes the excursion without losing shape.
Wiring of the voice coils, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · English · 2026
What you receive
- 1 × SP 15CC subwoofer. The price shown is for a single unit, not for a pair.
- The user manual in PDF. Wiring of the voice coils, impedance and full specifications.
- An invoice from an Italian company, with EU warranty on manufacturing defects.
- Free technical support from Italy, before and after you install it.
Technical specifications
| SUBWOOFER — SPECIFICATIONS | |
|---|---|
| Nominal diameter | 380 mm (15") |
| Rated impedance | 2+2 ohm, dual voice coil |
| Rated power (RMS) | 1000 W |
| Peak power (MAX) | 2000 W |
| Sensitivity | 89 dB |
| Frequency range | 20–200 Hz |
| Voice coil diameter | 76.2 mm / 3" |
| Winding material | 180 °C aluminium wire |
| Magnet | 134 Oz Y30 ferrite |
| Suspension | Large "R" form |
| Cone | Compressed paper + fibreglass + black painting |
| Xmax | 5.0 mm |
| Fs | 37.00 Hz |
| Qts | 0.633 |
| Qes | 0.663 |
| Qms | 13.763 |
| Vas | 69.93 L |
| Cms | 76.13 µm/N |
| Mms | 247.781 g |
| Bl | 18.55 TM |
| Sd | 804.2 cm² |
| Recommended vented enclosure | 80 L |
| Enclosure tuning frequency | 35 Hz |
| Sold as | Single unit |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Decide the impedance before you wire it. The two 2 ohm coils in parallel give 1 ohm; in series they give 4 ohm. Check that your amplifier is stable at the impedance you choose.
- Match the amplifier to 1000 W RMS. Sizing on the 2000 W figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid. A 15" cone moving this much air loads the box: thick panels, braced and sealed, or the box will lose output and rattle. The manufacturer sheet gives 80 L vented, tuned to 35 Hz.
- Size the power cable for the amplifier, with an inline fuse close to the battery and a ground point on bare metal.
Questions installers ask
