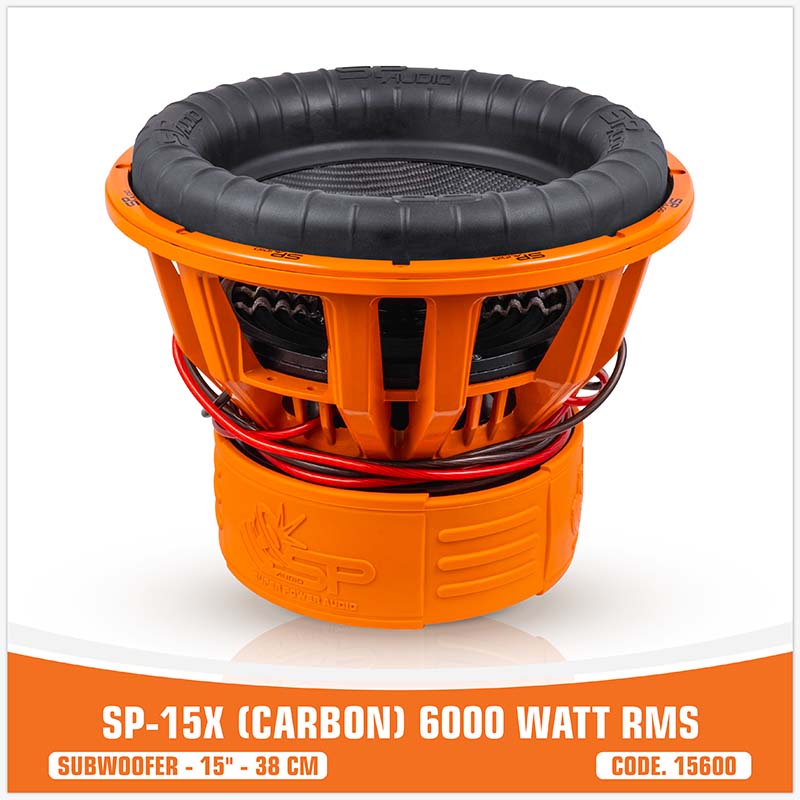

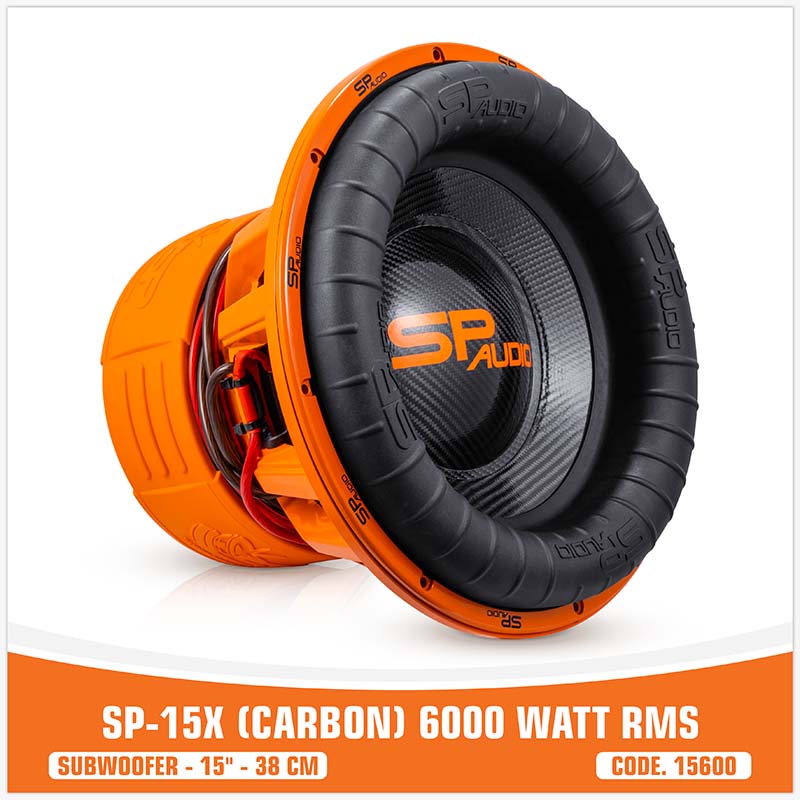

SP 15X Carbon Subwoofer 15" 6000W RMS
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
6000 watt RMS.
4 inch voice coil.
A 15"/38 cm subwoofer built around a 4 inch voice coil: rated 4 ohm with 2+2 ohm coils, 6000 W RMS continuous, 12000 W peak, 84 dB SPL sensitivity, 25–300 Hz. Compressed paper + fibreglass cone, large “R” form suspension, 280 °C aluminium wire winding, 119×4 Oz Y35 ferrite magnet, Xmax 32.5 mm. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE PEAK FIGURE IS A SHORT-TERM VALUE: SIZE THE AMPLIFIER ON THE 6000 W RMS
Why this subwoofer
Not a burst figure: 6000 W RMS is the power the voice coil handles continuously, with 12000 W of peak headroom on top.
The bigger the coil, the more heat it dissipates and the longer it survives a real session. Wound with 280 °C aluminium wire.
Rated impedance 4 ohm with two 2 ohm coils: you choose how to wire them to match your amplifier instead of the other way round.
Compressed paper + fibreglass cone, large “R” form suspension and a 119×4 Oz Y35 ferrite magnet: Xmax 32.5 mm, Bl 25.25 TM, Sd 754.77 cm².
Look closer

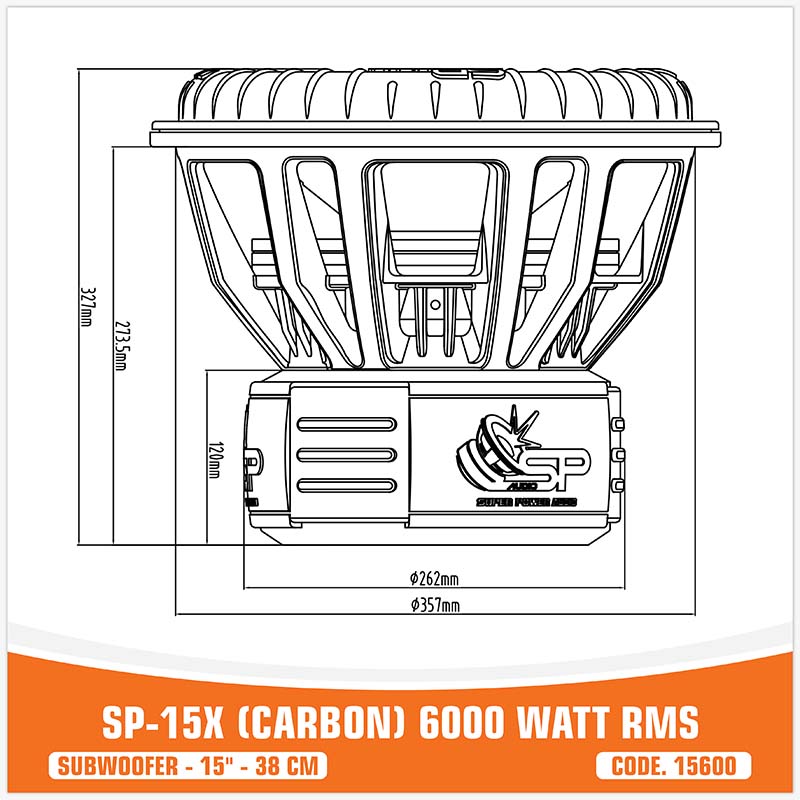

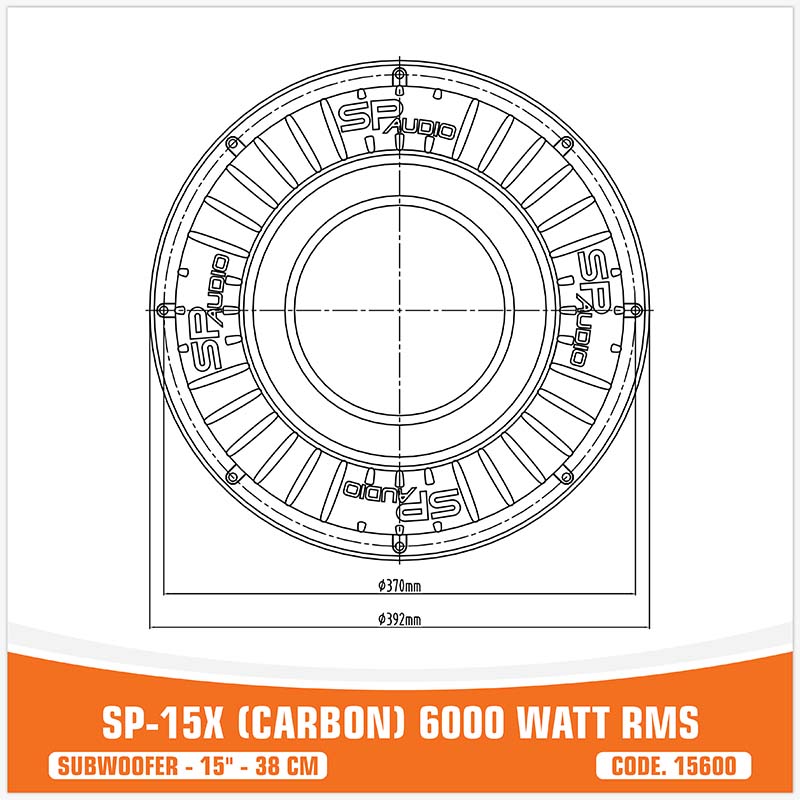

Wiring of the two voice coils, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · English · 2026
What you receive
- One SP 15X subwoofer — the price is for a single unit.
- The full user manual in PDF, linked above, with the wiring diagram of the two voice coils.
- Invoice from an Italian company, shipping from our warehouse in Italy.
- Free technical support from Italy before and after the installation.

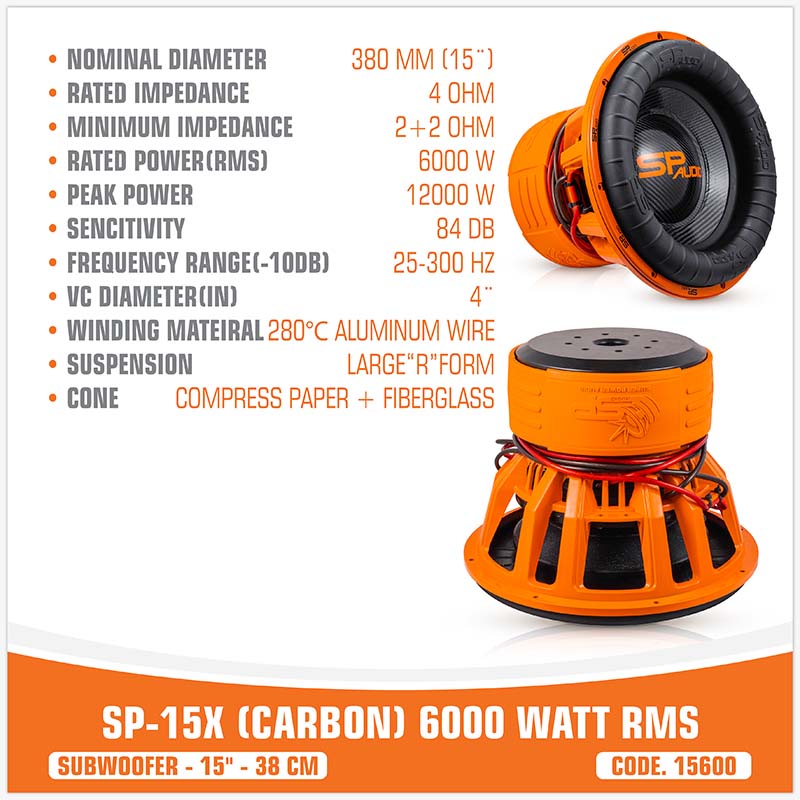

Technical specifications
| SUBWOOFER — SPECIFICATIONS | |
|---|---|
| POWER AND LOAD | |
| Nominal diameter | 380 mm (15") |
| Rated impedance | 4 ohm |
| Minimum impedance | 2+2 ohm |
| Rated power (RMS) | 6000 W |
| Peak power (MAX) | 12000 W |
| Sold as | Single unit |
| ACOUSTICS | |
| Sensitivity (1 W / 1 m) | 84 dB SPL |
| Frequency range | 25–300 Hz |
| MOTOR AND MATERIALS | |
| Voice coil diameter | 4 inch |
| Winding material | 280 °C aluminium wire |
| Magnet | 119×4 Oz Y35 ferrite |
| Suspension | Large “R” form |
| Cone | Compressed paper + fibreglass |
| THIELE-SMALL PARAMETERS | |
| Fs | 31.4 Hz |
| Qts | 0.634 |
| Qms | 5.088 |
| Qes | 0.724 |
| Vas | 32.61 L |
| Re | 4 ohm |
| Xmax | 32.5 mm |
| Mms | 634.73 g |
| Cms | 0.04 mm/N |
| Bl | 25.25 TM |
| Sd | 754.77 cm² |
| SPL | 84.0 dB |
| RECOMMENDED VENTED BOX | |
| Volume | 95 L |
| Tuning frequency | 31.4 Hz |
| Vent diameter | Ø 110 mm |
| Vent length | 26.5 cm |
| Shape | Circle |
| Vent cross area | 88.2 cm² |
| End correction | Two flanged ends |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Decide the impedance before you wire it. Rated impedance is 4 ohm, with two 2 ohm coils. Check that your amplifier is stable at the impedance you choose.
- Match the amplifier to 6000 W RMS. Sizing on the 12000 W PEAK figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid. The product sheet gives a vented box of 95 L tuned to 31.4 Hz, with a circular vent Ø 110 mm and 26.5 cm long, two flanged ends: thick panels, braced and sealed, or the box will lose output and rattle.
- Leave room for the excursion. Xmax is 32.5 mm: check the clearance behind the cone and keep the mounting baffle rigid.
- Size the power cable for the amplifier, with an inline fuse close to the battery and a ground point on bare metal.
