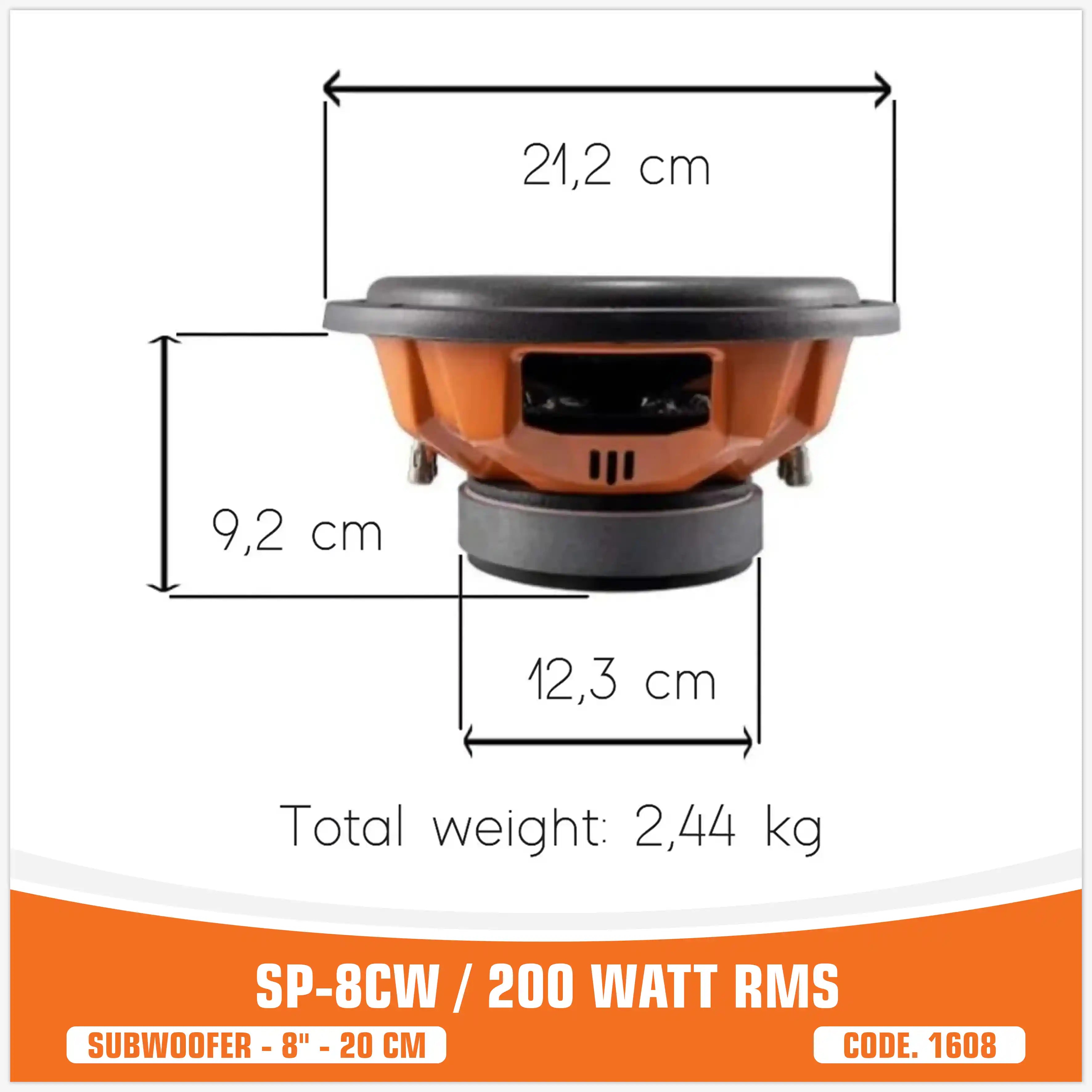

SP 8CW Subwoofer 8" 200W RMS 2+2 Ohm
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
200 watt RMS.
38.6 mm / 1.5" voice coil.

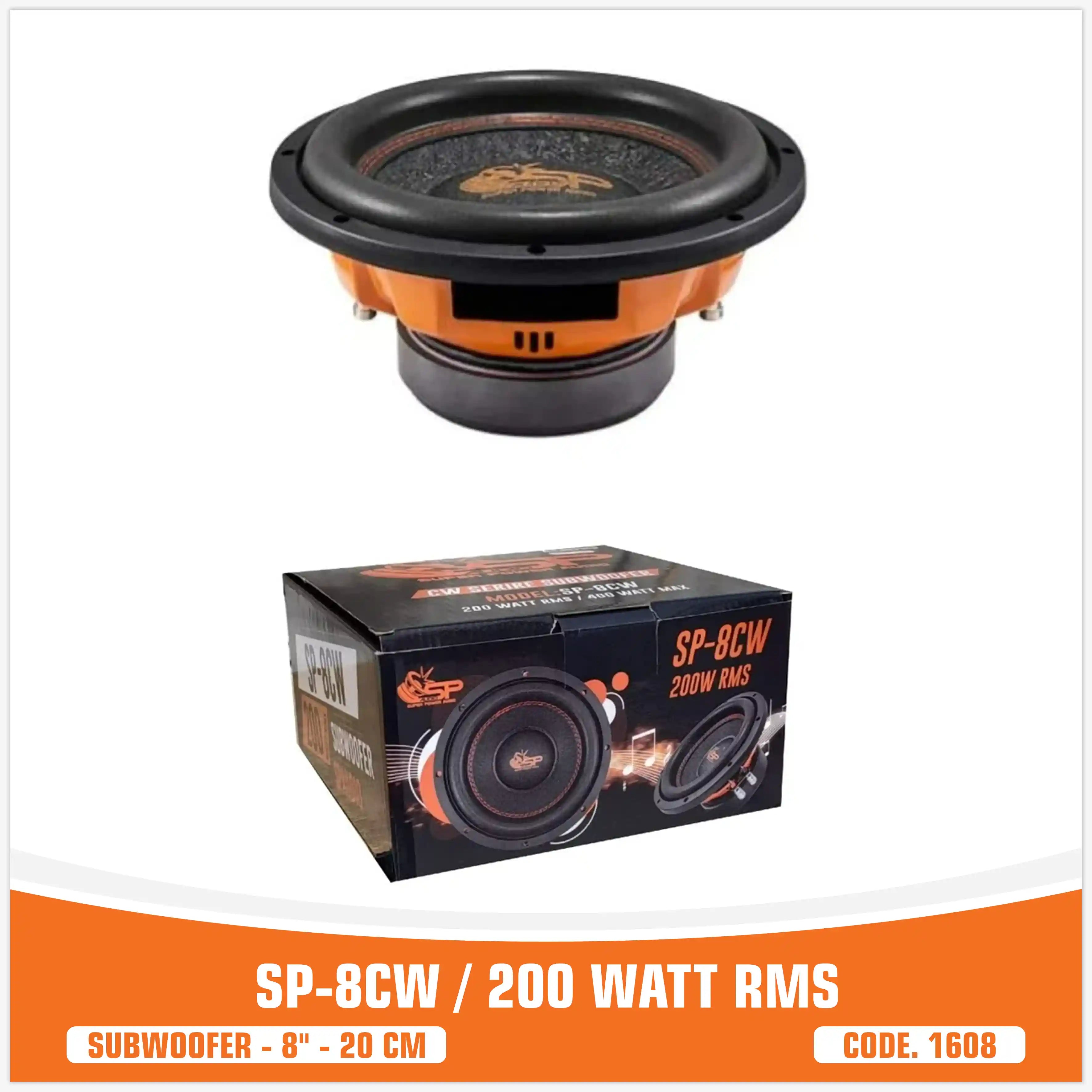

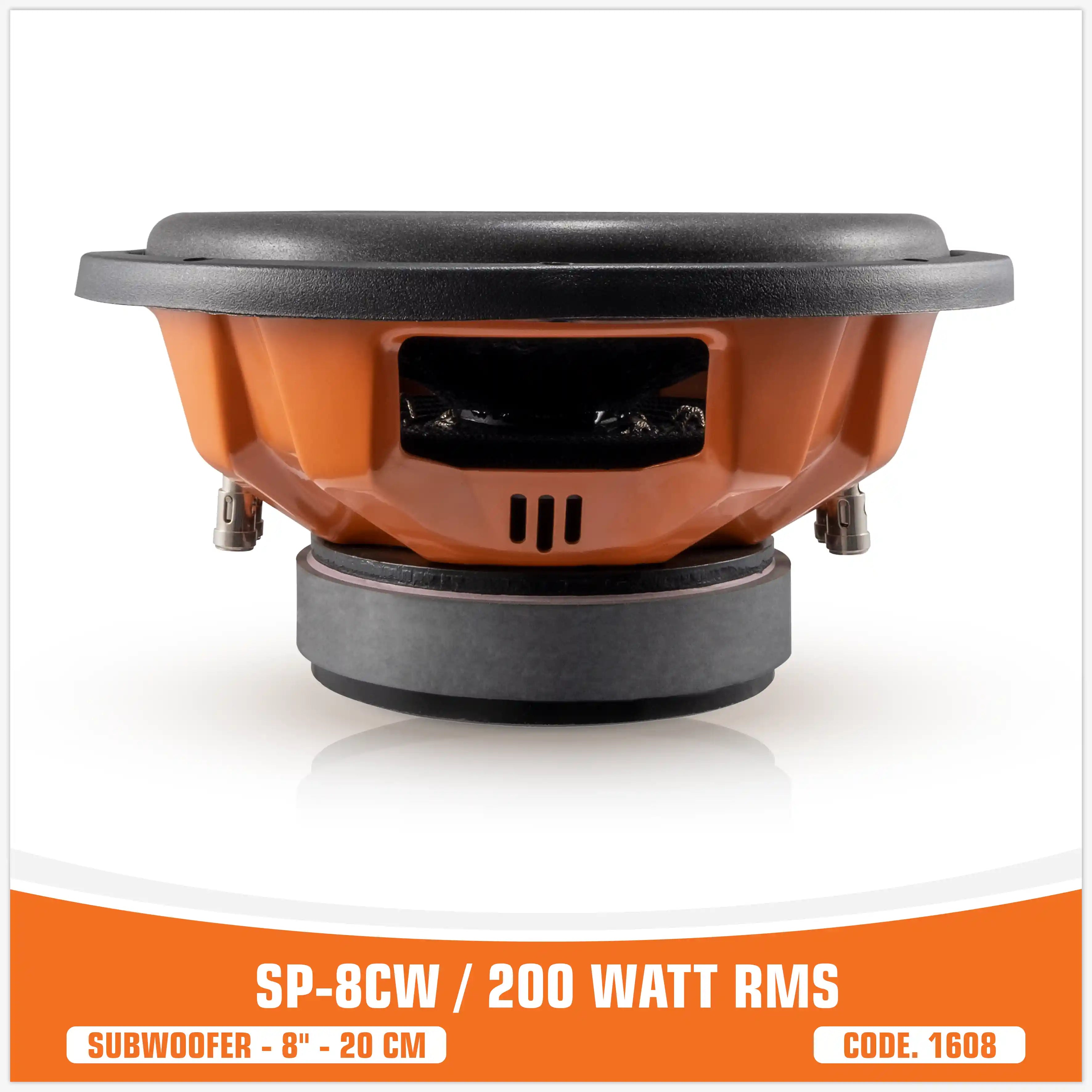

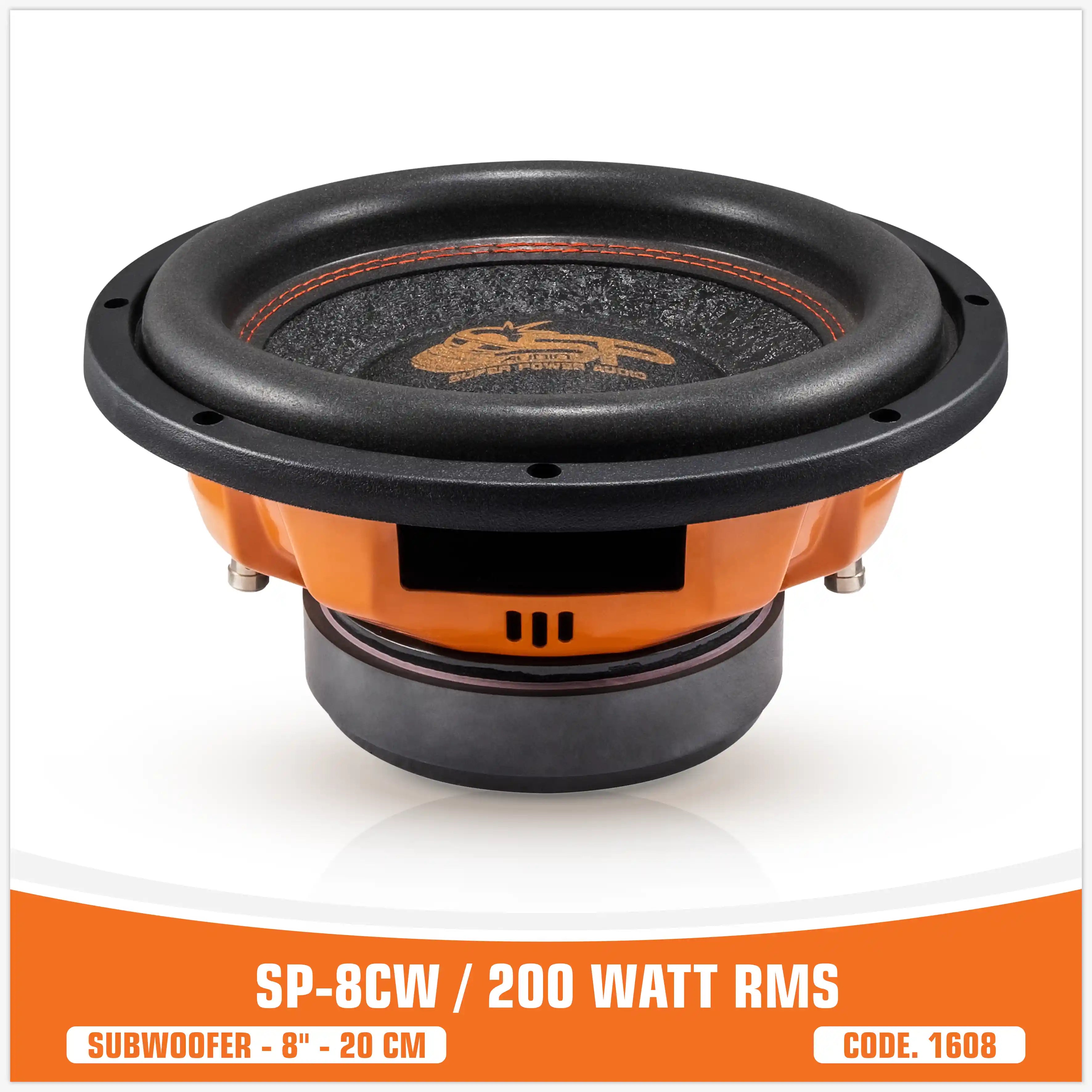

An entry-level 8"/20 cm subwoofer built around a 38.6 mm / 1.5" dual voice coil: 2+2 ohm, 200 W RMS continuous, 400 W peak, 83 dB sensitivity. Black non-pressed paper cone, wire large “R” form suspension, 200 °C copper (Cu) winding. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE PEAK FIGURE IS A SHORT-TERM VALUE: SIZE THE AMPLIFIER ON THE 200 W RMS
Why this subwoofer
Not a burst figure: 200 W RMS is the power the voice coil handles continuously, with 400 W of peak headroom on top.
The bigger the coil, the more heat it dissipates and the longer it survives a real session. Wound with 200 °C copper (Cu).

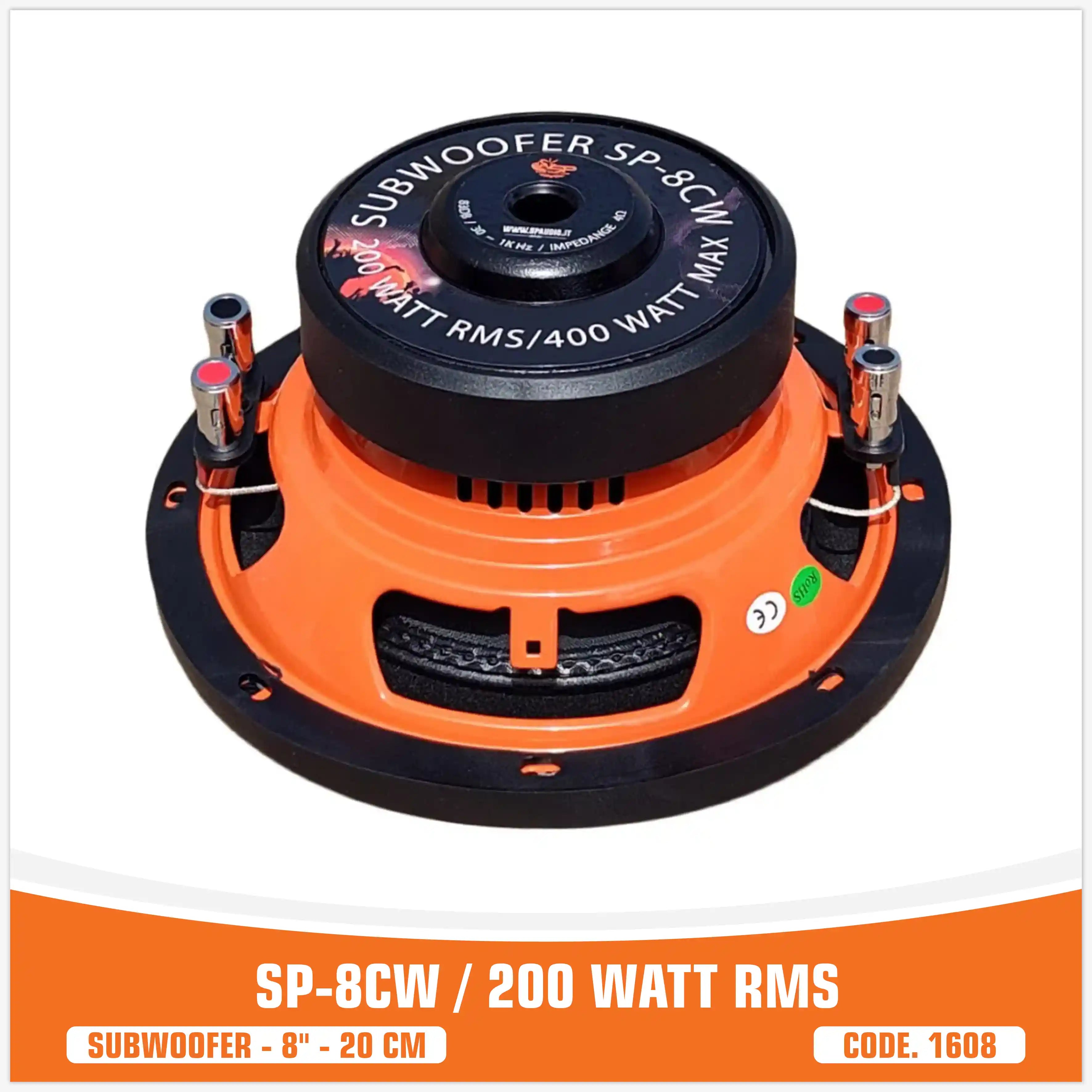

Two coils: in parallel 1 ohm, in series 4 ohm. You choose the impedance that matches your amplifier instead of the other way round.

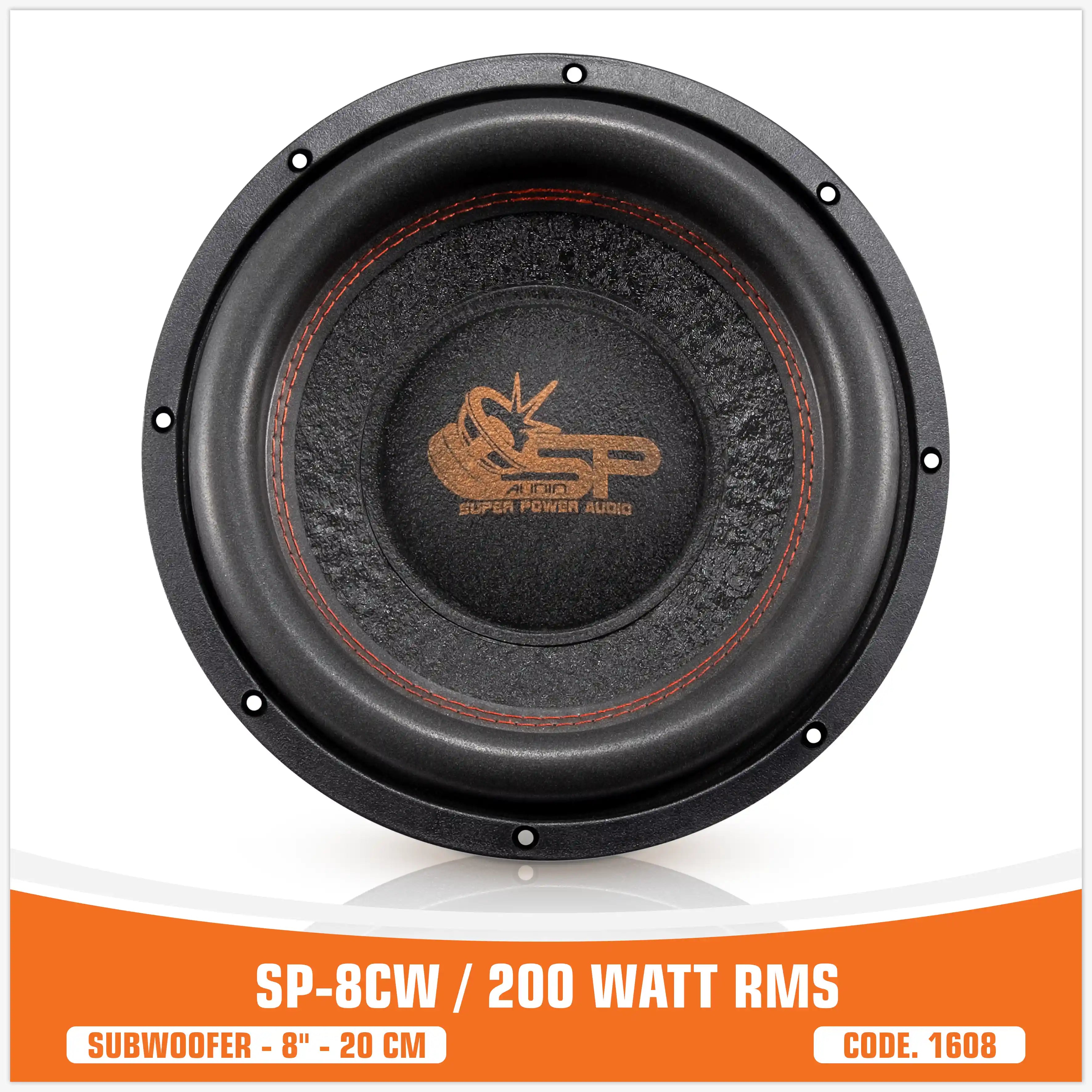

Black non-pressed paper cone, wire large “R” form suspension: a light moving assembly that gives full bass with a small amplifier.
Wiring of the two voice coils, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · English · 2026
What you receive
- One SP 8CW subwoofer — the price is for a single unit.
- The full user manual in PDF, linked above, with the wiring diagram of the two voice coils.
- Invoice from an Italian company, shipping from our warehouse in Italy.
- Free technical support from Italy before and after the installation.
Technical specifications
| SUBWOOFER — SPECIFICATIONS | |
|---|---|
| POWER AND LOAD | |

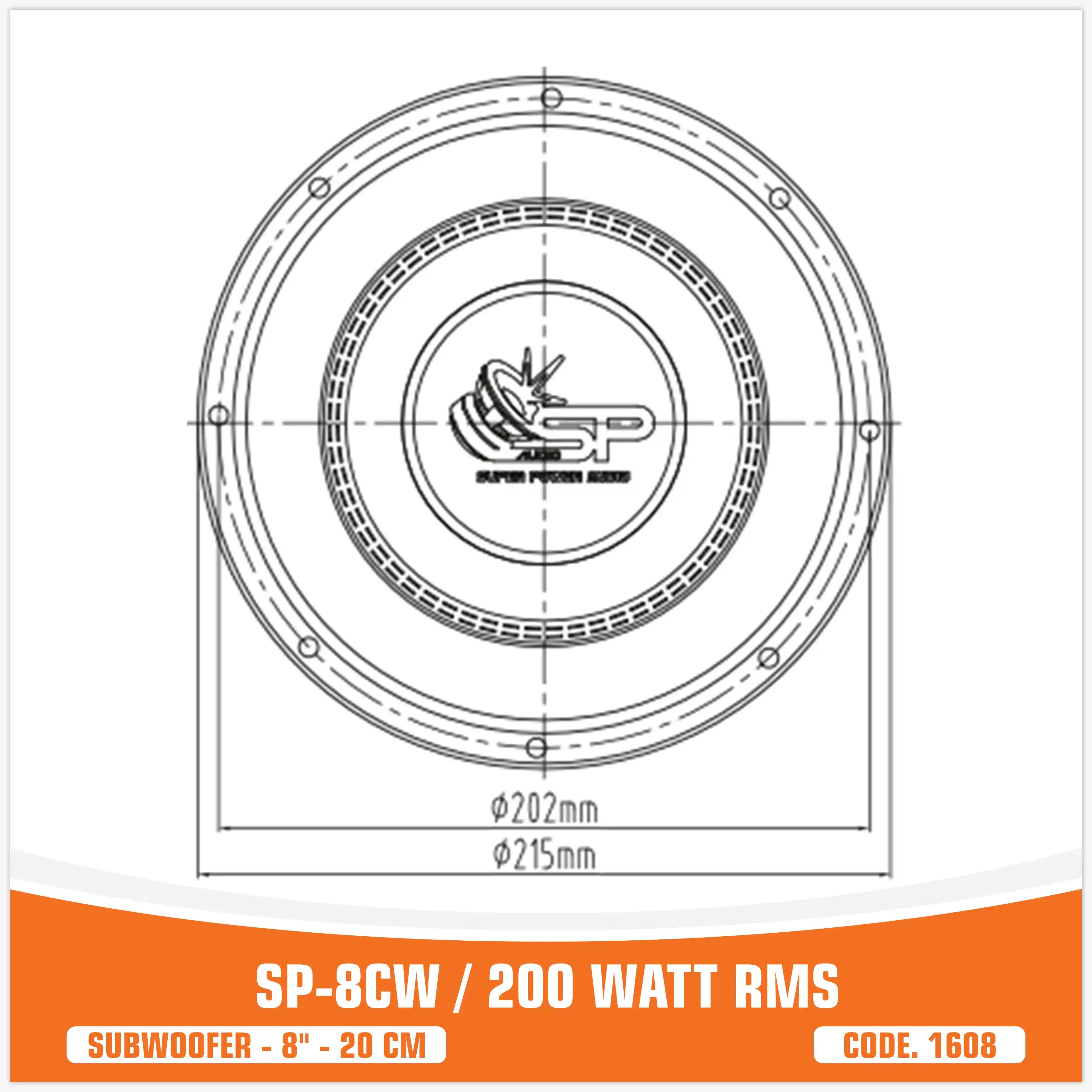

| Nominal diameter | 210 mm (8") |
| Rated impedance | 2+2 ohm (dual voice coil) |
| Rated power (RMS) | 200 W |
| Peak power (MAX) | 400 W |
| Sold as | Single unit |
| ACOUSTICS | |
| Sensitivity (1 W / 1 m) | 83 dB |
| Frequency range | 30 Hz – 1 kHz |
| MOTOR AND MATERIALS | |
| Voice coil diameter | 38.6 mm / 1.5" |
| Winding material | 200 °C copper (Cu) |
| Suspension | Wire, large “R” form |
| Cone | Black non-pressed paper |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Decide the impedance before you wire it. The two 2 ohm coils in parallel give 1 ohm, in series 4 ohm. Check that your amplifier is stable at the impedance you choose.
- Match the amplifier to 200 W RMS. Sizing on the 400 W PEAK figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid. Even an 8" cone loads the box: thick panels, braced and sealed, or the box will lose output and rattle. The product sheet does not give a recommended box volume: write to us and we will work it out with you.
- Size the power cable for the amplifier, with an inline fuse close to the battery and a ground point on bare metal.
Questions installers ask
spaudio@spaudio.it · +39 340 807 8778
