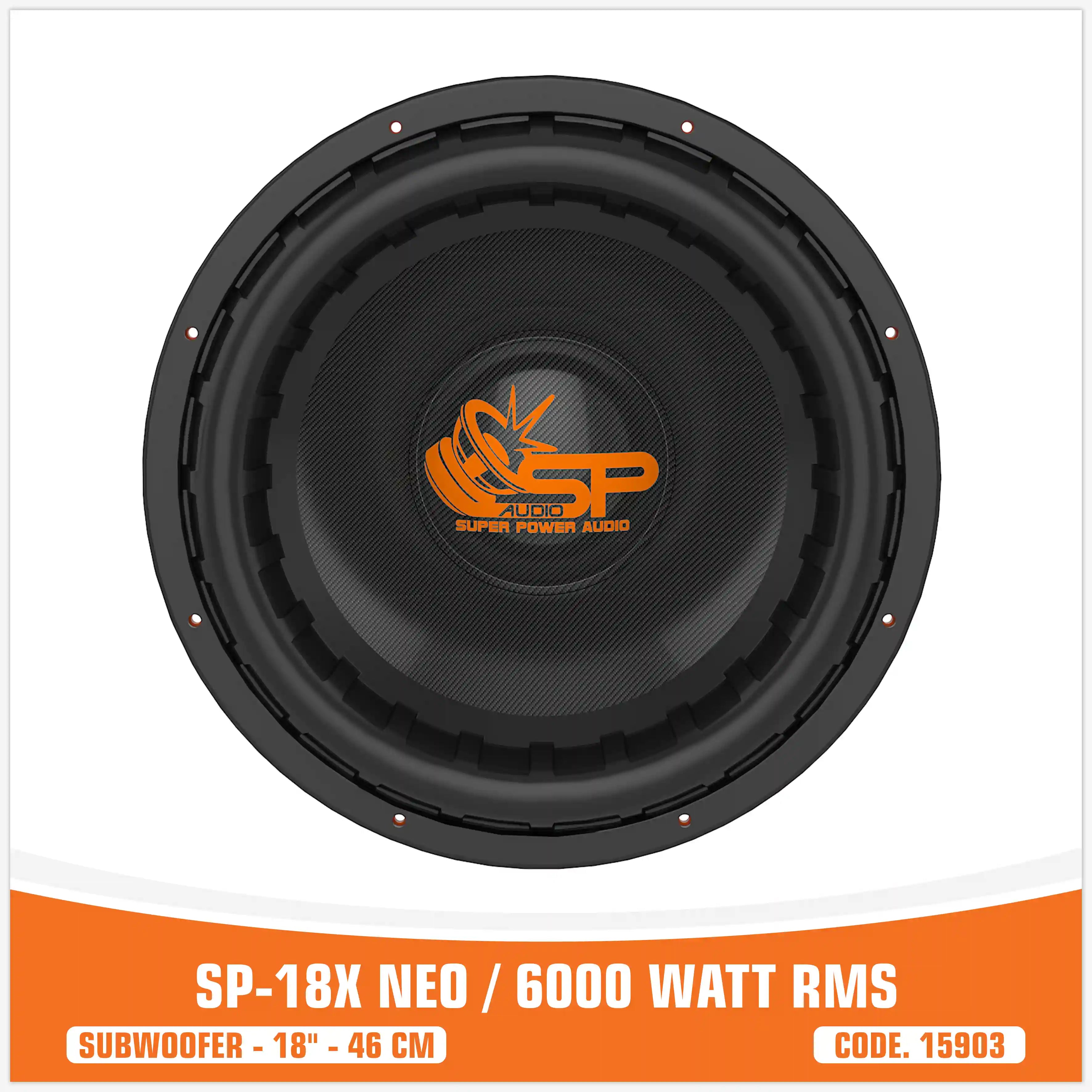

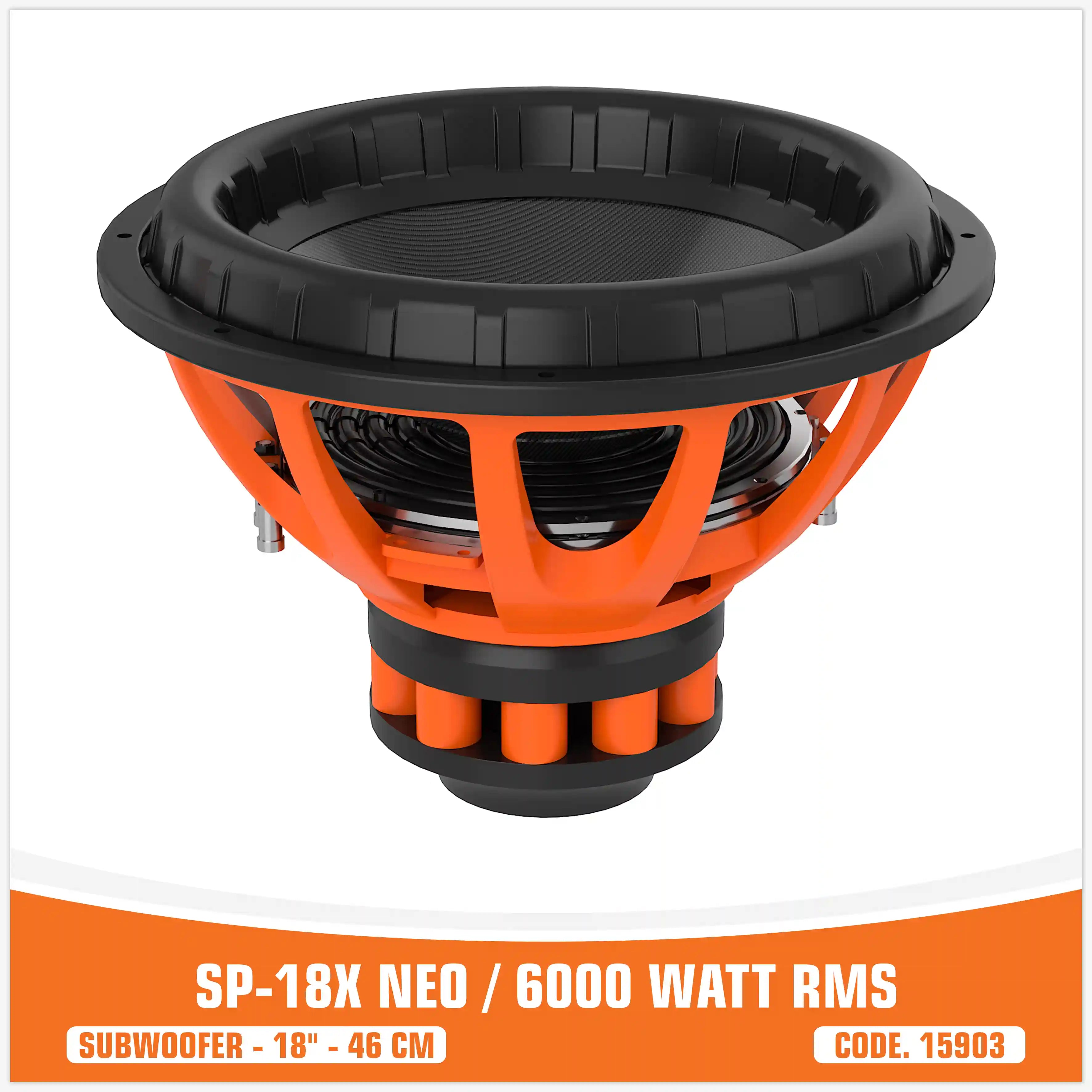

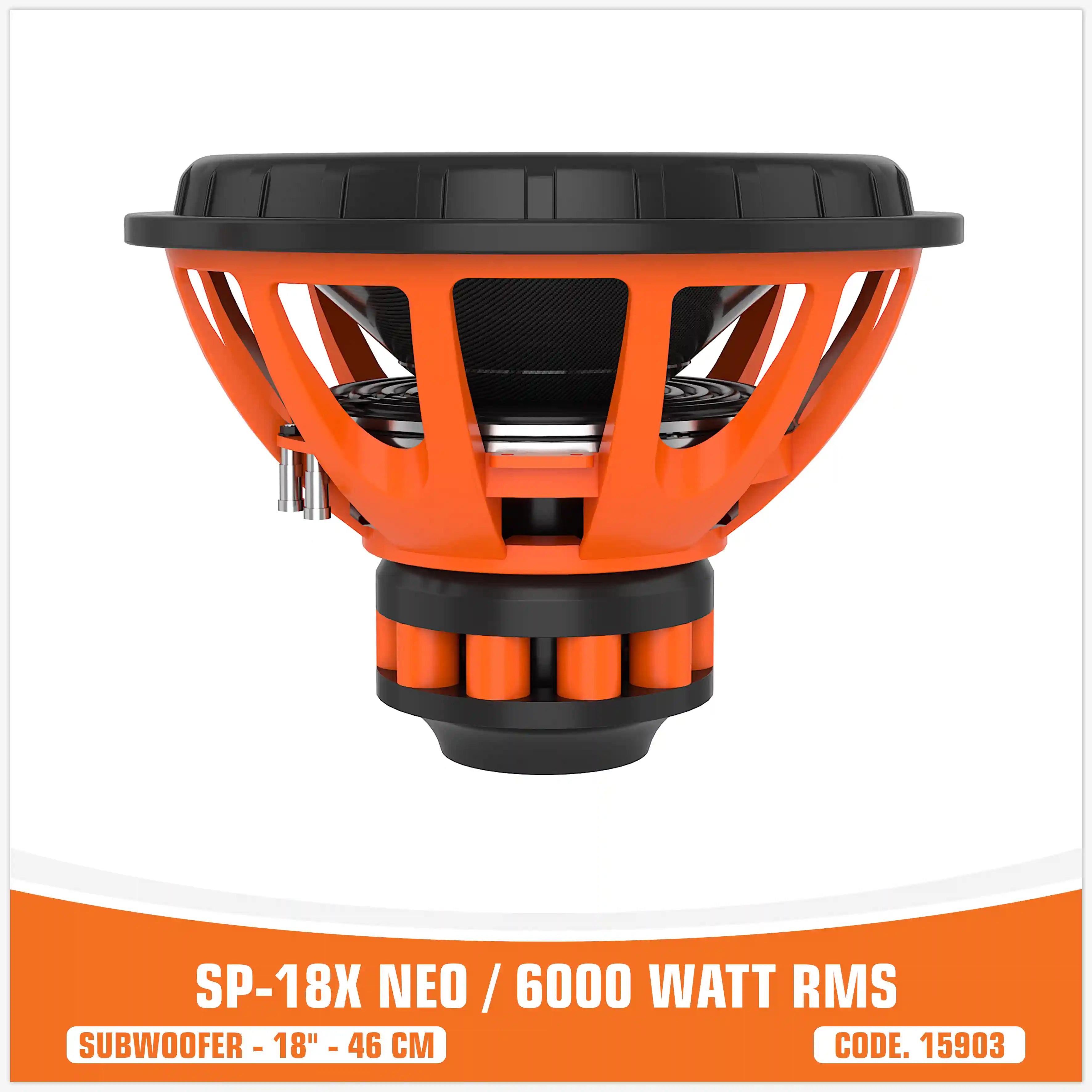

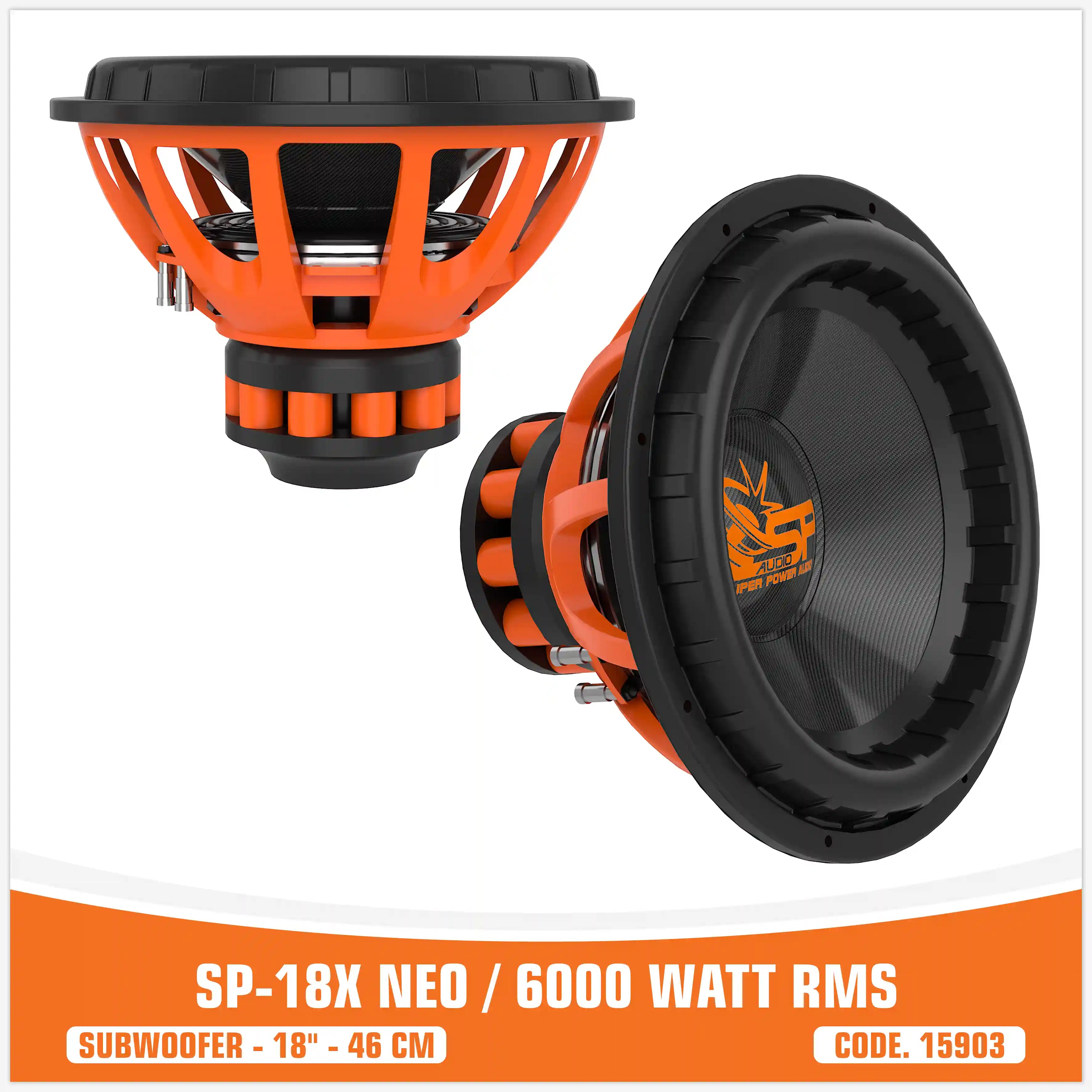

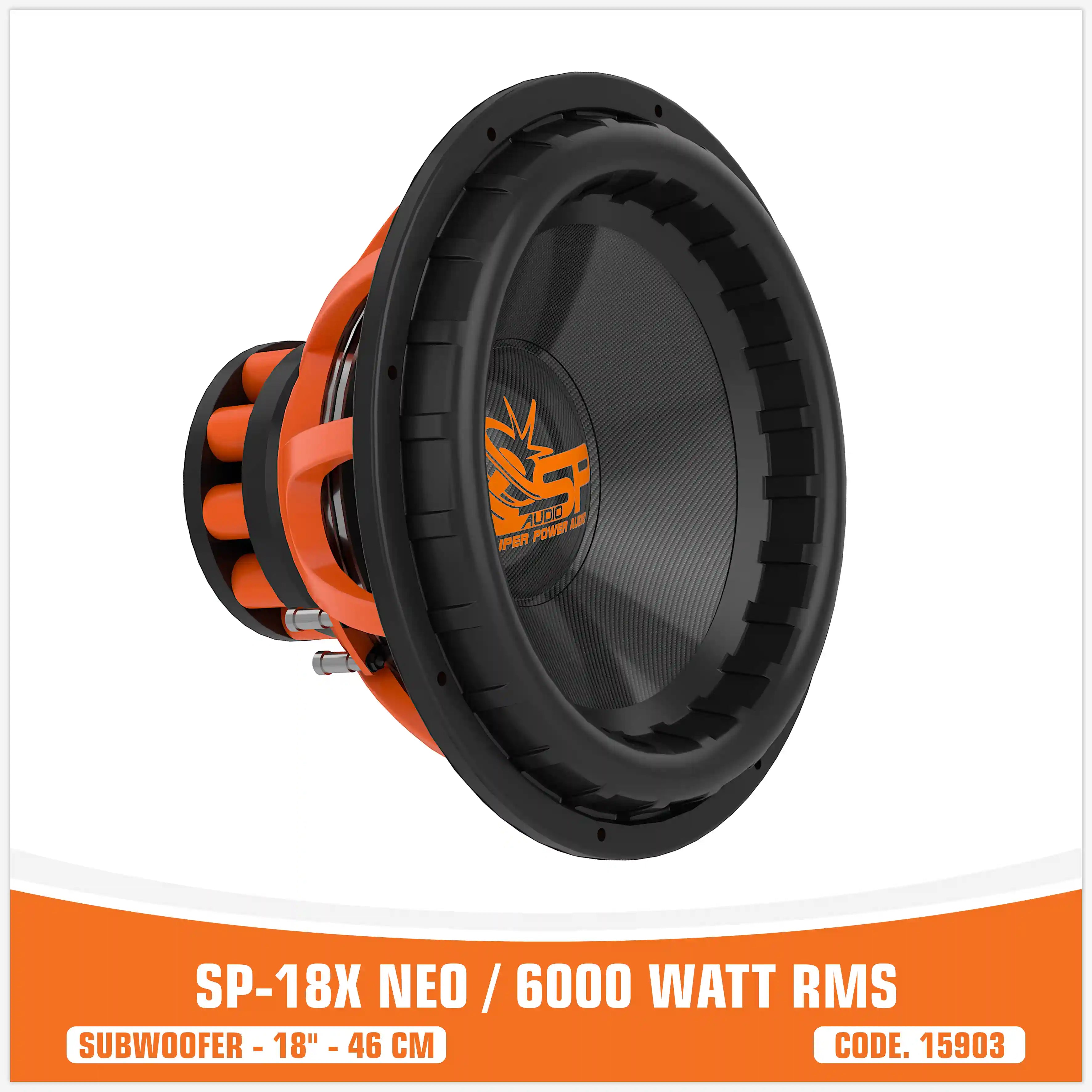

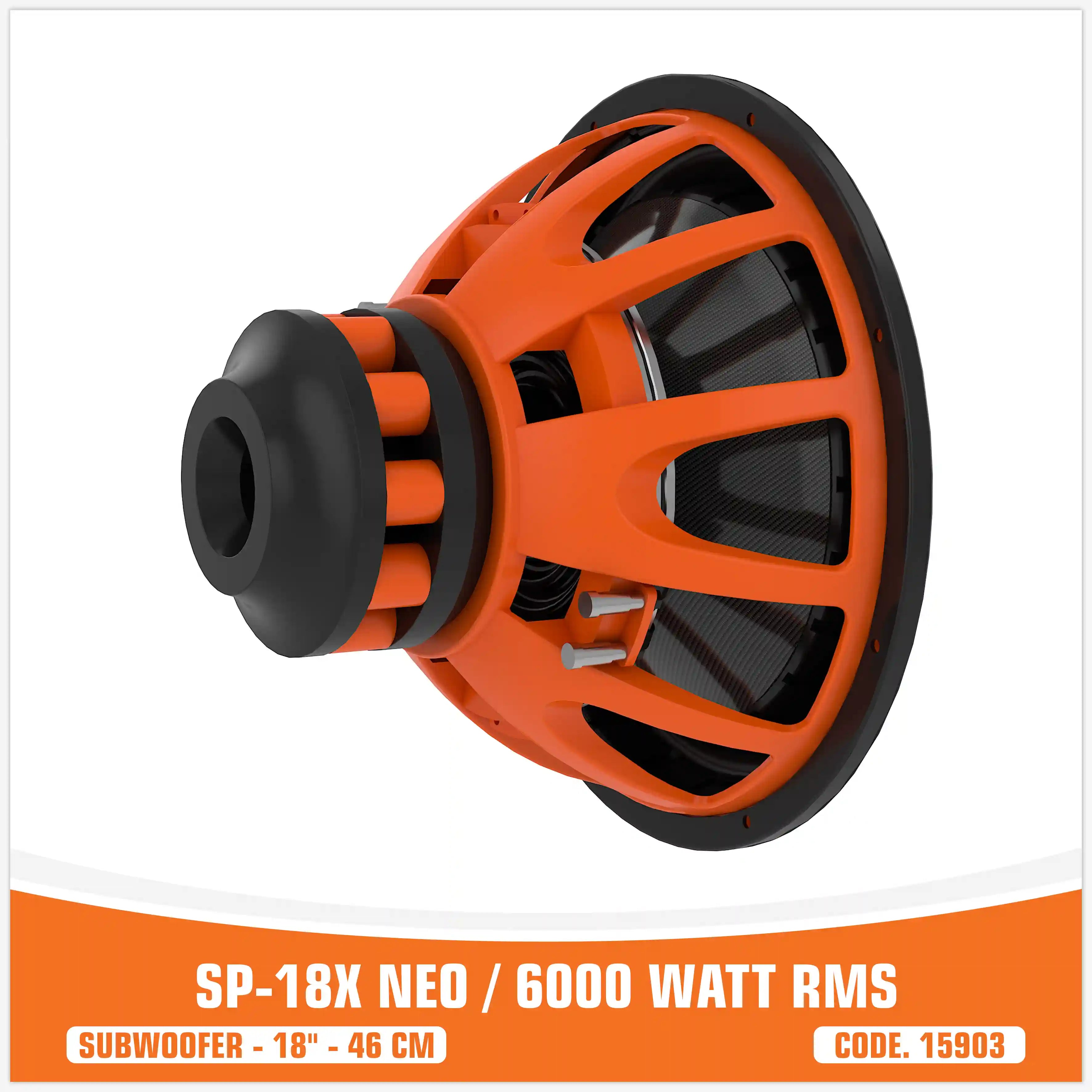

SP-18X NEO . 6000 WATT RMS (PRICE UNIT)

Sp18x NEO . 6000 WATT RMS

General Specifications

• Nominal Diameter: 18"

• Nominal Impedance: 2Ω/2Ω

• RMS Power Handling: 6000W

• Continuous Program Power: 12000W

• Sensitivity 1w/1m: 89dB

• Frequency Range: 34HZ-500HZ

• Voice Coil Diameter: 4 inch

• Winding Material: CCAW, 4 layer

• Former Material: Aluminum

• Winding Depth: 70mm

• Magnetic Gap Depth: 35mm

• Xmax: 17.5mm

• Surround Material: Carbon fiber / Surround: High-roll foam

• Magnet: N38H Neodymium

Parameters

• Nominal diameter: 18"

• Resonance Frequency (FS): 34,76

• DC Resistance (RE): 2Ω

• Mechanical Factor (QES): 0,58

• Electrical Factor (QMS): 6,18

• Total Factor (QTS): 0,53

• Compliance (CMS): 0,04

• Equivalent Cas Air Load (VAS): 75,75

• Effective Piston Area (SD): 0,11

• η(Eta Zero) (η0): 0,51

• BL Factor (BL): 19,71

• Effective Moving Mass (MMS): 523,46

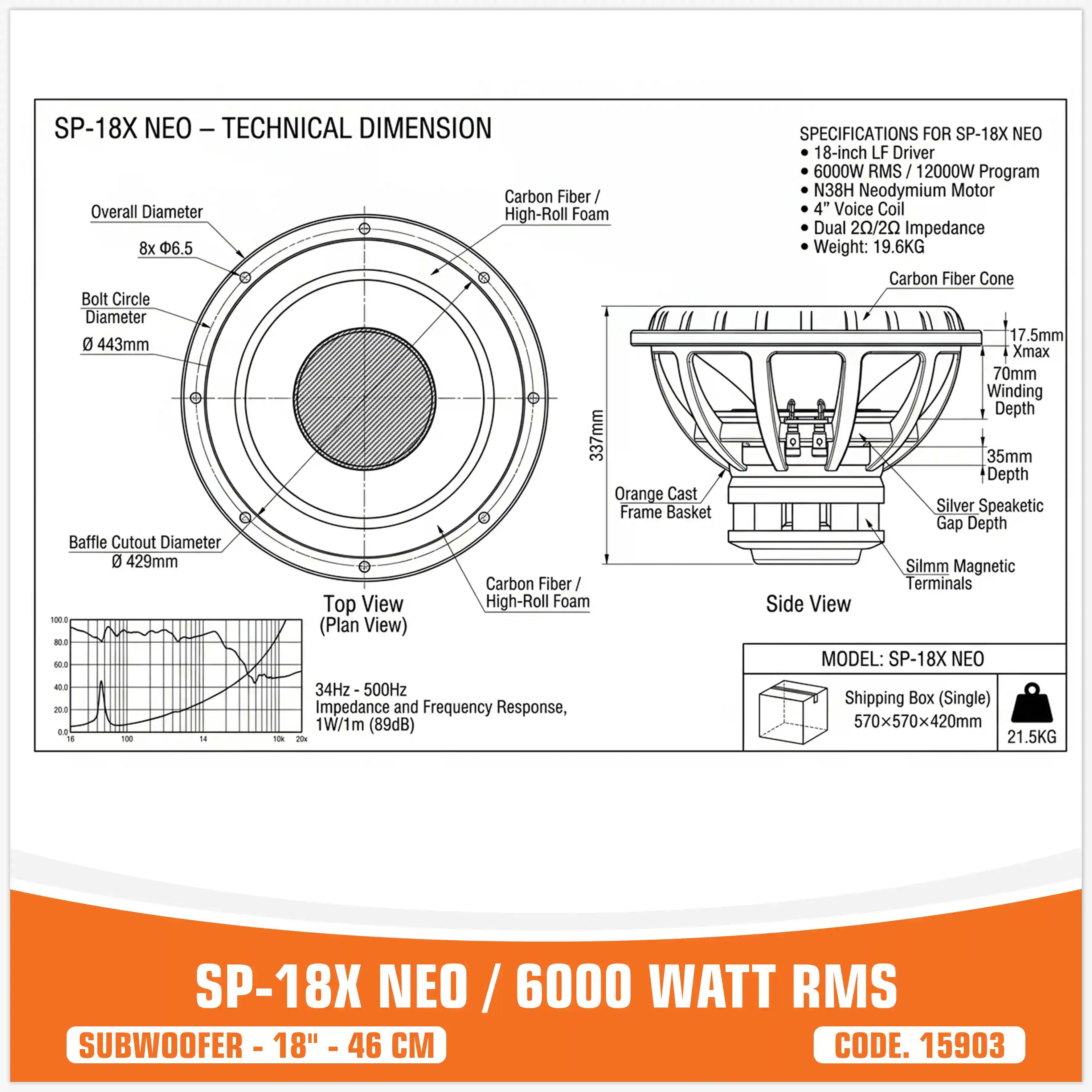

Mounting & Shipping Information

• Overall Diameter: 470mm

• Bolt Circle Diameter: 443-8--Φ6.5

• Baffle Cutout Diameter: 429mm

• Depth: 337mm

• Surround Design: U-shape

• Net Weight: 19.6KG

• Shipping Weight: 21.5KG

• Shipping Box (Single): 570×570×420mm
