SP-1200.4D - @1 ohm
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
4 × 1200 W RMS.
One amplifier, the whole system.
The biggest of the SP four-channel amplifiers: 1200 W RMS on every channel at 1 ohm. Two front and two rear speakers driven with power to spare, or two channels bridged onto a subwoofer while the other two keep the front stage.
Power, measured not promised
RMS @ 14.4 V · CONTINUOUS POWER, NOT BURST · PER CHANNEL · MINIMUM LOAD 1 Ω PER CHANNEL
Why this amplifier
Two front and two rear speakers, driven with real RMS power. One power run, one ground, one remote: less wiring in the car and less to go wrong.
Bridge two channels onto a subwoofer — 2 × 2400 W RMS at 2 ohm bridged — and keep the other two for the front speakers. A complete system with a single amplifier.
At this power level the battery, the alternator, the cable section and the fuses decide the result. Weak wiring means low voltage, and low voltage means protection.
Output short circuit, high and low supply voltage and thermal protection, with a temperature-driven fan. It works between 9 V and 16 V.

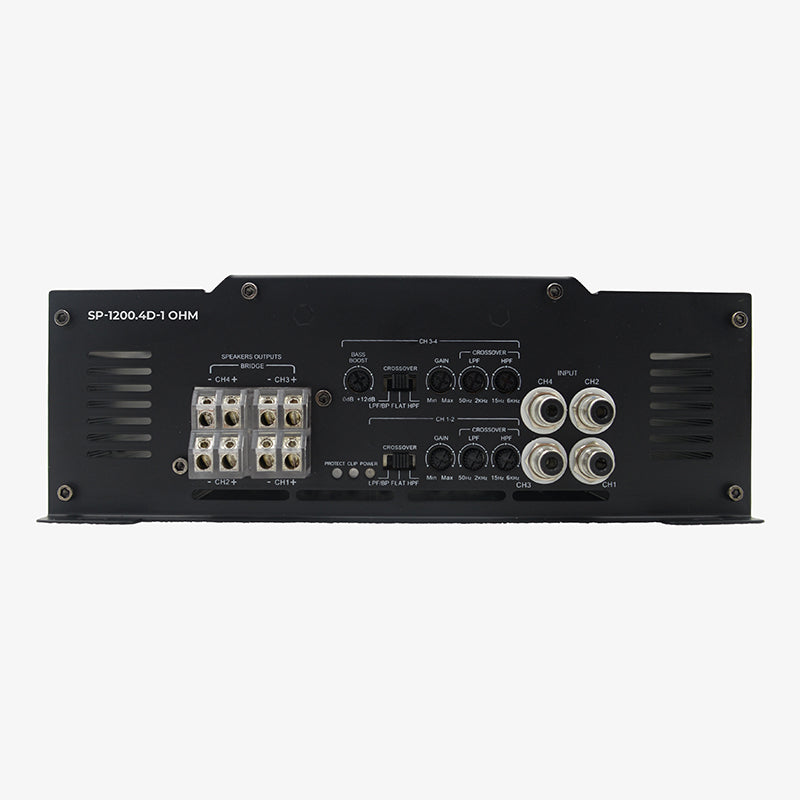

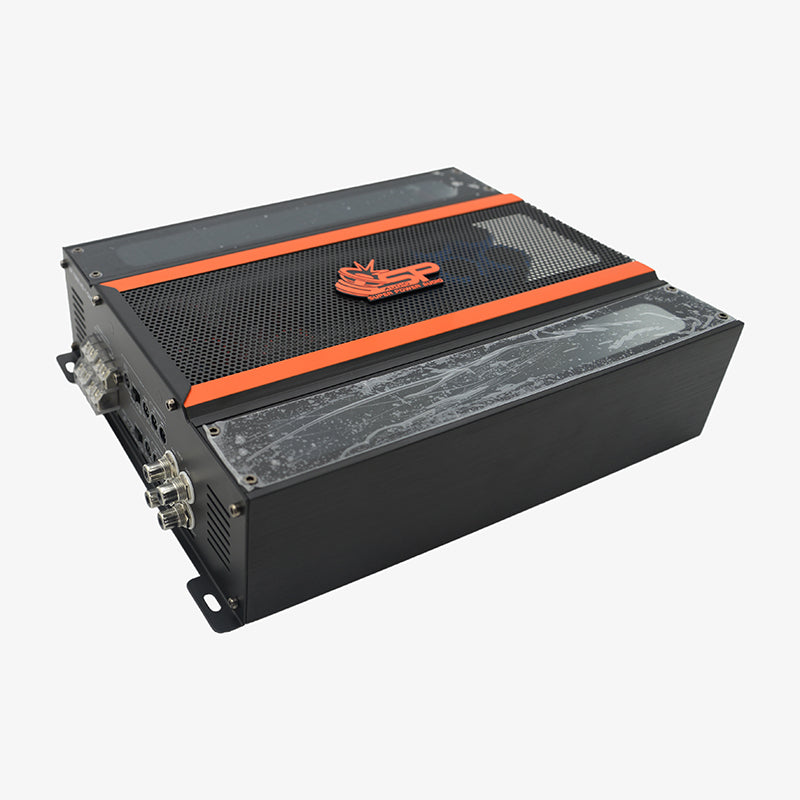

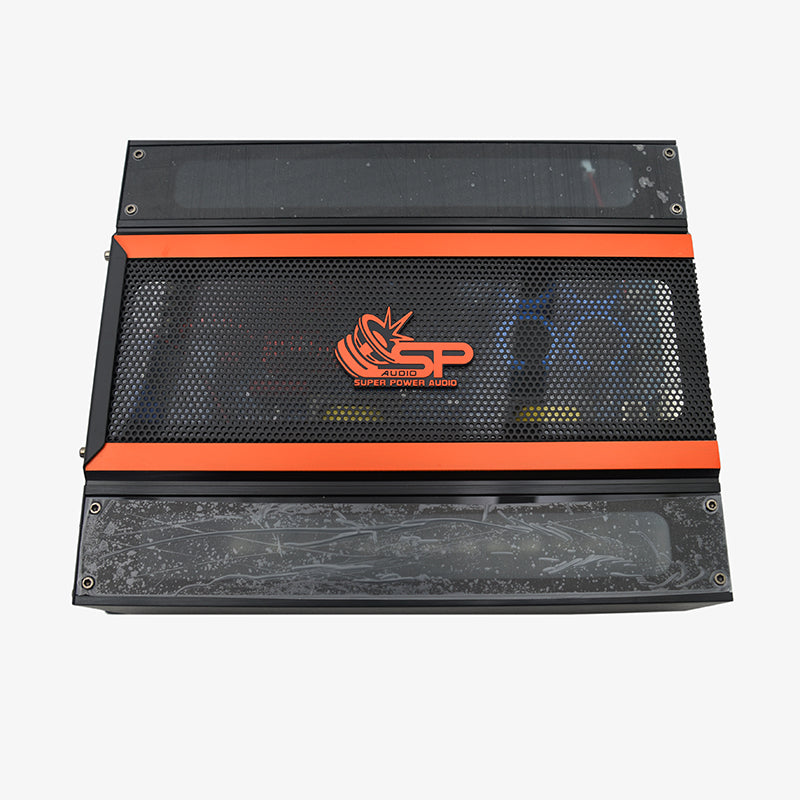

The amplifier, up close
The general SP Audio amplifier manual: wiring, loads and impedance, filters and gain calibration.
⇩ Download the manual (PDF)English · General SP Audio amplifier manual, not specific to this model
What you receive
The SP-1200.4D @1 ohm is sold as a single unit, packed for transport. Plan the speaker loads first: four channels at 1, 2 or 4 ohm, or two of them bridged onto a subwoofer.
In the box: amplifier · mounting hardware.
Not included: power and speaker cable, inline fuse holder and RCA cable — installation materials, chosen for your vehicle and your system.
Technical specifications
| POWER PER CHANNEL — RMS @ 14.4 V | |
|---|---|
| 4 ohm | 4 × 400 W |
| 2 ohm | 4 × 600 W |
| 1 ohm | 4 × 1200 W |
| Bridged, 2 ohm | 2 × 2400 W |
| Minimum load | 1 ohm per channel |
| POWER SUPPLY & PROTECTION | |
| Minimum supply voltage | 9 V |
| Maximum supply voltage | 16 V |
| Protections | Output short circuit, high supply voltage, low supply voltage, thermal |
| Thermal management | Smart Cooling System, temperature-driven fan |
| FILTERS & INPUTS | |
| Topology | Class D, 4 channels |
| Frequency response | 10 Hz – 20 kHz (3 dB) |
| S/N ratio | 100 dB |
| Input sensitivity | 200 mV |
| Input impedance | 56 kΩ |
| High-pass filter (HPF) | 15 Hz – 6 kHz |
| Low-pass filter (LPF) | 50 Hz – 2 kHz |
| Bass boost | 0 – 12 dB (50 Hz) |
| Sold as | Unit |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Inline main fuse within 20 cm of the battery, sized to the cable, and a ground point on bare metal. At this power level use a generous cable section on the battery run.
- Respect the minimum load: 1 ohm per channel. Bridged, do not go below 2 ohm. A lower impedance triggers the protection and, if repeated, damages the output stage.
- Set the filters before you set the gain. High-pass on the front and rear channels, low-pass on the bridged pair if it drives a subwoofer: it protects the speakers and cleans up the sound.
- 12 V systems only, negative ground, supply between 9 V and 16 V, with air around the amplifier for the fan. Professional installation is recommended: damage caused by improper installation is not covered by warranty.
