SP-9000.1D - @1 ohm
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
9000 watt RMS.
At 1 ohm.
One channel, built for the loads that competition subwoofers present. The SP-9000.1D @1 ohm delivers its full rated power down to 1 ohm — and asks for an electrical system built to feed it: battery, alternator, cable section and fuses.
Power, measured not promised
RMS @ 14.4 V · CONTINUOUS POWER, NOT BURST · MINIMUM LOAD 1 Ω · THIS IS THE @1 OHM VERSION
Why this amplifier
A single output stage delivers 9000 W RMS into 1 ohm. No bridging, no two channels sharing a power supply: everything goes to the subwoofer.
Power like this is won or lost at the battery. Big battery, a strong alternator, generous cable section and correctly sized fuses are part of the amplifier, not accessories.
Temperature-driven fan and a thermal management system that ramps airflow only when it is needed — quiet on the street, ready when the level goes up.
Output short circuit, high and low supply voltage and thermal protection. It works between 9 V and 16 V and defends itself instead of dying quietly.

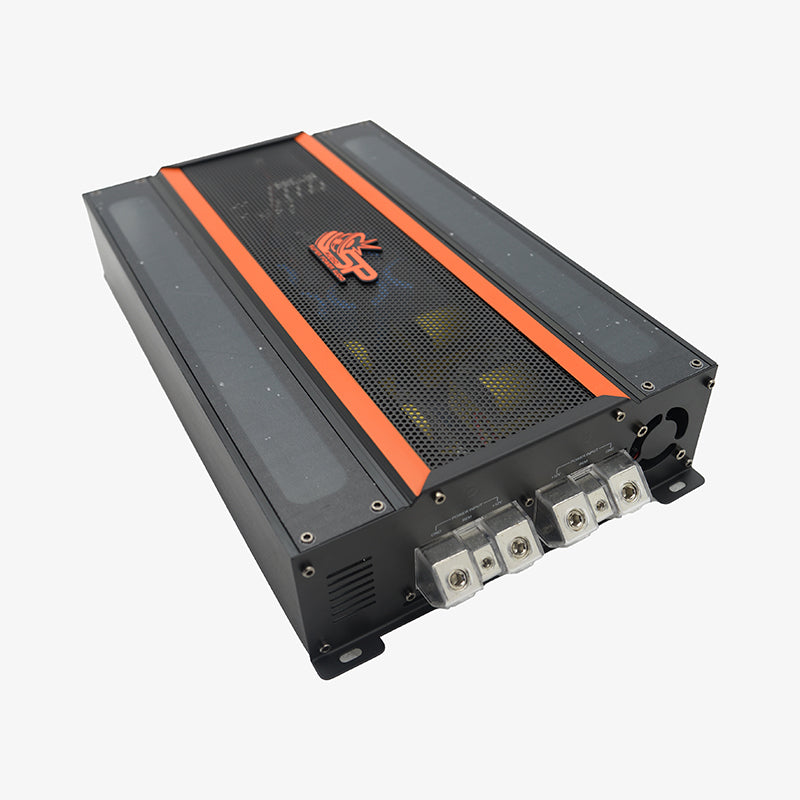

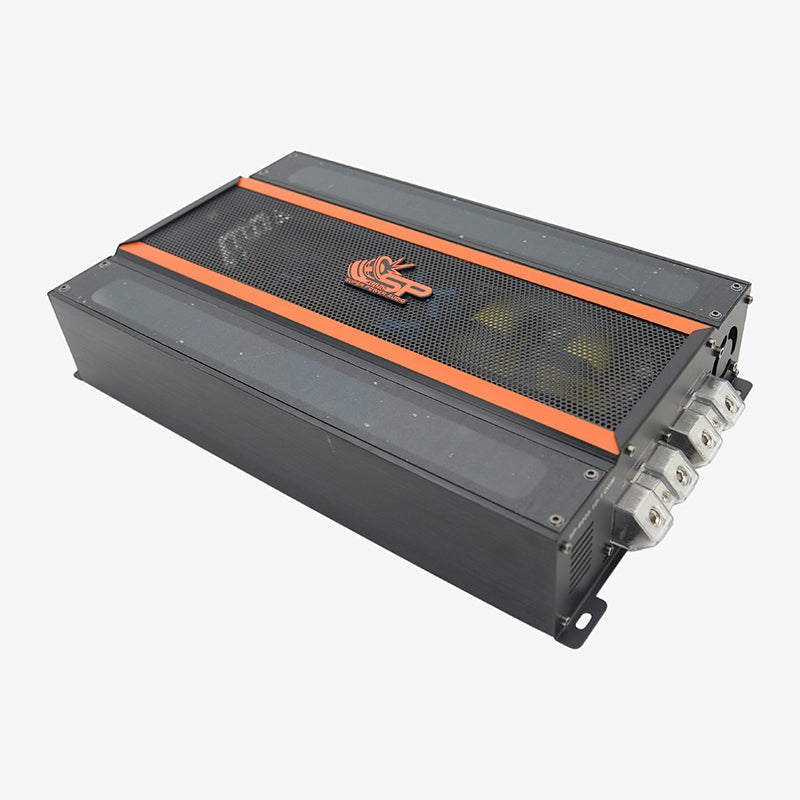

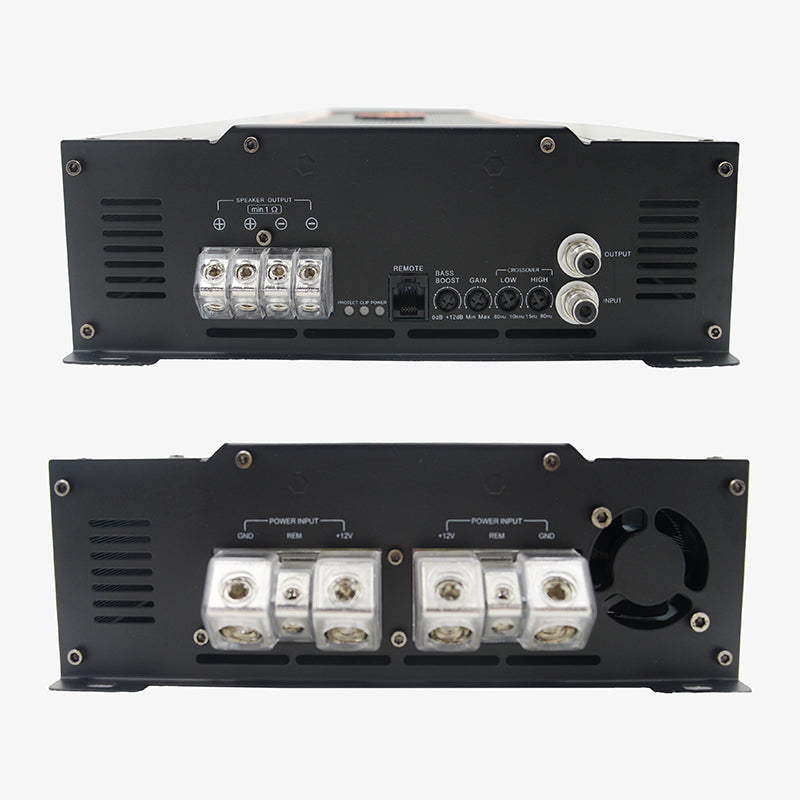

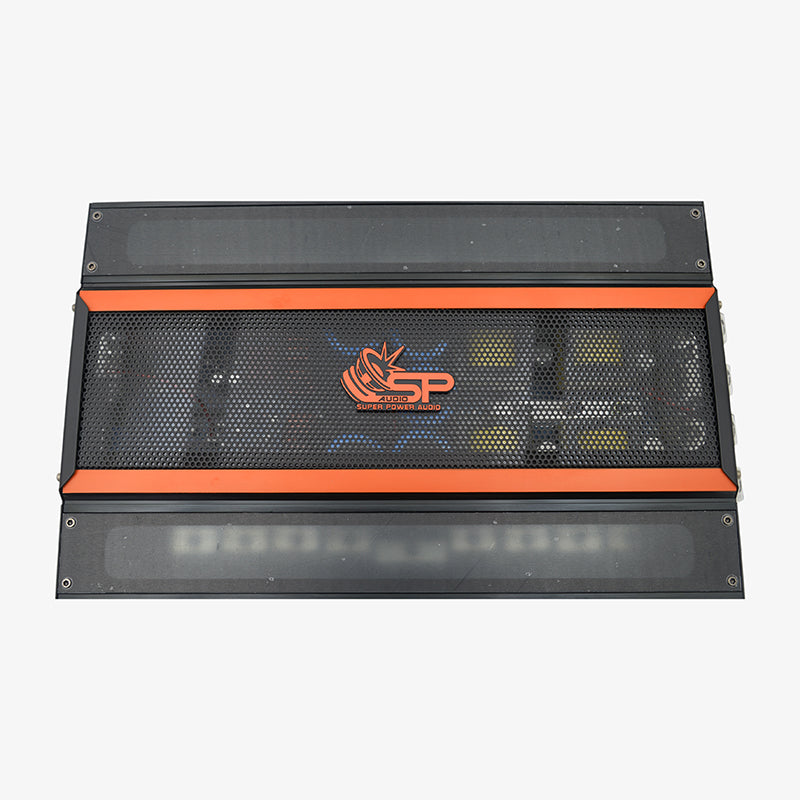

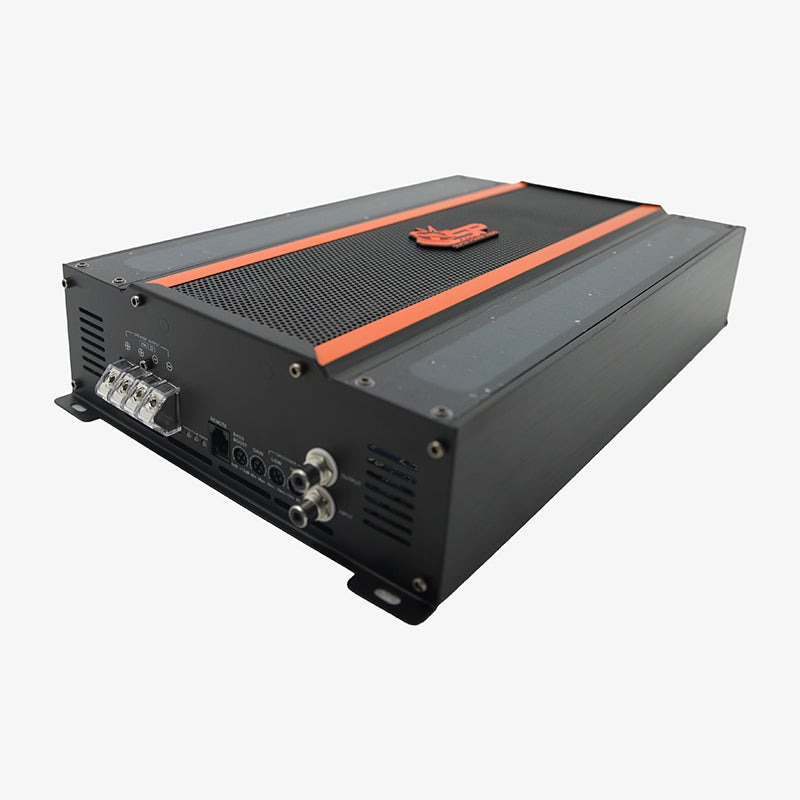

The amplifier, up close
The general SP Audio amplifier manual: wiring, loads and impedance, filters and gain calibration.
⇩ Download the manual (PDF)English · General SP Audio amplifier manual, not specific to this model
What you receive
The SP-9000.1D @1 ohm is sold as a single unit, packed for transport. What decides the result is what you put around it: battery, alternator, cable section, fuses and the subwoofer load.
In the box: amplifier · mounting hardware.
Not included: power and speaker cable, inline fuse holder and RCA cable — installation materials, chosen for your vehicle and your system.
Technical specifications
| POWER OUTPUT — RMS @ 14.4 V | |
|---|---|
| Mono 4 ohm | 1 × 2300 W |
| Mono 2 ohm | 1 × 4500 W |
| Mono 1 ohm | 1 × 9000 W |
| Minimum load | 1 ohm |
| POWER SUPPLY & PROTECTION | |
| Minimum supply voltage | 9 V |
| Maximum supply voltage | 16 V |
| Protections | Output short circuit, high supply voltage, low supply voltage, thermal |
| Thermal management | Smart Cooling System, temperature-driven fan |
| FILTERS & INPUTS | |
| Topology | Class D, mono, 1 channel |
| Frequency response | 10 Hz – 20 kHz (3 dB) |
| S/N ratio | 100 dB |
| Input sensitivity | 200 mV |
| Input impedance | 56 kΩ |
| High-pass filter (HPF) | 15 – 80 Hz |
| Low-pass filter (LPF) | 80 Hz – 10 kHz |
| Bass boost | 0 – 12 dB (50 Hz) |
| DIMENSIONS | |

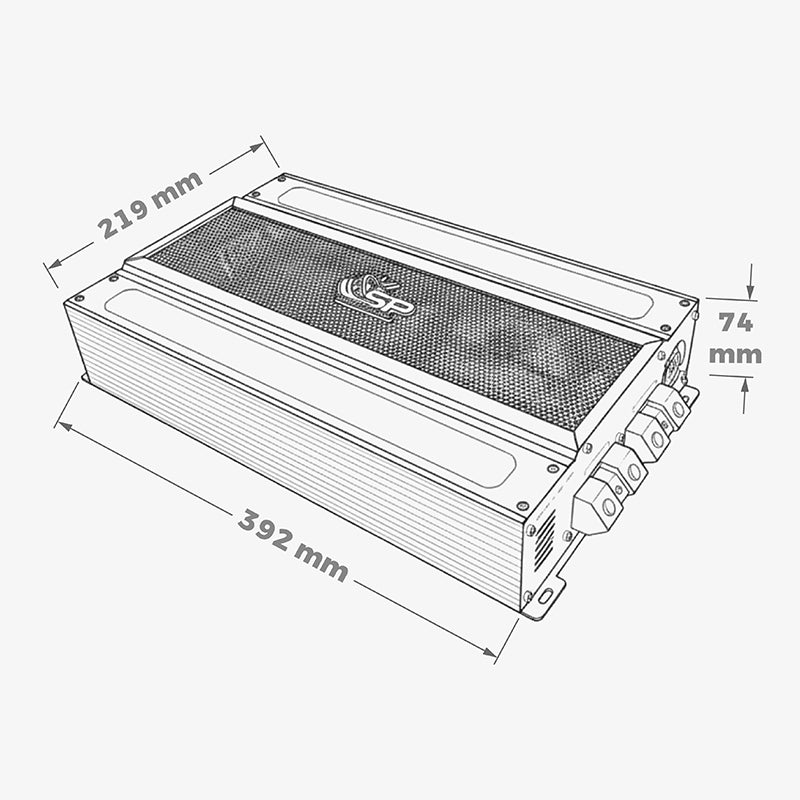

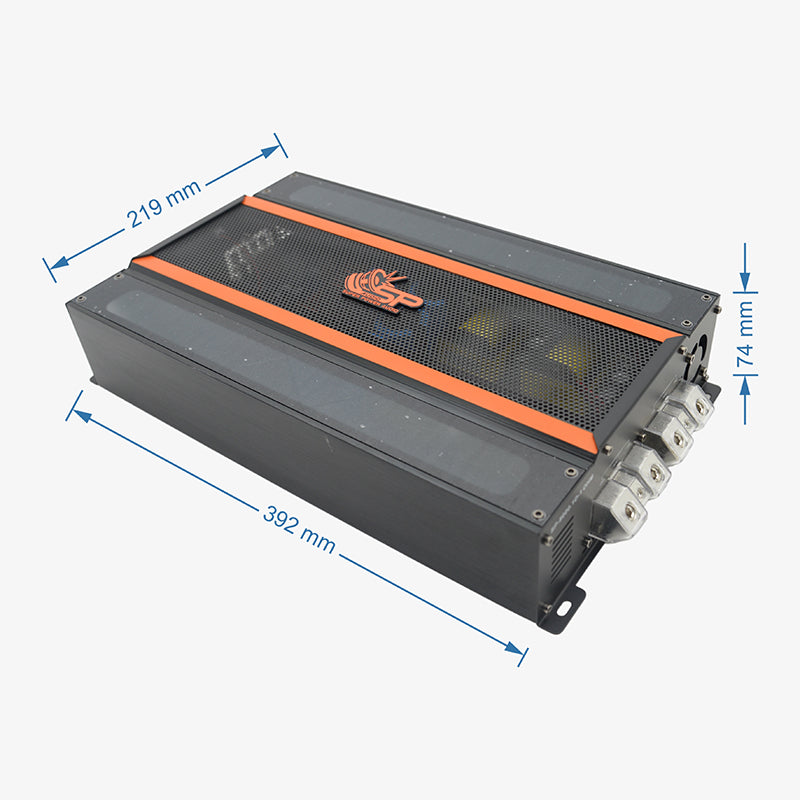

| Dimensions L × W × H | 392 × 219 × 74 mm |
| Sold as | Unit |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Build the electrical system first. A healthy battery, a strong alternator and a generous cable section are what let this amplifier reach its rated power. Weak wiring means low voltage, and low voltage means protection.
- Inline main fuse within 20 cm of the battery, sized to the cable, plus a ground point on bare metal. Use 0 AWG for the battery run.
- Respect the minimum load: 1 ohm. A lower impedance triggers the protection and, if repeated, damages the output stage.
- Keep the supply between 9 V and 16 V, 12 V negative ground, and leave air around the amplifier so the fan can work. Professional installation is recommended: damage caused by improper installation is not covered by warranty.
