SP-15X TiTANiUM . 8000 WATT RMS (PRICE UNIT)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
8000 watt RMS.
56 kg of motor.
A 15-inch competition subwoofer built around a 125 mm four-layer CCAW voice coil, a quad-stack ferrite motor 280 mm across and a pure carbon fibre cone. 8000 W RMS continuous, 26.75 Tm of force factor. Not a subwoofer you fit by accident.

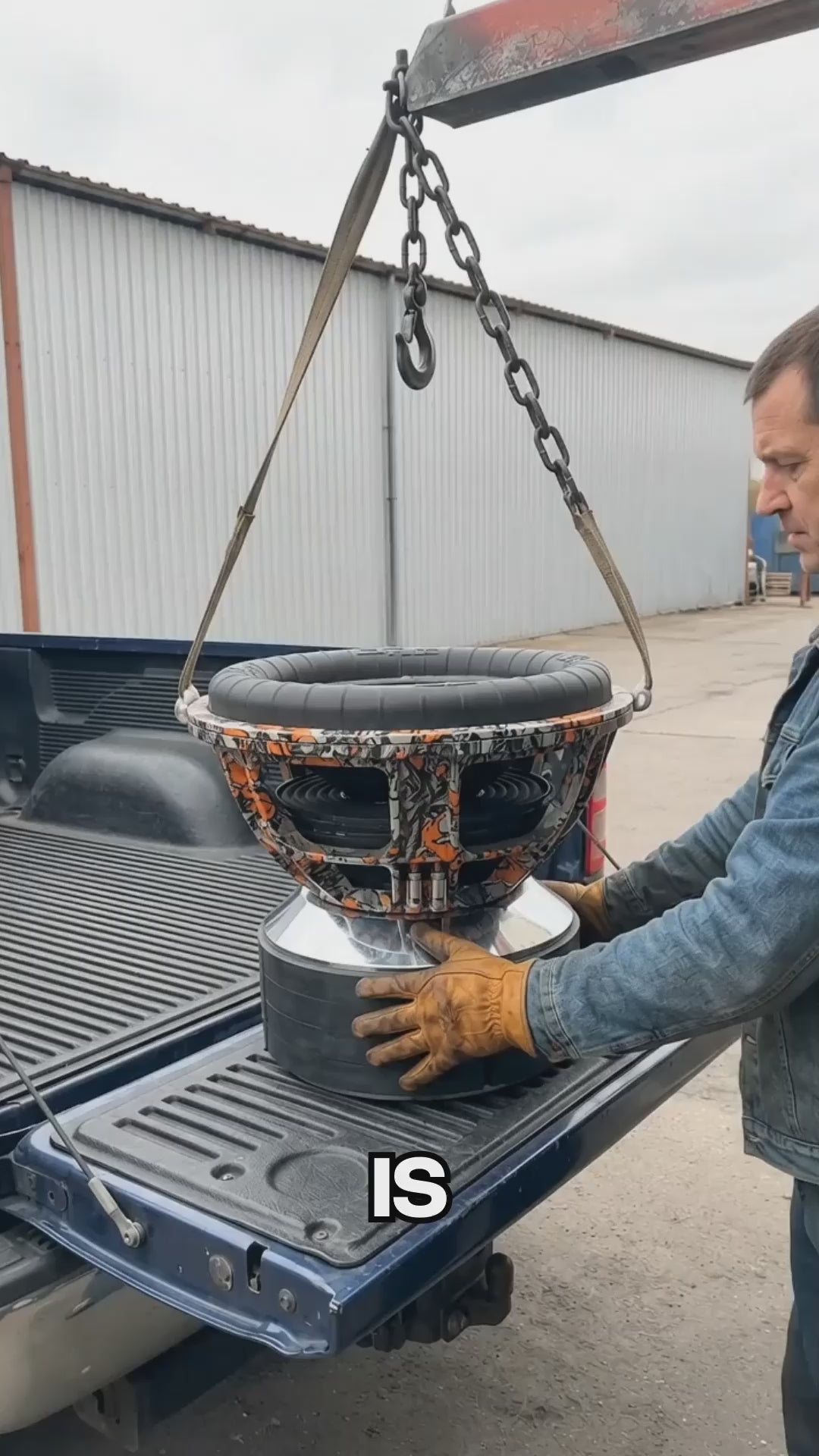

Watch it
▶ NOTHING IS DOWNLOADED UNTIL YOU PRESS PLAY
Power, measured not promised
MANUFACTURER’S LABORATORY DATA · 8000 W IS THE CONTINUOUS RMS FIGURE · 16000 W IS A BURST FIGURE AND IS NOT RMS
Why this subwoofer
5 inches of CCAW winding on a 155 mm former, 65 mm of winding height, DCR 1.8 + 1.8 ohm on the two coils. That is the surface that turns 8000 W RMS into movement instead of heat.
Pure carbon fibre cone with a ribbed high-roll surround and a 3D woven carbon fibre dust cap. Rigid where it must not flex, free where it must travel.
Four 25 mm Y35 high-energy ferrite rings, a 280 × 20 mm T-yoke and a 35 mm chrome-plated top plate: 26.75 Tm of Bl and 56 kg on the scale.
6-layer progressive Nomex spider 250 mm across with heavy lead wires, anti-torsion die-cast aluminium basket, 8 × M8 mounting points. Every part is sized for the power.
Wiring, enclosure design, break-in and full specifications.
⇩ Download the manual (PDF)The box makes the bass
These are the manufacturer’s enclosure figures for the SP-15X TiTANiUM in a bass-reflex (ported) box. Build it to these numbers and the driver works as it was designed to work.
| EUROPEAN SPECS (METRIC) | |
|---|---|
| Net internal volume | 110 Liters |
| Port area | 320 cm² |
| Port length | 60 cm |
| Tuning frequency (Fb) | 34 Hz |
| AMERICAN SPECS (IMPERIAL) | |
| Net internal volume | 3.88 cu. ft. |
| Port area | 49.6 sq. in. |
| Port length | 23.6 inches |
| Tuning frequency (Fb) | 34 Hz |
Technical specifications
| POWER HANDLING | |
|---|---|
| Power handling | 8000 W RMS / 16000 W burst |
| Size | 15" / 38 cm |
| Description | Extreme competition subwoofer for SPL and extreme low-frequency applications |
| THIELE-SMALL (T/S) PARAMETERS | |
| Fs | 36.70 Hz |
| Bl | 26.75 Tm |
| Qms | 3.341 |
| Qes | 0.595 |
| Qts | 0.505 |
| Vas | 31.98 L |
| Mms | 595.96 g |
| Sd | 844.9 cm² |
| Cms | 31.55 μM/N |
| SPLo | 87.1 dB (1 W / 1 m) |
| MOTOR, COIL & MOVING ASSEMBLY | |
| Voice coil | 5" / 125 mm, 4-layer CCAW · ID 125 mm, OD 133 mm |
| Voice coil DCR | 1.8 + 1.8 ohm |
| Former / winding height | 155 mm / 65 mm |
| Magnet structure | Quad-stack Y35 high-energy ferrite, OD 280 mm, 4 × 25 mm rings |
| Top plate (washer) | OD 280 mm × ID 133.5 mm × H 35 mm, high-permeability steel, chrome plated |
| T-yoke & pole piece | Base 280 × 20 mm, pole OD 122.5 mm × H 168 mm, forged low-carbon steel, chrome plated |
| Spider pack | OD 250 mm, 6-layer progressive Nomex with heavy lead wires |
| Cone assembly | Pure carbon fibre cone, ribbed high-roll surround |
| Dust cap | 3D woven carbon fibre, full-cover structural cap |
| Basket frame | Anti-torsion custom die-cast aluminium |
| MOUNTING & DIMENSIONS | |
| Mounting cutout diameter (A) | 353 mm (13.90 in) |
| Screw pitch circle diameter (PCD) | ~370 mm (14.57 in) |
| Total height (C) | ~260 mm (10.24 in) |
| Mounting depth (D) | ~255 mm (10.04 in) |
| Motor diameter (F) | 280 mm (11.02 in) |
| Motor depth (E) | ~155 mm (6.10 in) |
| Mounting hardware | 8 × M8 screws |
| WEIGHT | |
| Net weight | 56.0 kg (123.5 lbs) |
| Gross weight, crated | 59.0 kg (130.0 lbs) |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED AS SUCH
Complete the system
Before you install it
- Two people to install it. The driver weighs 56 kg net: a 2-technician installation is required, and the baffle has to carry that weight for the life of the car.
- Build the box in 25 mm minimum. Birch ply or MDF, 25 mm (1") minimum, with mandatory internal bracing. A double or triple baffle, 50 mm (2") or more, under the driver.
- Fix it with M8 or M10 and T-nuts. Eight mounting points, machine screws into T-nuts — never wood screws into the baffle edge.
- Break it in: 20 hours or more at moderate volume before any competition run. The suspension has to settle before it sees full power.
- Feed it properly. 8000 W RMS needs 0 GA power and ground, an inline fuse within 20 cm of the battery sized to the cable, and a charging system to match.
Questions installers ask
