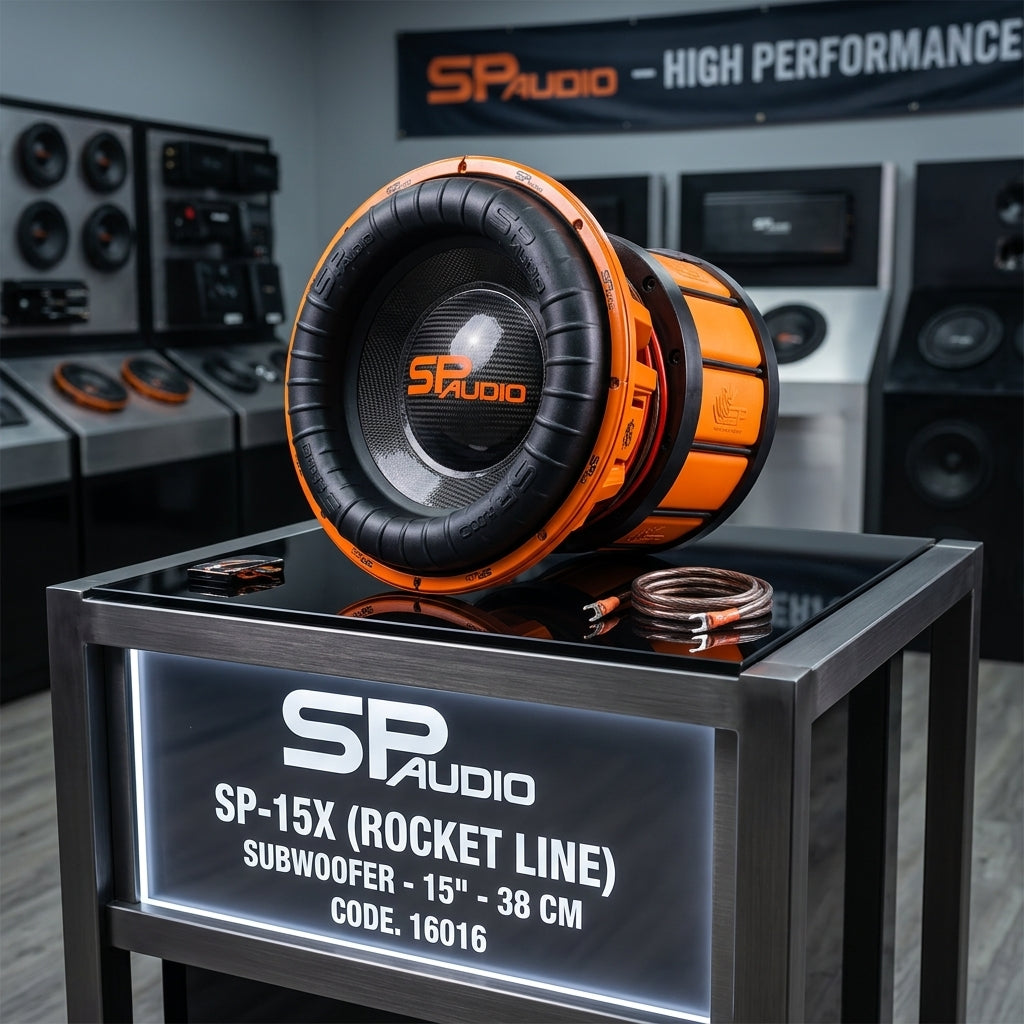

SP-15X (ROCKET LINE SUBWOOFER) 15"/38CM - 24000 WATT (UNIT PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
7000 watt RMS.
24000 watt peak.
A 15"/38 cm subwoofer built for Bass Wars: 100 mm (4 inch) voice coil in a 4-layer configuration on a vented former, 1+1+1+1 ohm coils and 4 ohm rated impedance, 7000 W RMS continuous over 24h competitions and 24000 W peak, 86 dB SPL sensitivity, 25–300 Hz. Progressive double-layer spiders, non-pressed paper cone with cotton fibre, 203.6×5 Oz Y35 ferrite motor, push connectors up to 12 AWG, 80 kg per unit. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE 24000 W FIGURE IS A SHORT-TERM PEAK VALUE: SIZE THE AMPLIFIER ON THE 7000 W RMS
Why this subwoofer
Not a burst figure: 7000 W RMS is the power the voice coil handles continuously, tested on 24h competitions, with 24000 W of peak headroom on top.
4 inch of coil wound in a 4-layer configuration on a former with venting holes, in 280 °C aluminium wire: heat leaves the motor instead of staying inside it.
Rated impedance 4 ohm with four 1 ohm coils: you choose how to wire them to match your amplifier instead of the other way round.

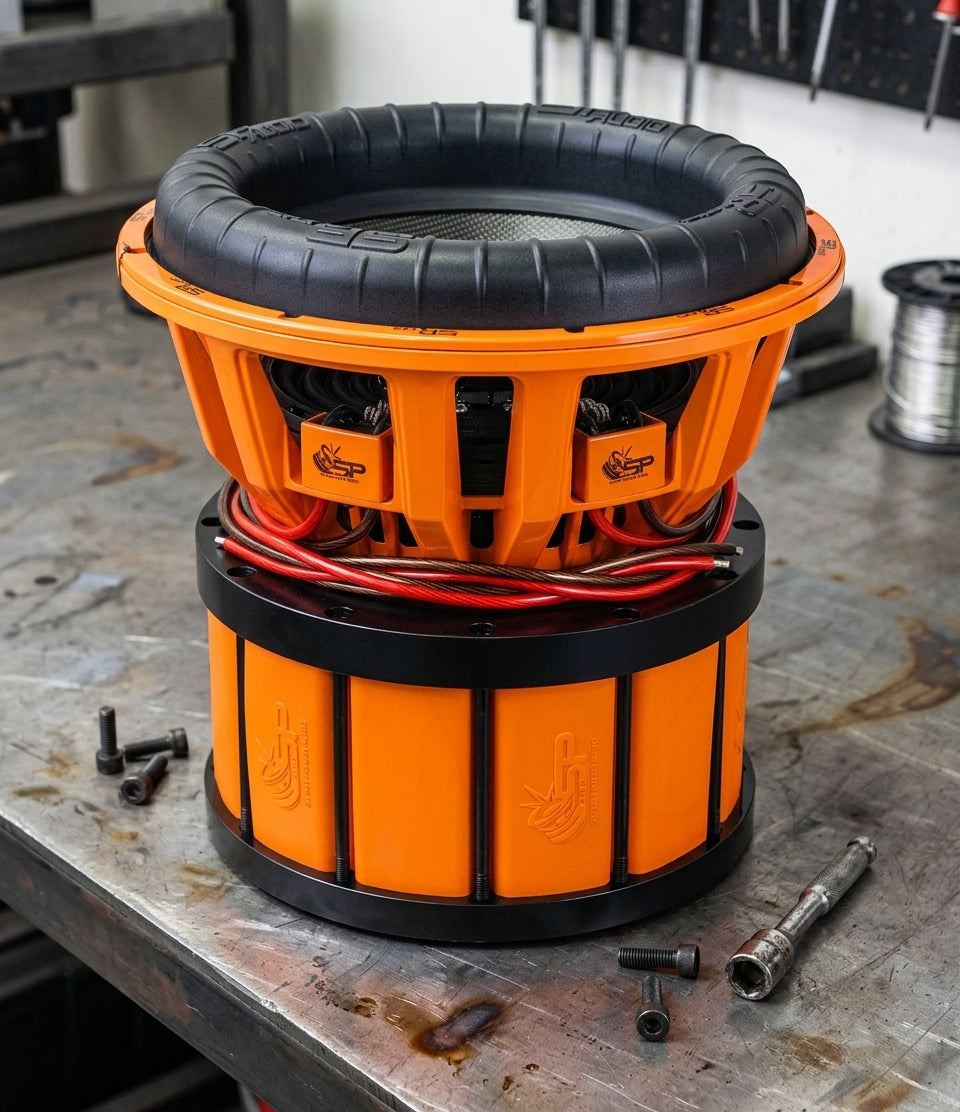

Progressive double-layer spiders, oversized lead wires, a basket designed for thermal dissipation and mechanical strength, and a massive ferrite motor: Xmax 25 mm, Bl 48.8 TM, 80 kg on the scale.
Look closer
Wiring of the four voice coils, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · Google Drive
What you receive
- One SP-15X ROCKET LINE subwoofer — the price is for a single unit.
- The full user manual in PDF, linked above, with the wiring diagram of the four voice coils.
- Invoice from an Italian company, shipping from our warehouse in Italy.
- Free technical support from Italy before and after the installation.
Technical specifications
| SUBWOOFER — SPECIFICATIONS | |
|---|---|
| POWER AND LOAD | |
| Nominal diameter | 380 mm (15") |
| Rated impedance | 4 ohm |
| Minimum impedance | 1+1+1+1 ohm |
| Rated power (RMS) | 7000 W (24h competitions) |
| Peak power (MAX) | 24000 W |
| Sold as | Single unit |
| ACOUSTICS | |
| Sensitivity (1 W / 1 m) | 86 dB SPL |
| Frequency range | 25–300 Hz |
| MOTOR AND MATERIALS | |
| Voice coil diameter | 100 mm (4 inch), 4 layers, vented former |
| Winding material | 280 °C aluminium wire |
| Magnet | 203.6×5 Oz Y35 ferrite |
| Suspension | Large “R” form, progressive double-layer spiders |
| Cone | Compressed paper + fibreglass |
| Connectors | Push connectors up to 12 AWG |
| Weight of one subwoofer | 80 kg (176.37 lb) |
| THIELE-SMALL PARAMETERS | |
| Fs | 33 Hz |
| Qts | 0.27 |
| Qms | 2.70 |
| Qes | 0.30 |
| Vas | 21.8 L |
| Re | 4 ohm |
| Xmax | 25 mm |
| Mms | 876 g |
| Cms | 0.03 mm/N |
| Bl | 48.8 TM |
| Sd | 754.77 cm² |
| SPL | 86.0 dB |
| RECOMMENDED VENTED BOX | |
| Volume | 140 L |
| Tuning frequency | 28 Hz |
| Vent diameter | Ø 100×100 mm |
| Vent length | 44 cm |
| Shape | Rectangle |
| End correction | Two flanged ends |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Decide the impedance before you wire it. Rated impedance is 4 ohm, with four 1 ohm coils. Check that your amplifier is stable at the impedance you choose.
- Match the amplifier to 7000 W RMS. Sizing on the 24000 W peak figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid. The product sheet gives a vented box of 140 L tuned to 28 Hz, vent Ø 100×100 mm and 44 cm long, two flanged ends: thick panels, braced and sealed, or the box will lose output and rattle.
- Plan the mounting and the handling. One unit weighs 80 kg: the baffle and the fixings have to hold it, and it takes two people to fit it.
- Size the power cable for the amplifier, with an inline fuse close to the battery and a ground point on bare metal. The push connectors accept up to 12 AWG.
