SP-600.1D - @1 ohm
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
600 watt RMS.
One subwoofer.
One mono digital channel, all the current for a single subwoofer: 600 W RMS at 2 ohm, 300 W at 4 ohm, 200 W at 8 ohm. Variable high-pass and low-pass filters, bass boost, and a cooling fan driven by temperature.
Power, measured not promised
RMS @ 14.4 V · CONTINUOUS POWER, NOT BURST
Why this amplifier
A single mono output stage: 600 W RMS at 2 ohm, 300 W at 4 ohm, 200 W at 8 ohm. No bridging, no power shared between channels.
Smart Cooling System: the fan is driven by temperature, so it stays quiet while the amplifier is cool and steps in when the heatsink warms up.
High-pass 15–80 Hz, low-pass 80 Hz–10 kHz and bass boost 0–12 dB at 50 Hz: it works as a subwoofer amplifier or as a mono full-range channel.
Protection against output short circuit, high and low supply voltage and overheating. It runs on any 12 V system between 9 and 16 V.
Controls and connections
Wiring, loads & impedance, filters, gain calibration and full specifications.
⇩ Download the manual (PDF)English · PDF on Google Drive
What you receive
The SP-600.1D is supplied as one unit in its own packaging, ready to install.
In the box: SP-600.1D amplifier.
Not included: power and speaker cable, inline fuse holder and RCA cable — installation materials, chosen for your vehicle.
Technical specifications
| POWER OUTPUT — RMS | |
|---|---|
| Mono 8 ohm | 200 W |
| Mono 4 ohm | 300 W |
| Mono 2 ohm | 600 W |
| Topology | Mono digital, 1 channel |
| FILTERS & INPUTS | |
| Frequency response | 10 Hz – 20 kHz (±3 dB) |
| S/N ratio | 100 dB |
| Input sensitivity | 200 mV |
| Input impedance | 56 k ohm |
| High-pass filter (HPF) | 15 – 80 Hz |
| Low-pass filter (LPF) | 80 Hz – 10 kHz |
| Bass boost | 0 – 12 dB at 50 Hz |
| POWER SUPPLY & PROTECTIONS | |
| Supply voltage | 9 – 16 V |
| Cooling | Smart Cooling System, temperature-driven fan |
| Protections | Output short circuit, high supply voltage, low supply voltage, thermal |
| MECHANICAL & DIMENSIONS | |

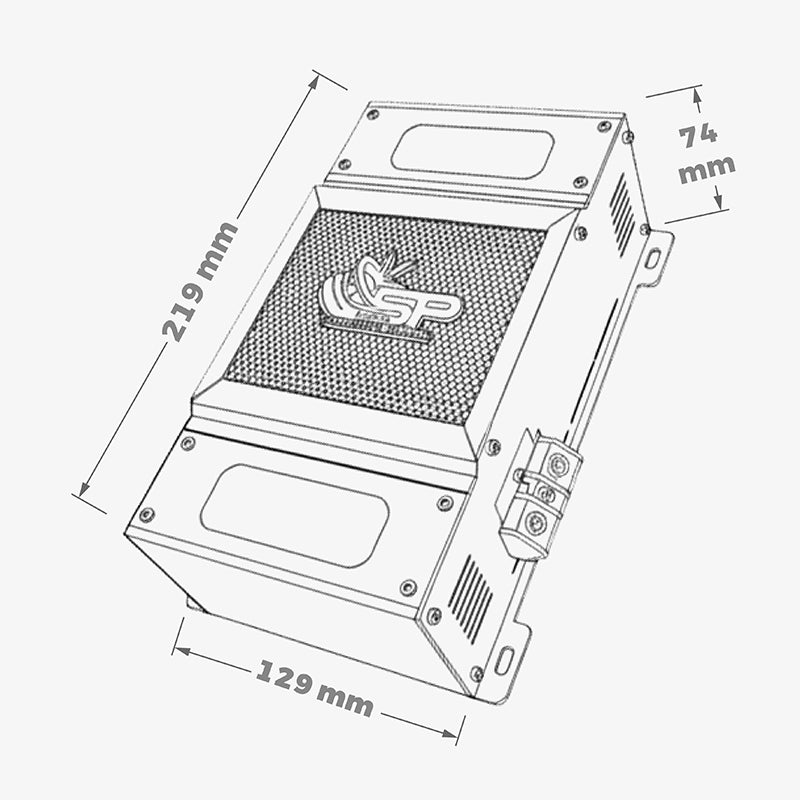

| Dimensions | 129 × 219 × 74 mm |
| Sold as | Unit |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Size the power cable and the inline fuse. Use a cable section suited to the current and a main fuse within 20 cm of the battery.
- Clean chassis ground. Ground on bare metal, scraped free of paint, with the shortest cable you can run.
- Keep it ventilated. The fan and the heatsink need free air: never cover the amplifier with carpet, luggage or foam.
- Set the gain to the source, not to maximum. Input sensitivity is 200 mV: turning the gain fully up only adds distortion.
Questions installers ask
