SP-80.4 4 CHANNEL MOSFET AMPLIFIER 80W RMS x4 (UNIT PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
80 watt RMS.
Times four.
Four real channels in one chassis: 80 W RMS each at 4 ohm, 160 W RMS each at 2 ohm, 320 W RMS bridged. Front stage, rear stage and a pair of midranges — from a single amplifier, with the crossovers already on board.
Power, measured not promised
RMS · ≤ 0.1% THD · CONTINUOUS POWER, NOT BURST · 4 CHANNELS OR 2 BRIDGED
Why this amplifier
80 W RMS per channel at 4 ohm and 160 W RMS at 2 ohm. One amplifier covers the whole cabin instead of two, and the power run stays single.
Two channels bridged give 320 W RMS each at 4 ohm: enough for a pair of midranges, with the other pair still free for the front stage.
High-pass 50 – 250 Hz and low-pass 120 Hz – 3 kHz, adjustable on the amplifier. No external processor needed to keep the tweeters clean and the midbass loaded.
Input sensitivity 200 mV – 8 V and a 9 – 16 V supply range. Factory head units, aftermarket units and DSP outputs all drive it without clipping the input.

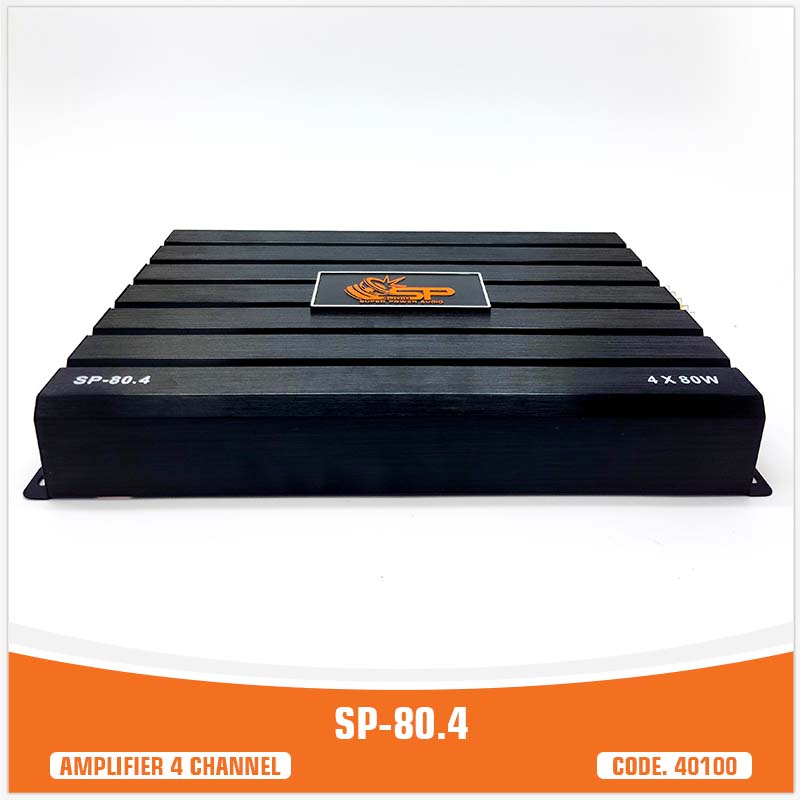

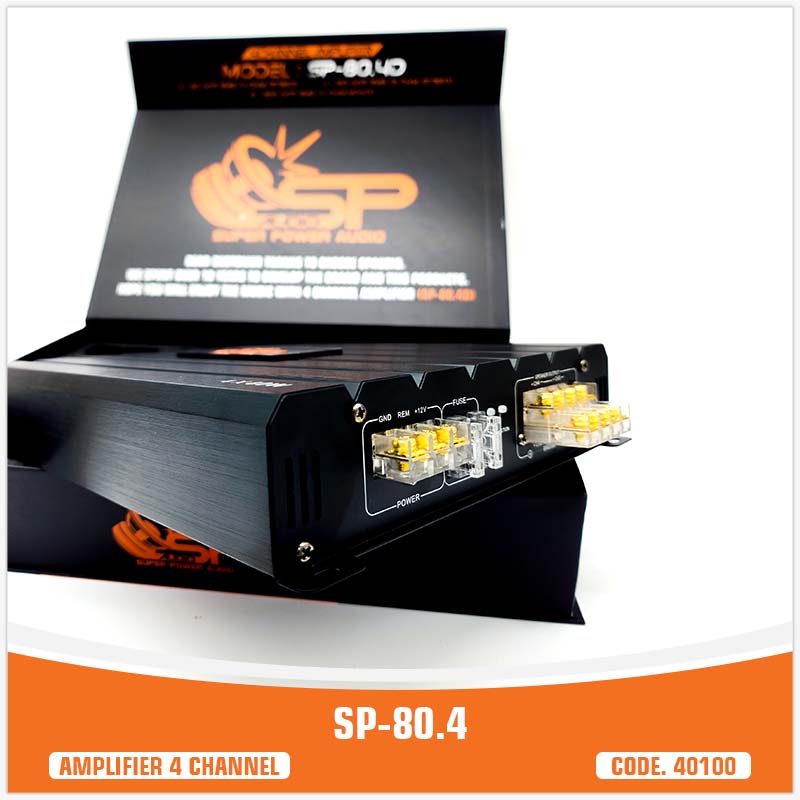

The amplifier, up close
Wiring, loads and impedance, crossover settings, gain calibration and full specifications.
⇩ Download the manual (PDF)What you receive
In the box: SP-80.4 four-channel amplifier · user manual (PDF above) · mounting screws.
Not included: power and speaker cable, inline fuse holder and RCA cables — installation materials, chosen for your vehicle. Price is for one single unit.
Technical specifications
| POWER OUTPUT PER CHANNEL — RMS, ≤ 0.1% THD | |
|---|---|
| Channels | 4 |
| 4 channels @ 4 ohm | 80 W x 4 |
| 4 channels @ 2 ohm | 160 W x 4 |
| Bridged @ 4 ohm | 320 W x 2 |
| POWER SUPPLY & PROTECTIONS | |
| Supply voltage | 9 V – 16 V |
| Recommended fuse | 25 A x 2 |
| Protections | Short circuit, over current, thermal |
| FILTERS AND INPUTS | |
| Topology | MOSFET, 4 channels |
| Frequency response | 20 Hz – 20 kHz |
| THD | < 0.1 % |
| S/N ratio | > 90 dB |
| Input sensitivity | 200 mV – 8 V |
| High-pass filter (HPF) | 50 Hz – 250 Hz |
| Low-pass filter (LPF) | 120 Hz – 3 kHz |
| DIMENSIONS | |
| Dimensions | 316 x 228 x 51 mm |
| Sold as | Single unit |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Power cable and fuse first. The amplifier takes two 25 A fuses; fit an inline fuse on the power cable as close as possible to the battery, sized to the cable section you use.
- Clean chassis ground. Ground on bare metal, paint and primer removed, with the shortest possible cable. Most noise problems on a 4-channel install start here.
- Leave it room to breathe. The aluminium body is the cooling system: never cover the amplifier with carpet, luggage or foam, and never mount it face down in a sealed cavity.
- Set the gain by ear, not to maximum. Gain is an input matching control, not a volume knob: raise it until the sound is clean and loud, and back off at the first sign of distortion.
Questions installers ask
