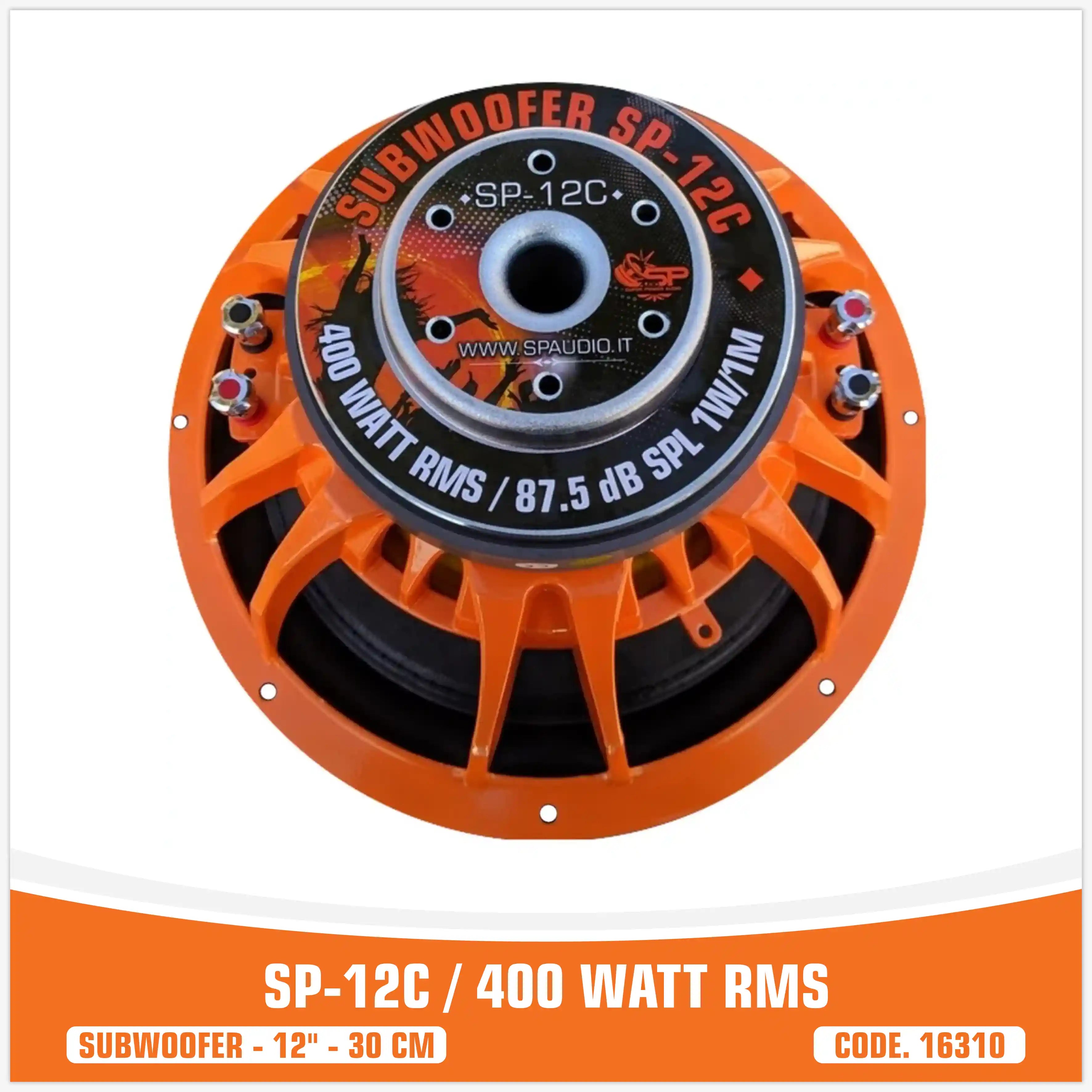

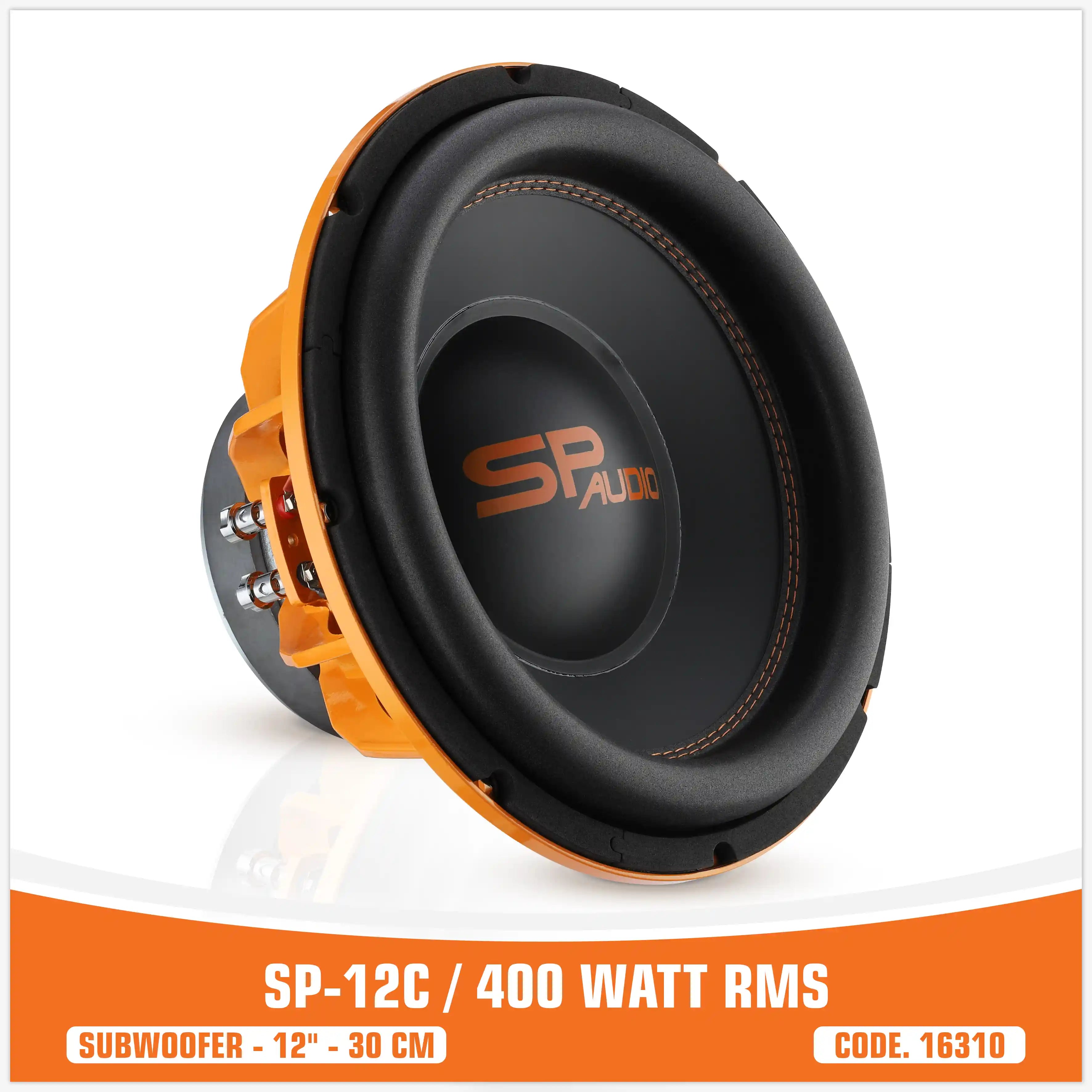

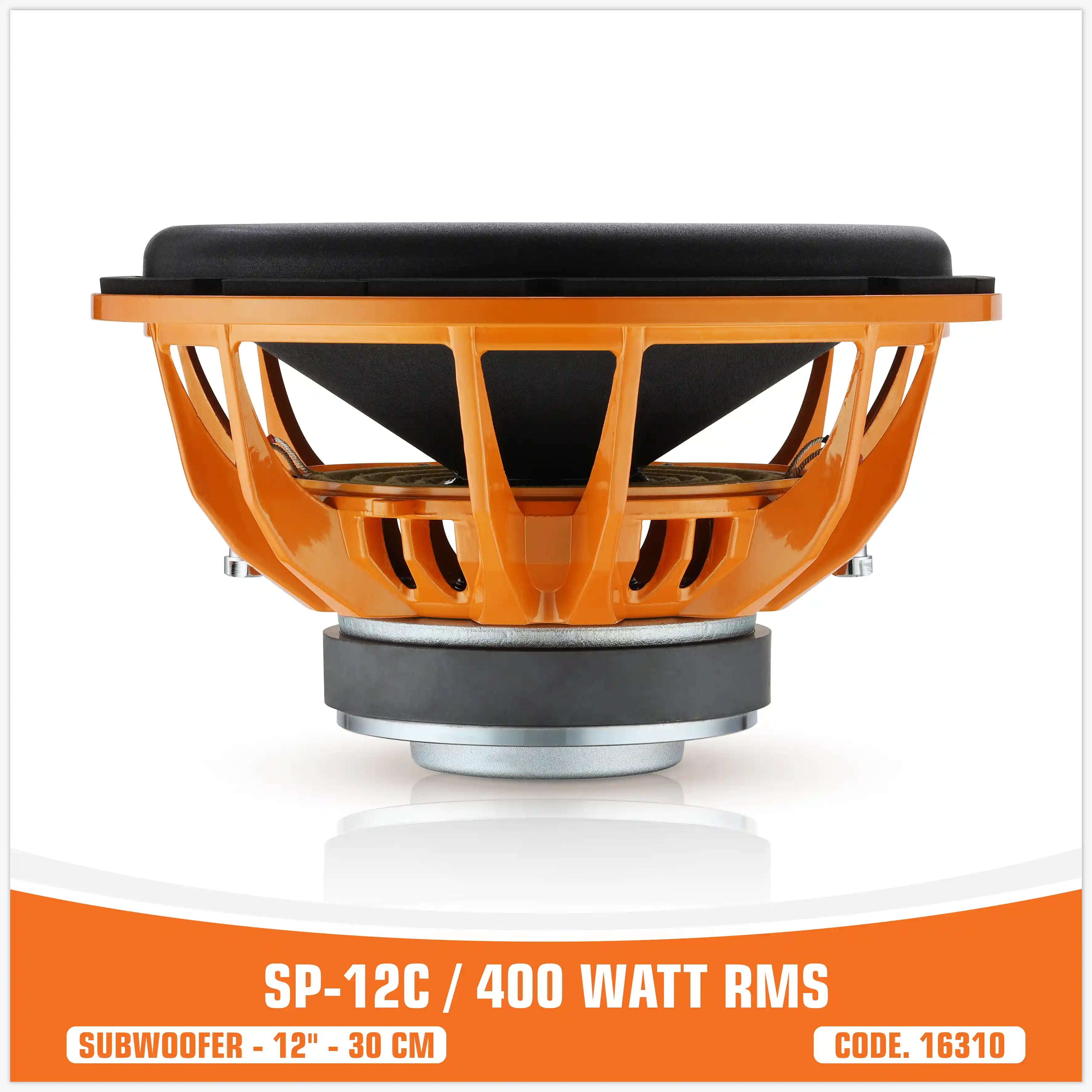

SP 12C Subwoofer 12" 400W RMS 2+2 Ohm
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
400 watt RMS.
60.5 mm voice coil.
A 12" / 30 cm subwoofer built around a 60.5 mm (2.4") dual voice coil: 2+2 ohm rated impedance, 400 W RMS continuous, 800 W peak, 87.5 dB sensitivity, 25–300 Hz. Compressed paper and fibreglass cone, large “R” suspension, 180 °C aluminium winding. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE PEAK FIGURE IS A SHORT-TERM VALUE: SIZE THE AMPLIFIER ON THE 400 W RMS
Why this subwoofer
Not a burst figure: 400 W RMS is the power the voice coil handles continuously, with 800 W of peak headroom on top.
The bigger the coil, the more heat it dissipates and the longer it survives a real session. Wound with 180 °C aluminium wire.
Two 2 ohm coils: in parallel 1 ohm, in series 4 ohm. You choose the impedance that matches your amplifier instead of the other way round.
A compressed paper and fibreglass cone with black painting, on a large “R” form suspension: a moving assembly built to work, not to look good in a photo.
Voice coil wiring, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · English · 2026
What you receive

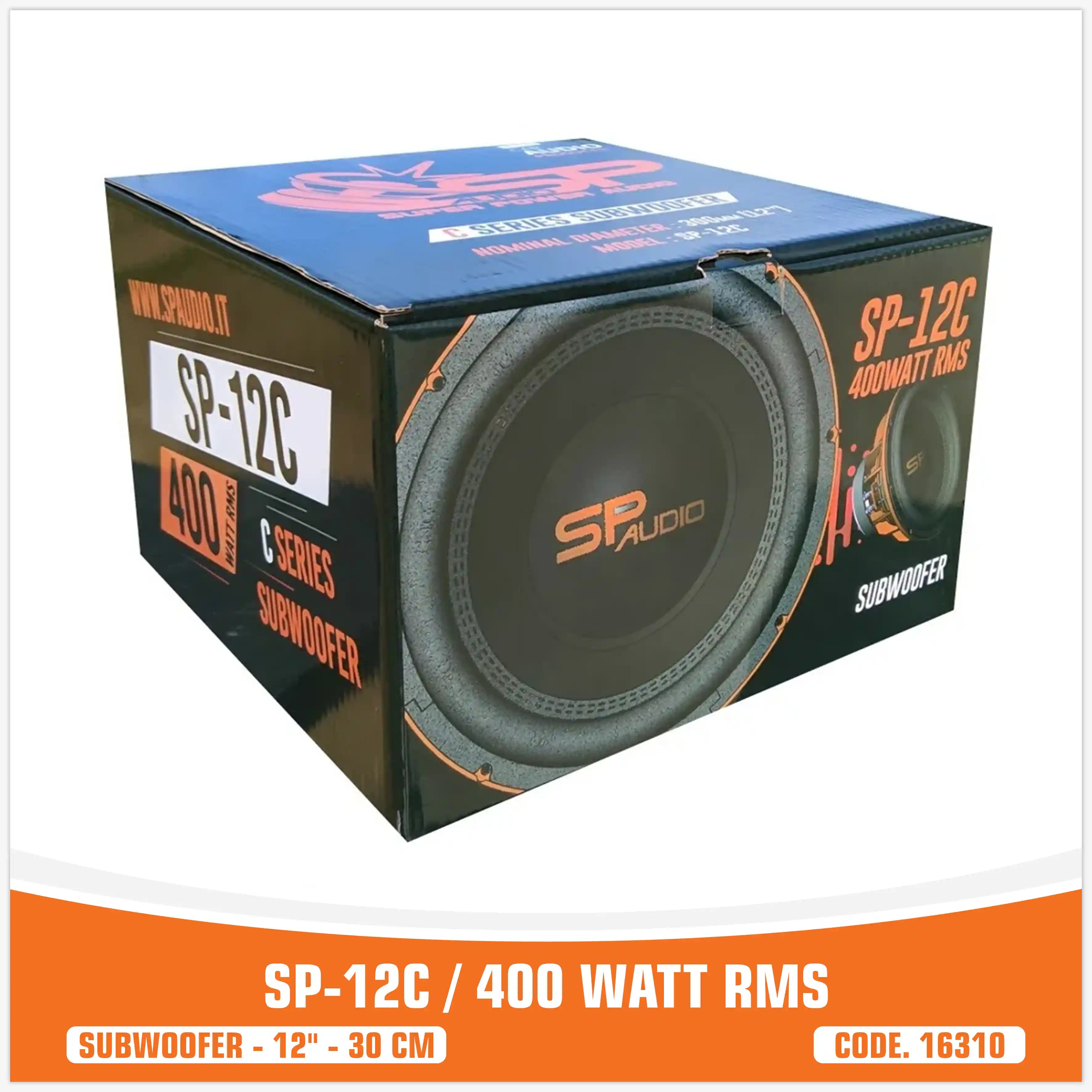

One SP 12C subwoofer, sold as a single unit, in its SP Audio box.
Not included: enclosure, amplifier, cables and fixings.
Technical specifications
| SUBWOOFER — SPECIFICATIONS | |
|---|---|
| Nominal diameter | 300 mm (12") |
| Rated impedance | 2+2 ohm, dual voice coil |
| Rated power (RMS) | 400 W |
| Peak power (MAX) | 800 W |
| Sensitivity | 87.5 dB |
| Frequency range | 25–300 Hz |
| Voice coil diameter | 60.5 mm / 2.4" |
| Winding material | 180 °C aluminium wire |
| Suspension | Large “R” form |
| Cone | Compressed paper + fibreglass + black painting |
| Sold as | Single unit |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Decide the impedance before you wire it. The two 2 ohm coils in parallel give 1 ohm; in series they give 4 ohm. Check that your amplifier is stable at the impedance you choose.
- Match the amplifier to 400 W RMS. Sizing on the 800 W peak figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid. Thick panels, braced and sealed: follow the enclosure indications in the user manual, or the box will lose output and rattle.
- Size the power cable for the amplifier with an inline fuse close to the battery and a ground point on bare metal.
Questions installers ask
spaudio@spaudio.it · +39 340 807 8778
