SP 12CA ENTRY LEVEL SUBWOOFER 12"/30CM 300W RMS (UNIT PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
300 watt RMS.
4 ohm, plug and play.

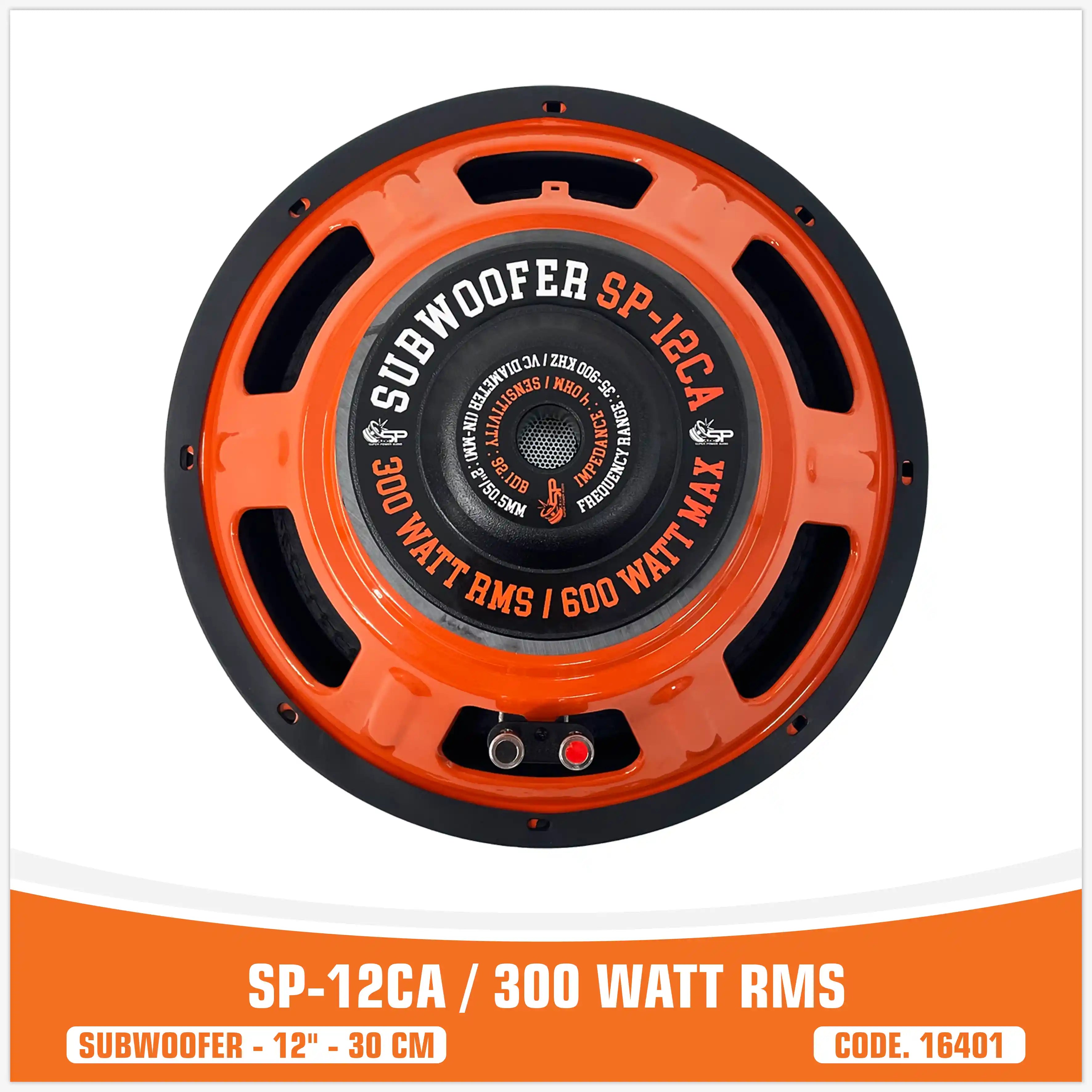

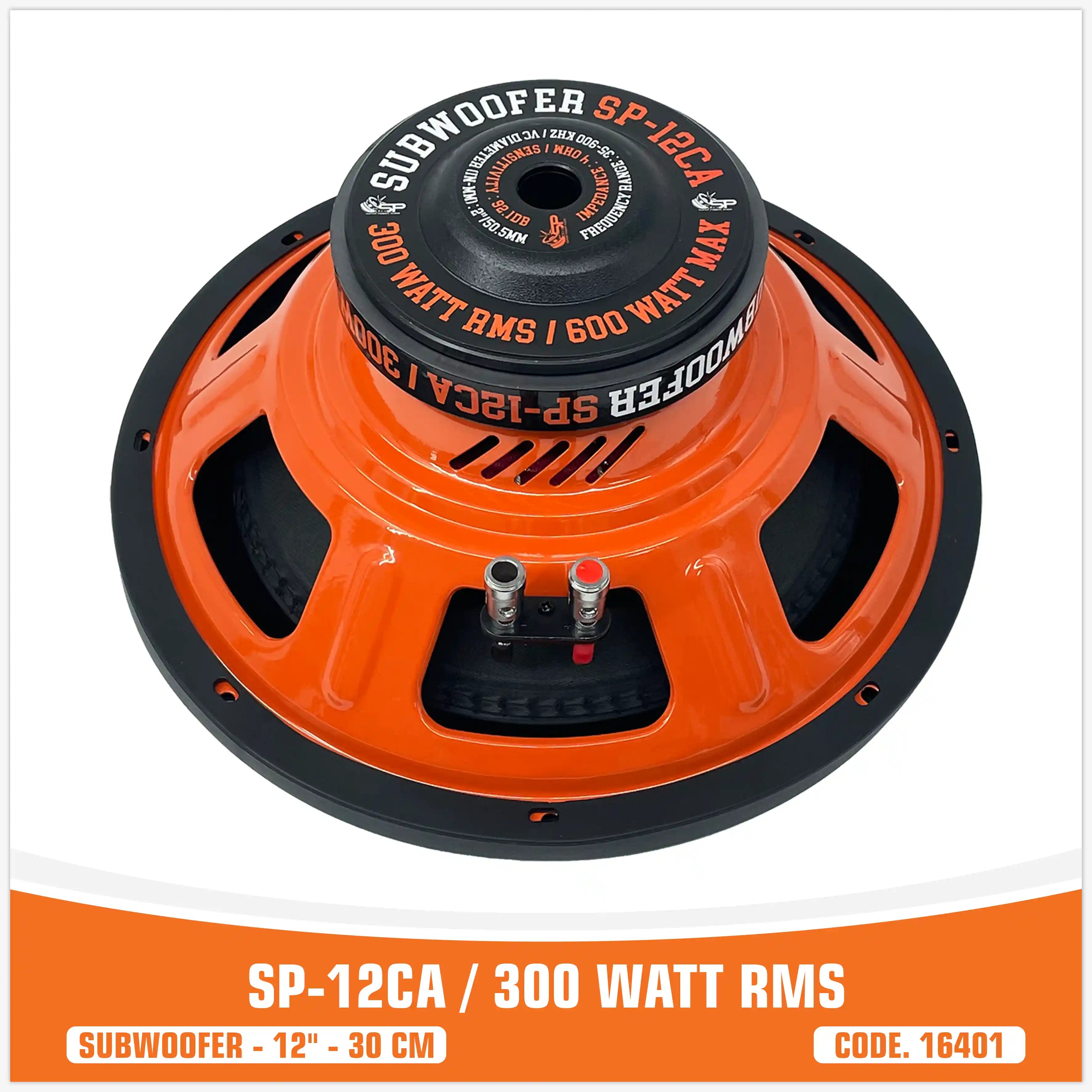

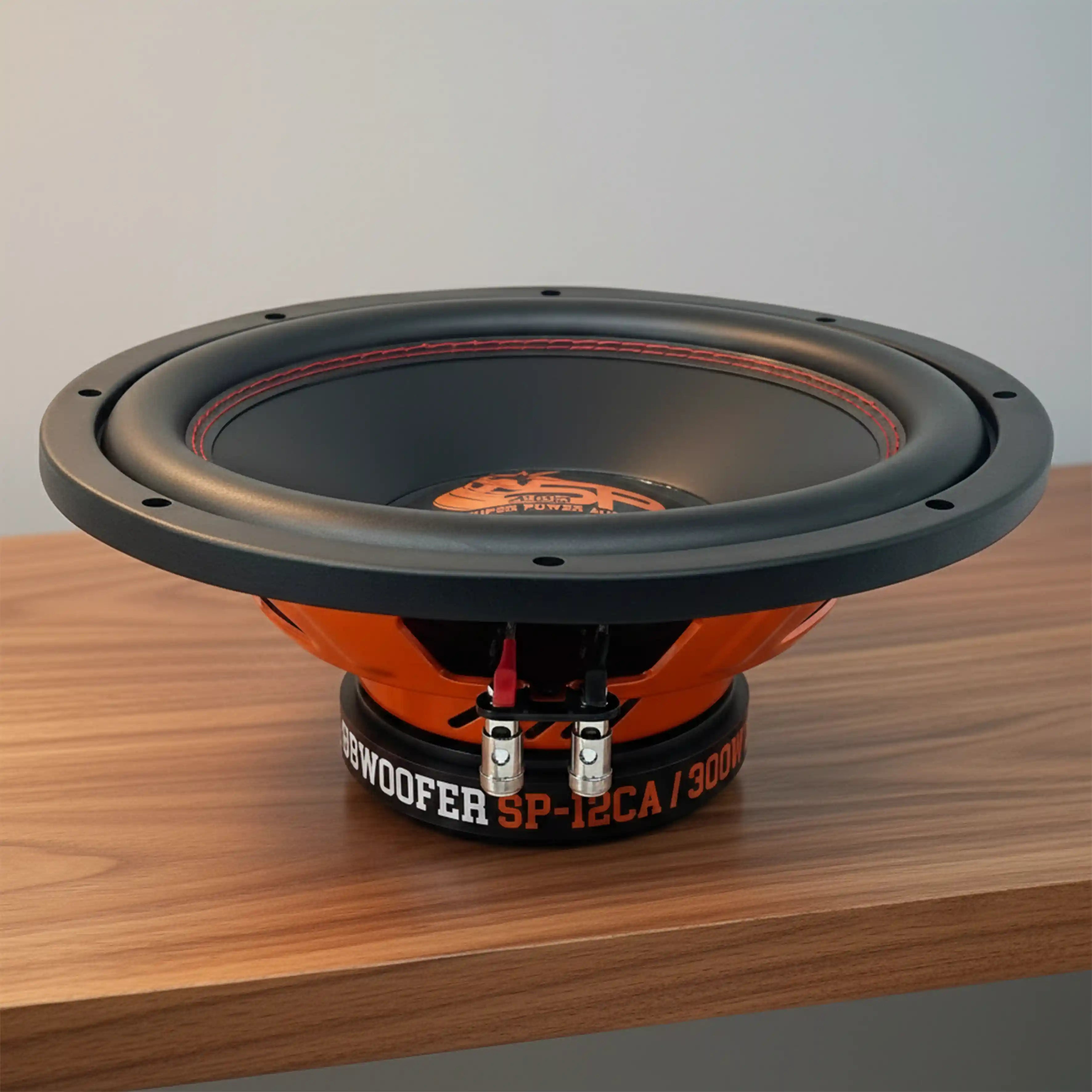

An entry-level 12"/30 cm subwoofer built to be simple: single 4 ohm voice coil, 300 W RMS continuous, 600 W peak, 92.1 dB sensitivity. 50.5 mm (2") voice coil wound with 200 °C copper wire, black non-pressed paper cone, large "R" suspension. Two terminals, one impedance, a normal mono amplifier: the cheapest honest way to add real bass. Sold per unit.
Power, measured not promised
RMS = CONTINUOUS POWER. THE PEAK FIGURE IS A SHORT-TERM VALUE: SIZE THE AMPLIFIER ON THE 300 W RMS
Why this subwoofer
Not a burst figure: 300 W RMS is what the voice coil takes continuously, with 600 W of peak headroom. A normal mono amplifier is enough.

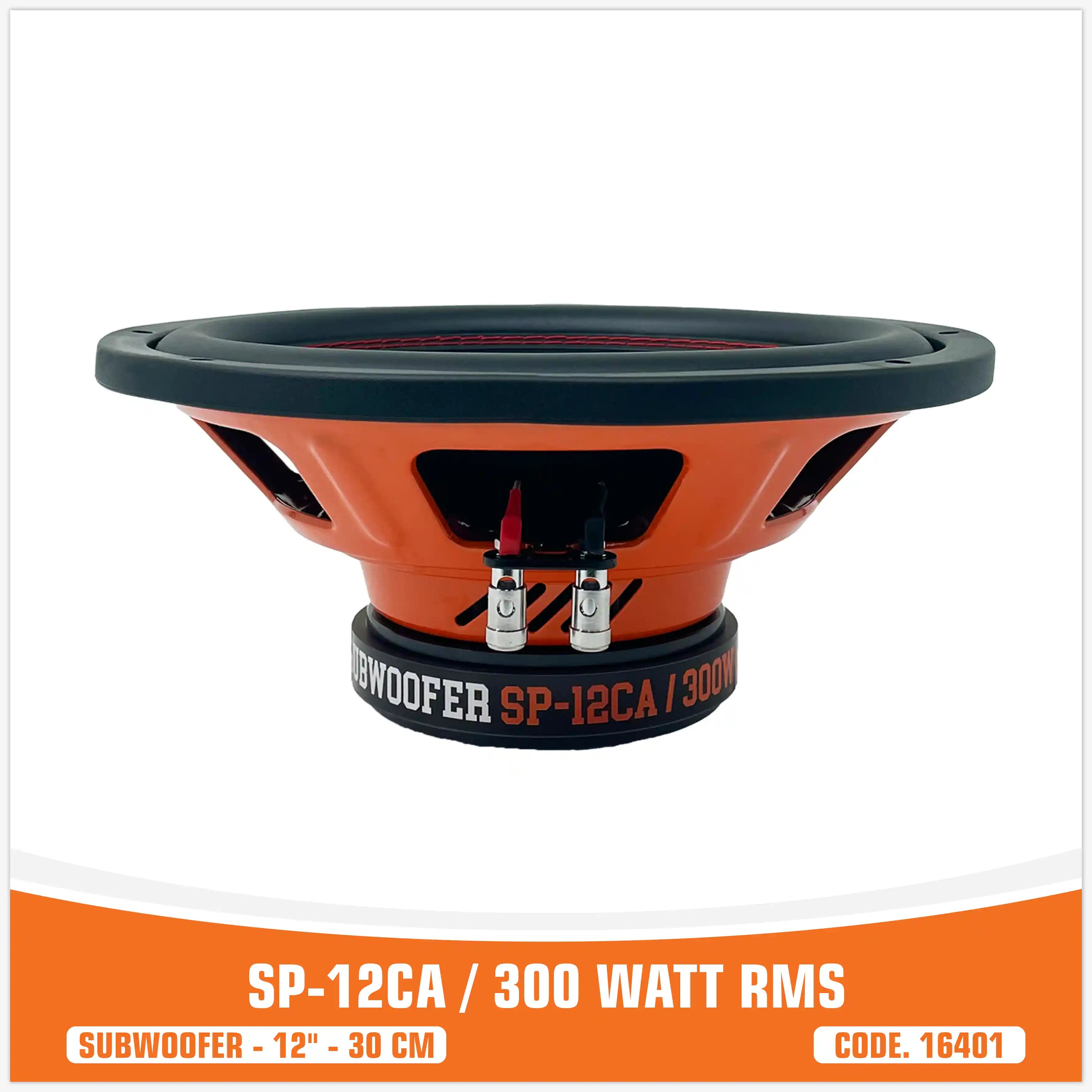

A single 4 ohm voice coil: two terminals, one wiring option, no impedance maths. Any mono amplifier stable at 4 ohm will drive it.
High sensitivity for this class: it gives real output without a large amplifier, which keeps both the budget and the car's electrical system happy.

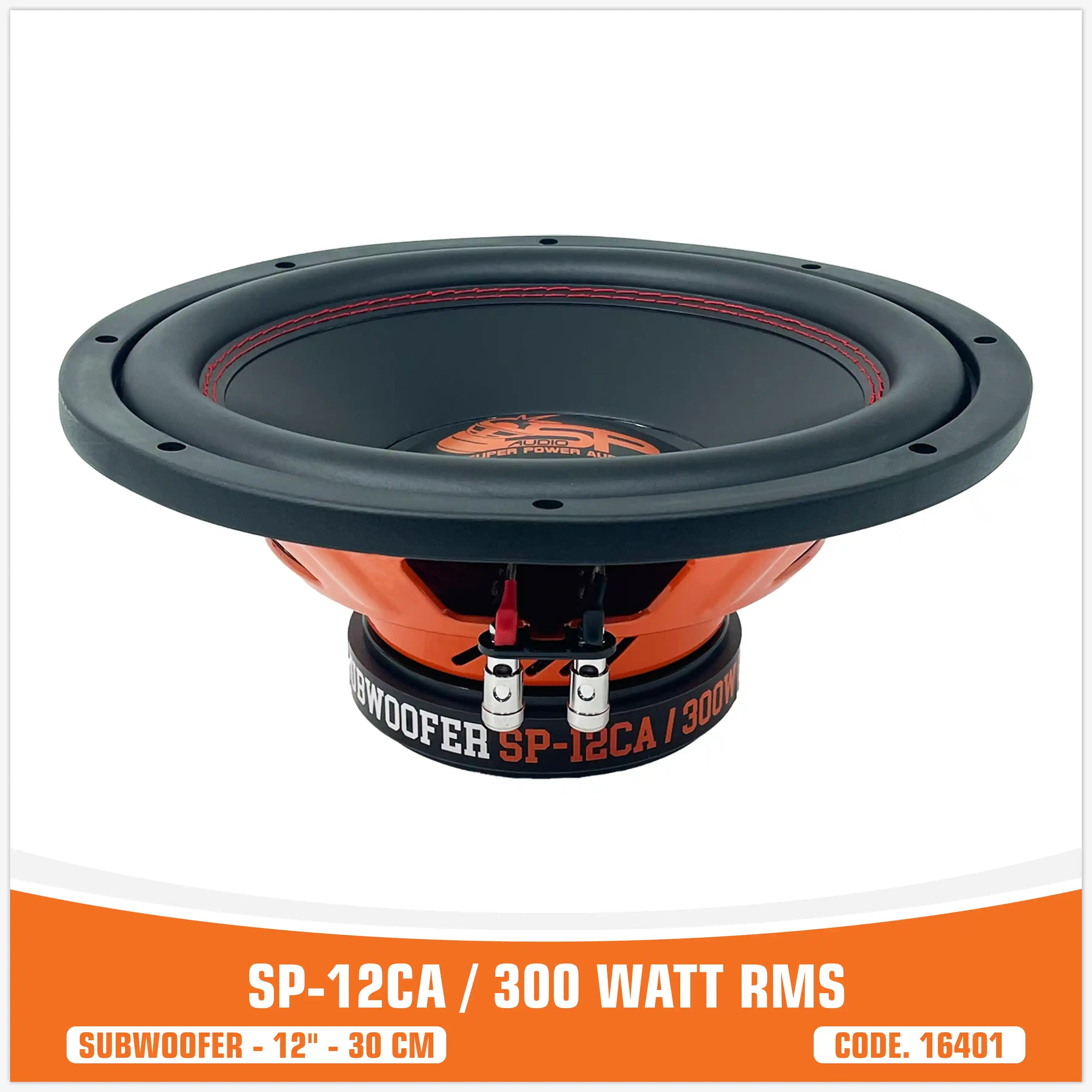

314 mm nominal diameter with a black non-pressed paper cone and large "R" suspension: warm, clean low end for a first build. No SPL claims.

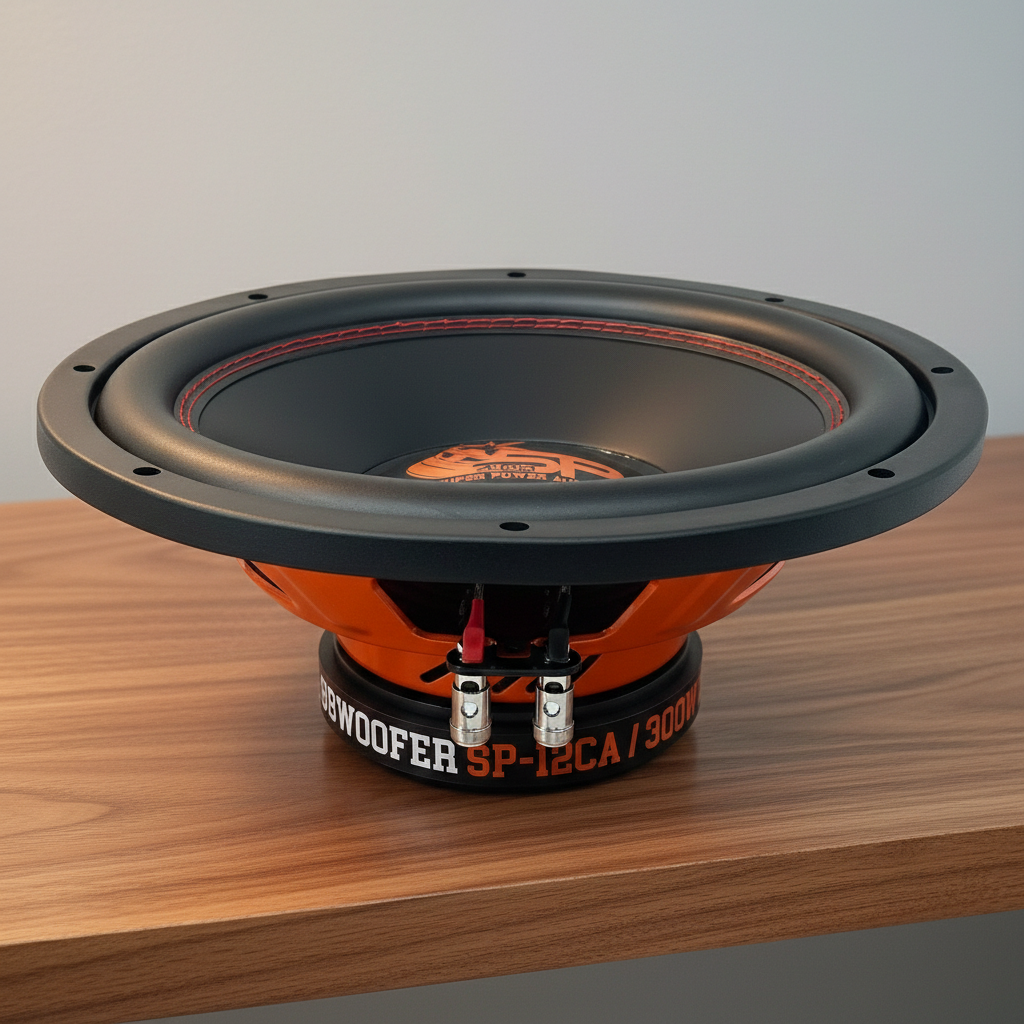

Look at it closely
Wiring, impedance, mounting and full specifications.
⇩ Open the manual (PDF)PDF · Google Drive

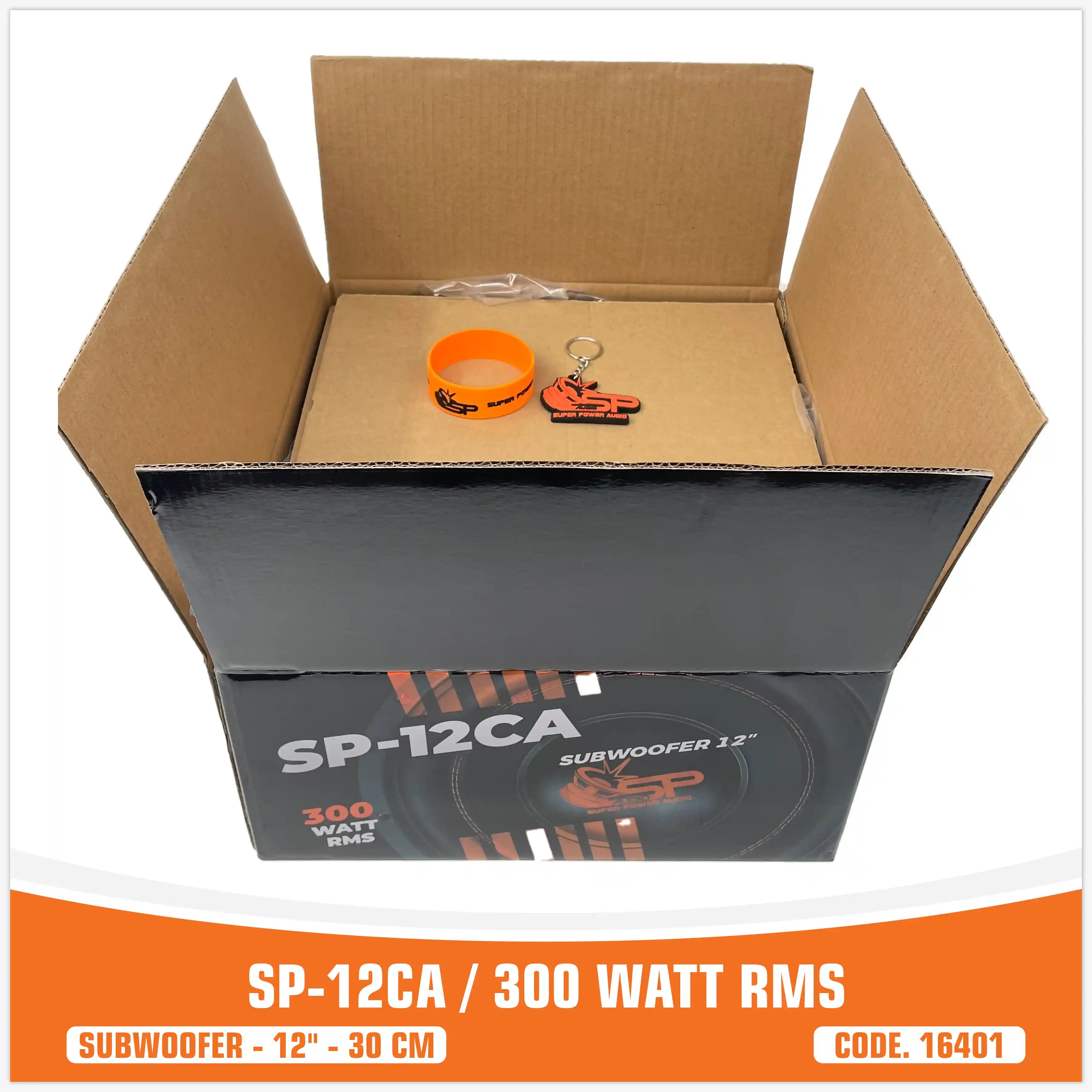

What you get

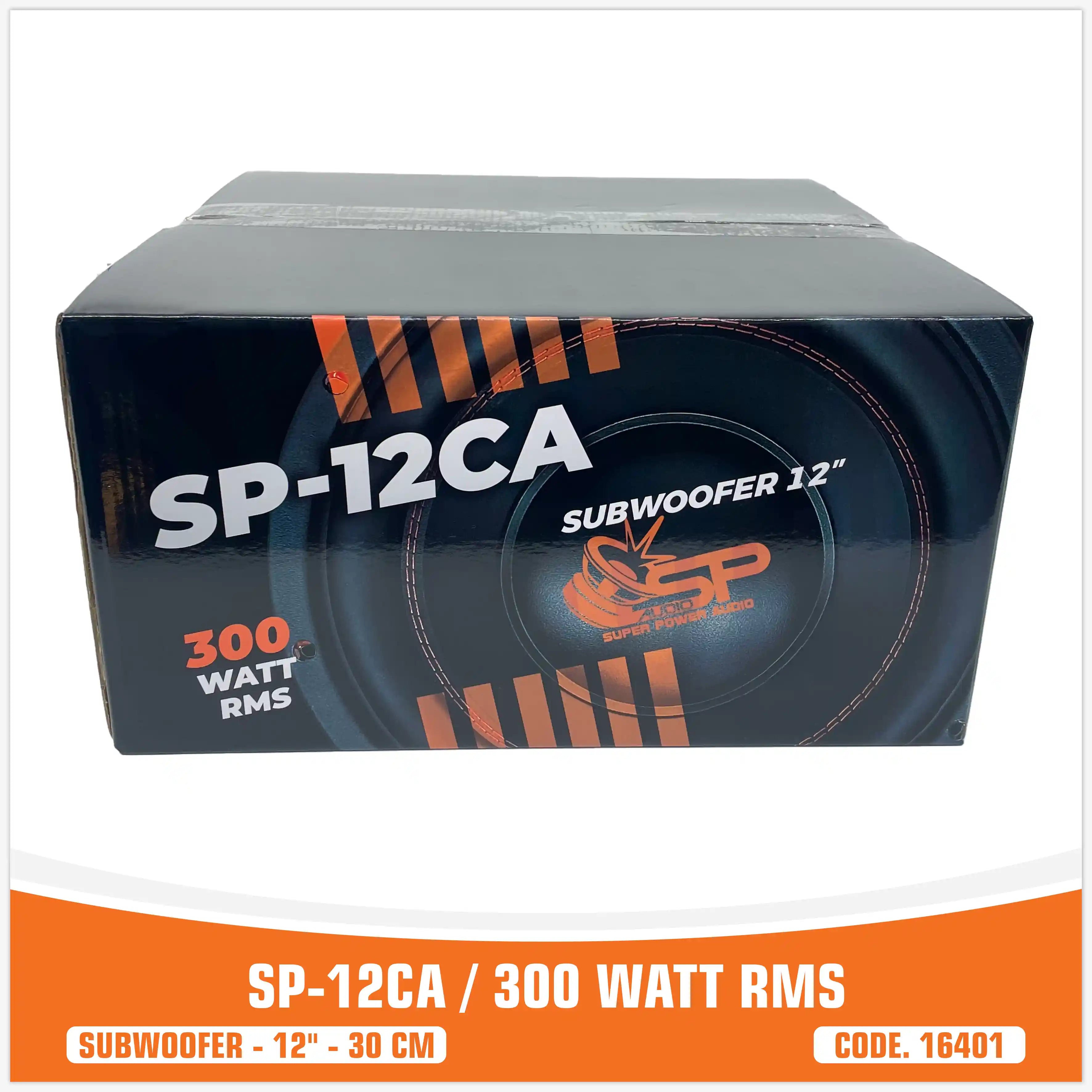

- 1 × SP 12CA subwoofer — the price is for one single unit
- PDF user manual: wiring and full specifications
- Invoice from an Italian company, dispatched from Italy
- Free technical support from Italy, before and after the purchase
Amplifier, enclosure and cables are not included.

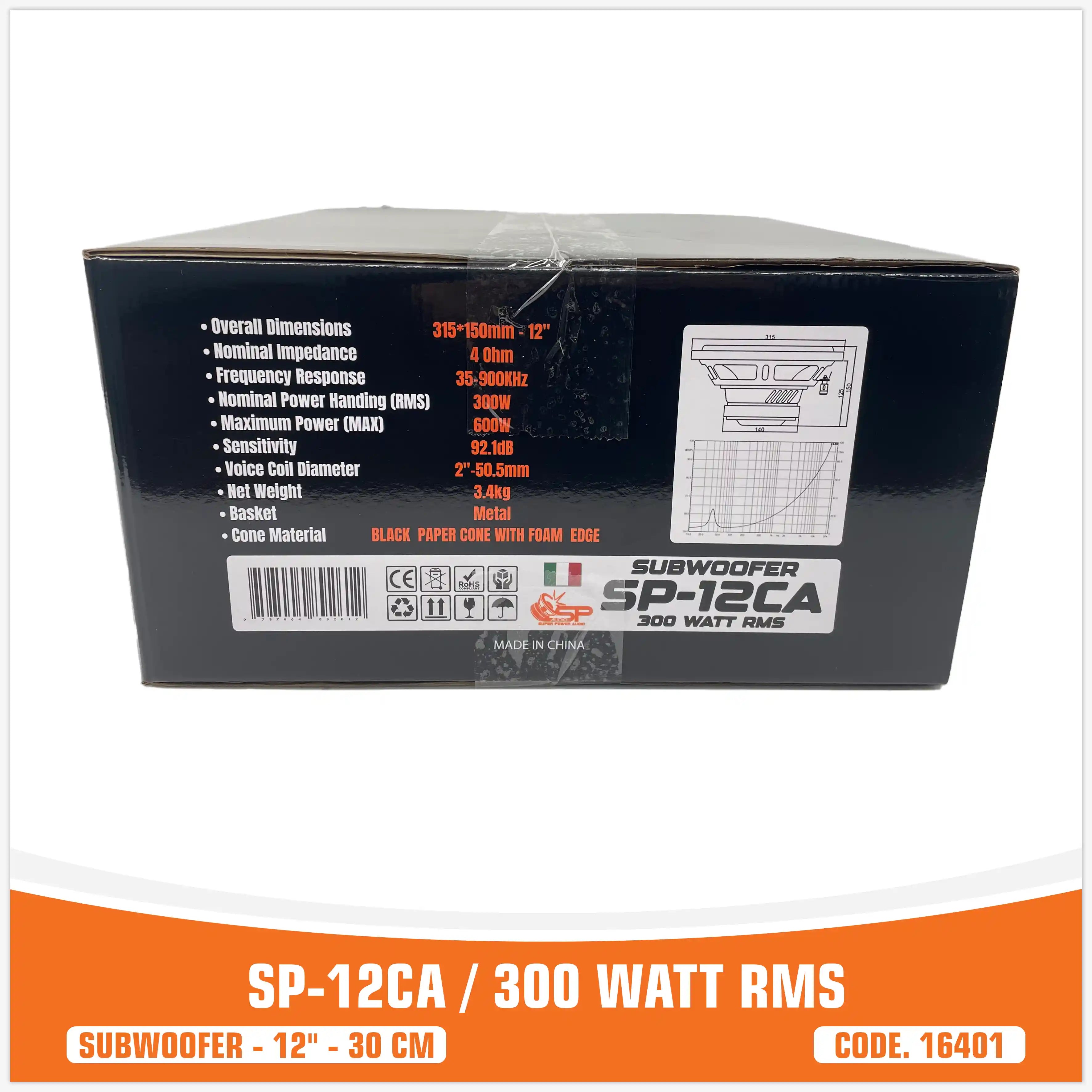

Technical specifications
| POWER AND LOAD | |
|---|---|

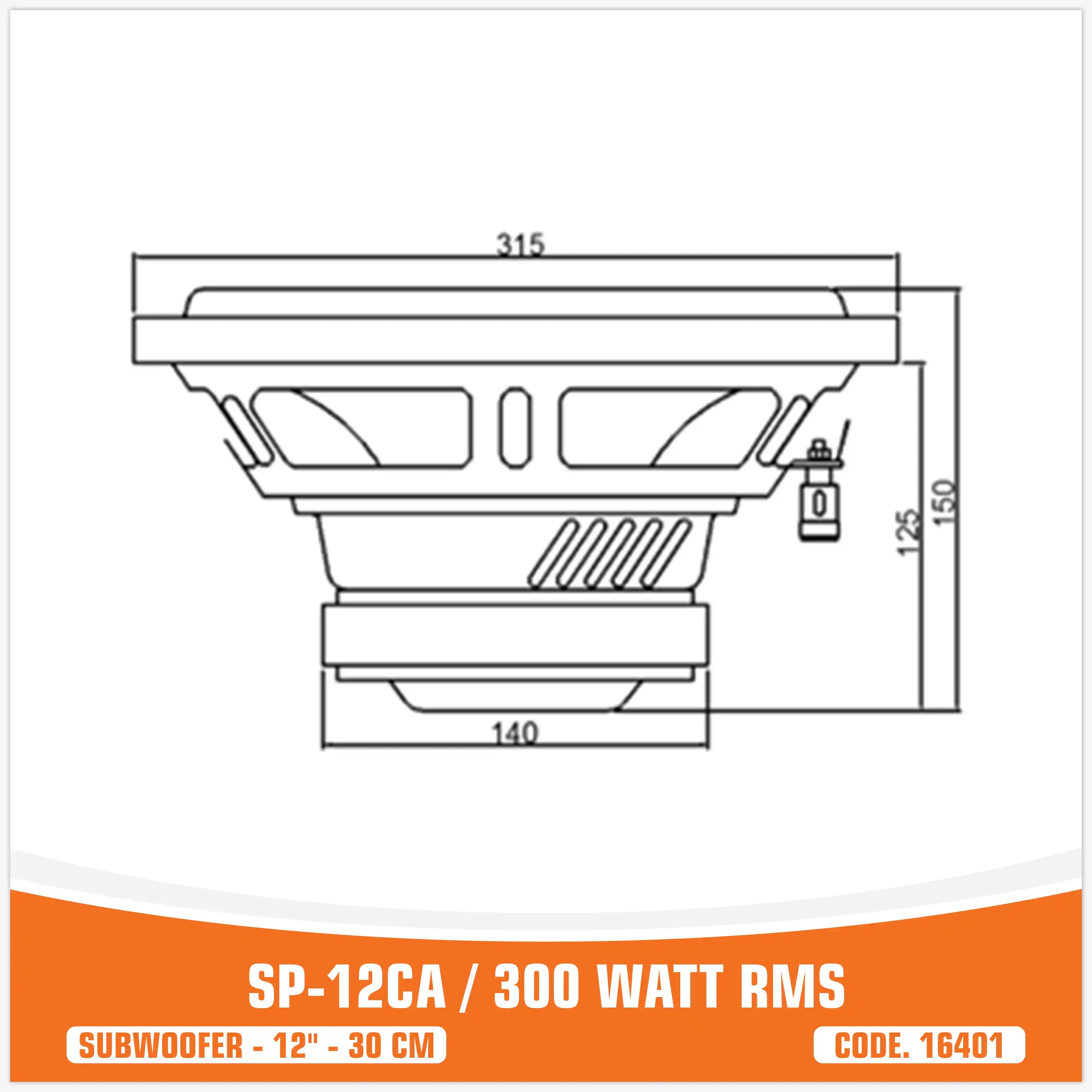

| Nominal diameter | 314 mm (12") |
| Rated impedance | 4 ohm, single voice coil |
| Rated power (RMS) | 300 W |
| Peak power (MAX) | 600 W |
| Sold as | Single unit |
| ACOUSTICS | |
| Sensitivity | 92.1 dB |

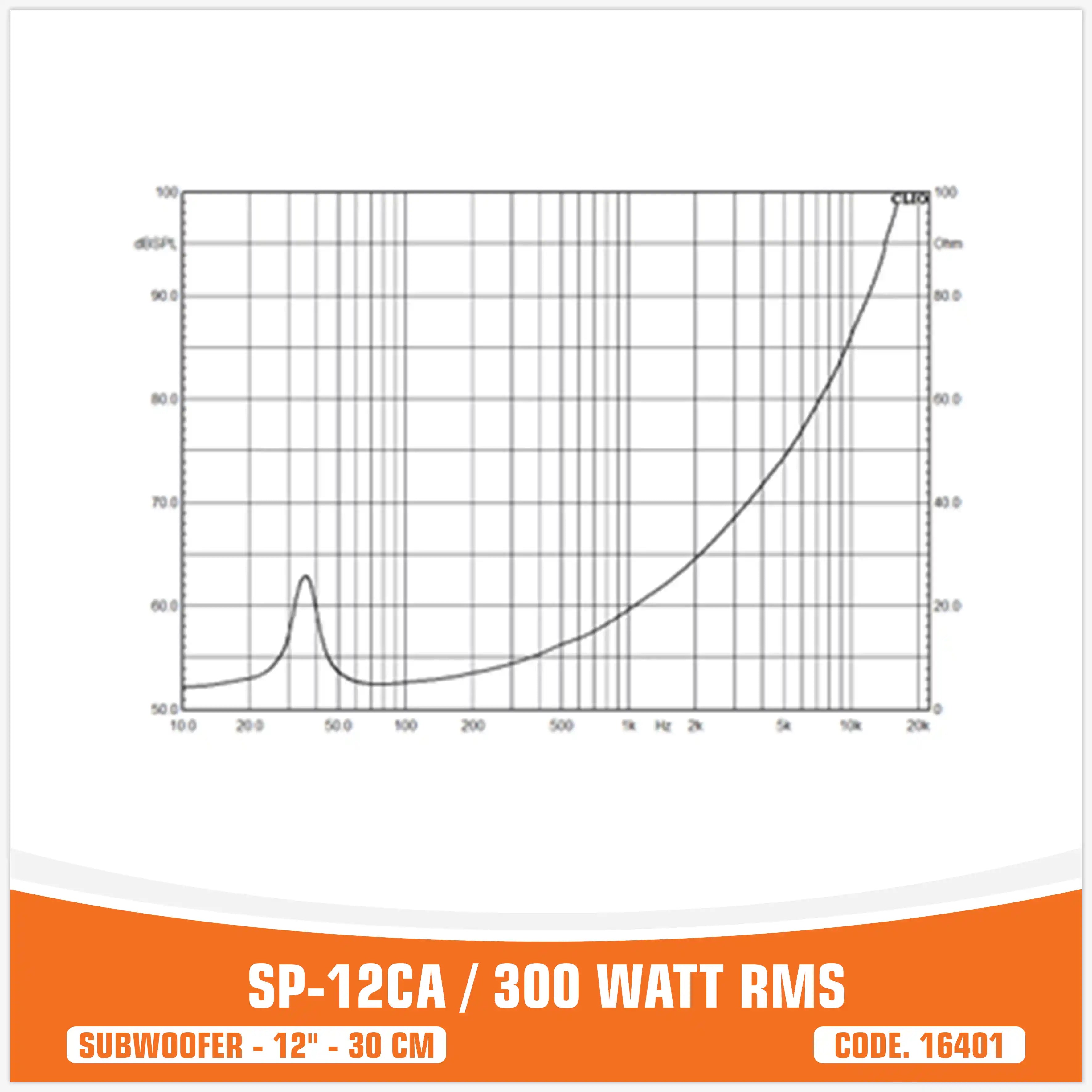

| Frequency range | 35–900 Hz |
| MOTOR AND MATERIALS | |
| Voice coil diameter | 50.5 mm / 2" |
| Winding material | 200 °C copper wire |
| Suspension | Wire, large "R" form |
| Cone | Black non-pressed paper |
MANUFACTURER'S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS
Complete the system
Before you install it
- Check the amplifier is stable at 4 ohm. This is a single 4 ohm coil: there is only one way to wire it, and the amplifier has to work at that load.
- Match the amplifier to 300 W RMS. Sizing on the 600 W peak figure means overdriving the coil: use the RMS value.
- Build the enclosure rigid and sealed. Thick, braced, airtight panels. The recommended volume is in the manual — an undersized or leaking box loses output and rattles.
- Size the power cable for the amplifier, with an inline fuse close to the battery and a ground point on bare metal.
