SP-300.4 MINI — 4-CHANNEL CLASS D AMPLIFIER 300W RMS x4
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
300 watts RMS
× four.
Four channels for a complete system: front and rear, or two speakers plus a bridged subwoofer. Two independent filter blocks and two input levels, so each pair does its own job. Designed in Italy, verified with Audio Precision instruments before it leaves the line.

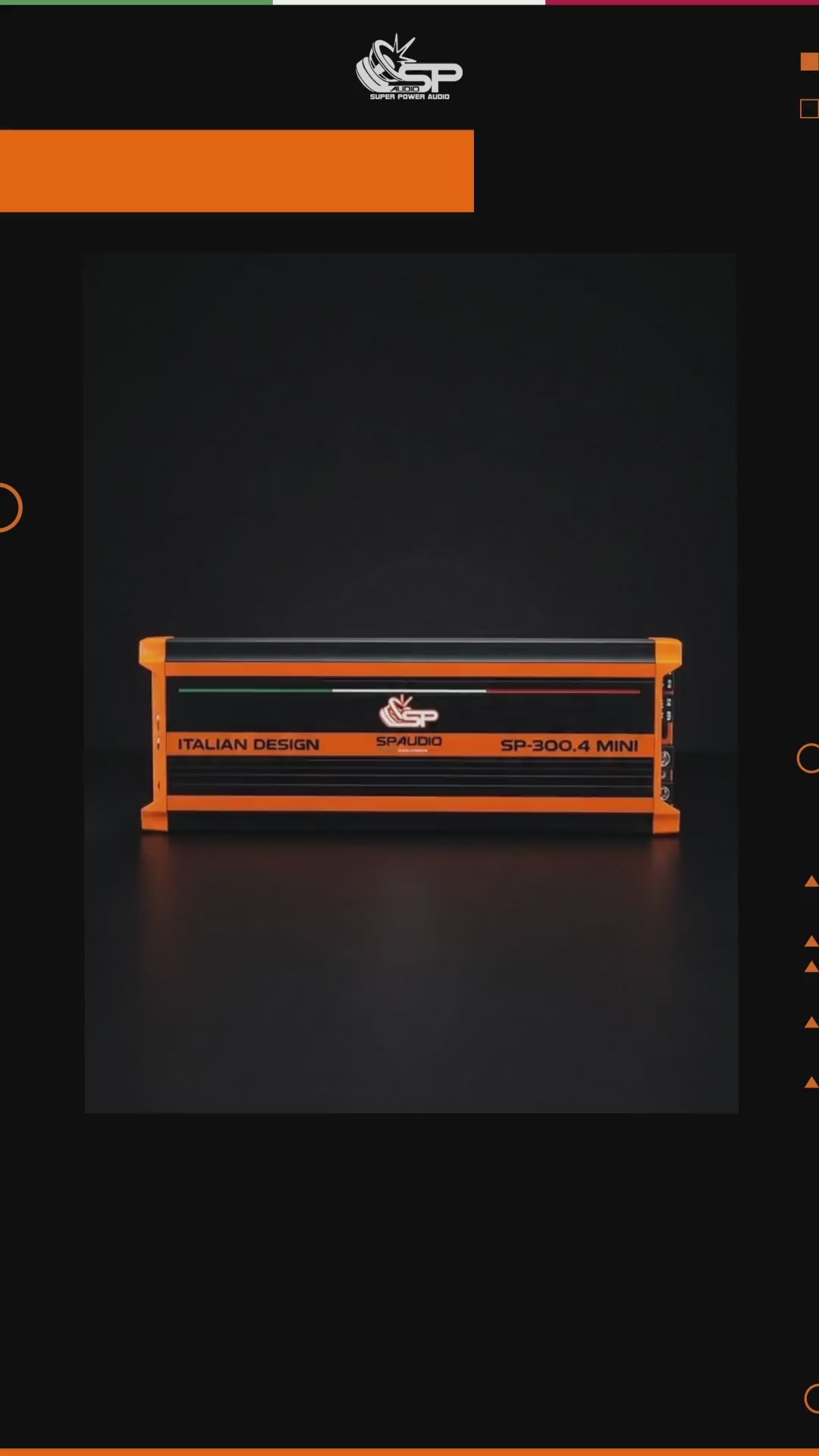

Watch it
▶ NOTHING IS DOWNLOADED UNTIL YOU PRESS PLAY
Power measured, not promised
RMS @ 14.4 V · ≤ 1% THD+N · CONTINUOUS POWER, NOT PEAK · MINIMUM LOAD 2 Ω PER CHANNEL, 4 Ω BRIDGED
Why this amplifier

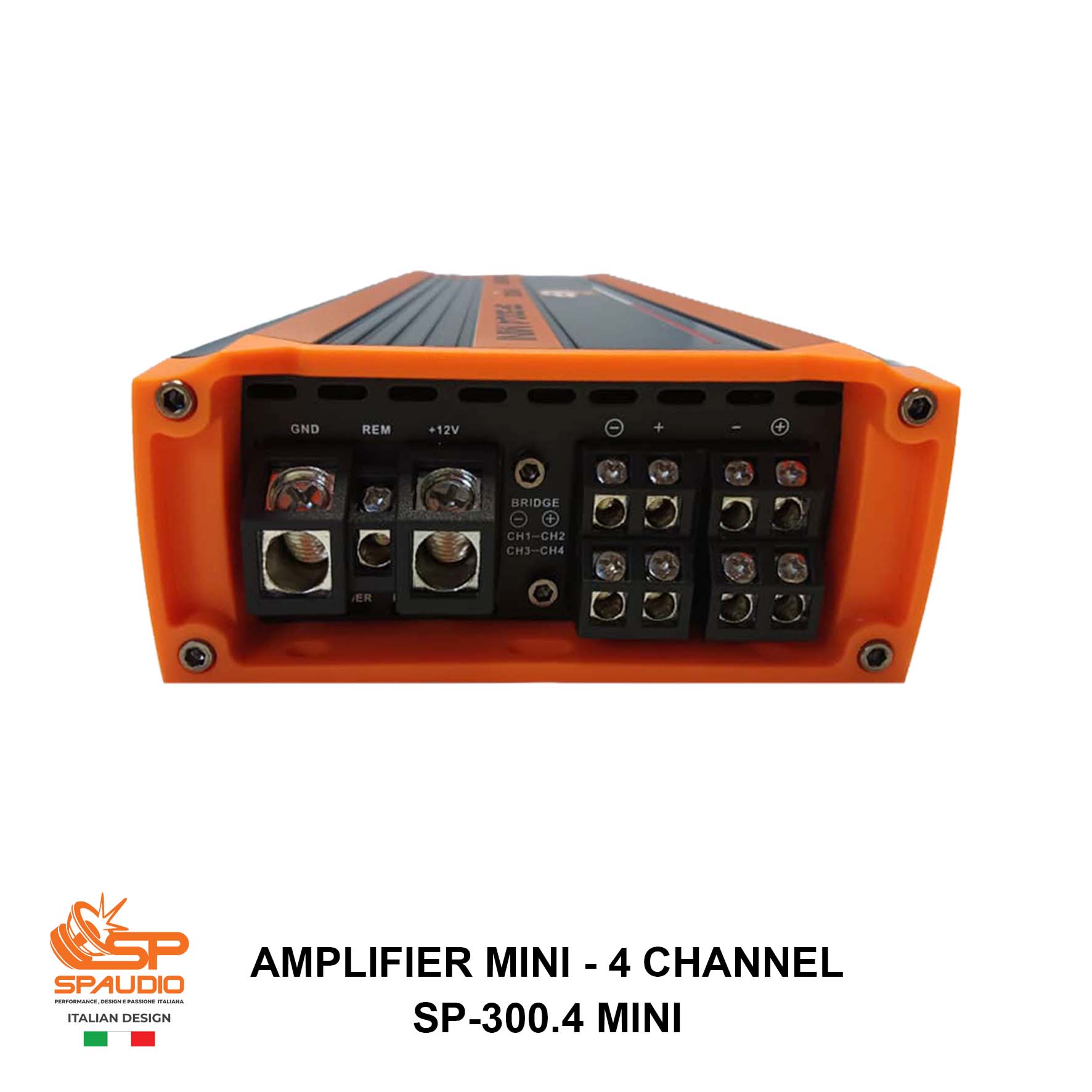

Front and rear from a single amplifier, or two speakers plus a subwoofer on a bridged pair. Bridge CH1 with CH2, or CH3 with CH4 — the guide is printed on the terminal panel.
CH1/CH2 high-pass or off; CH3/CH4 off, low-pass or high-pass. Both variable from 50 to 250 Hz, each pair with its own input level: door speakers filtered high and a subwoofer filtered low, from the same amplifier.
310 × 112 × 46 mm and only 46 mm tall. Under a seat or in a false floor, with the boot still usable and the cable runs short.
Short-circuit, thermal and voltage protection with LED diagnostics. This model carries no fuse on board, so the 125 A external fuse is not an option: it is part of the installation.
Wiring, loads and impedance, filters, gain calibration and the complete specifications.
⇩ Download the manual (PDF)English · Rev. 1.0 · September 2026 · 1.4 MB
Not a box. A case.

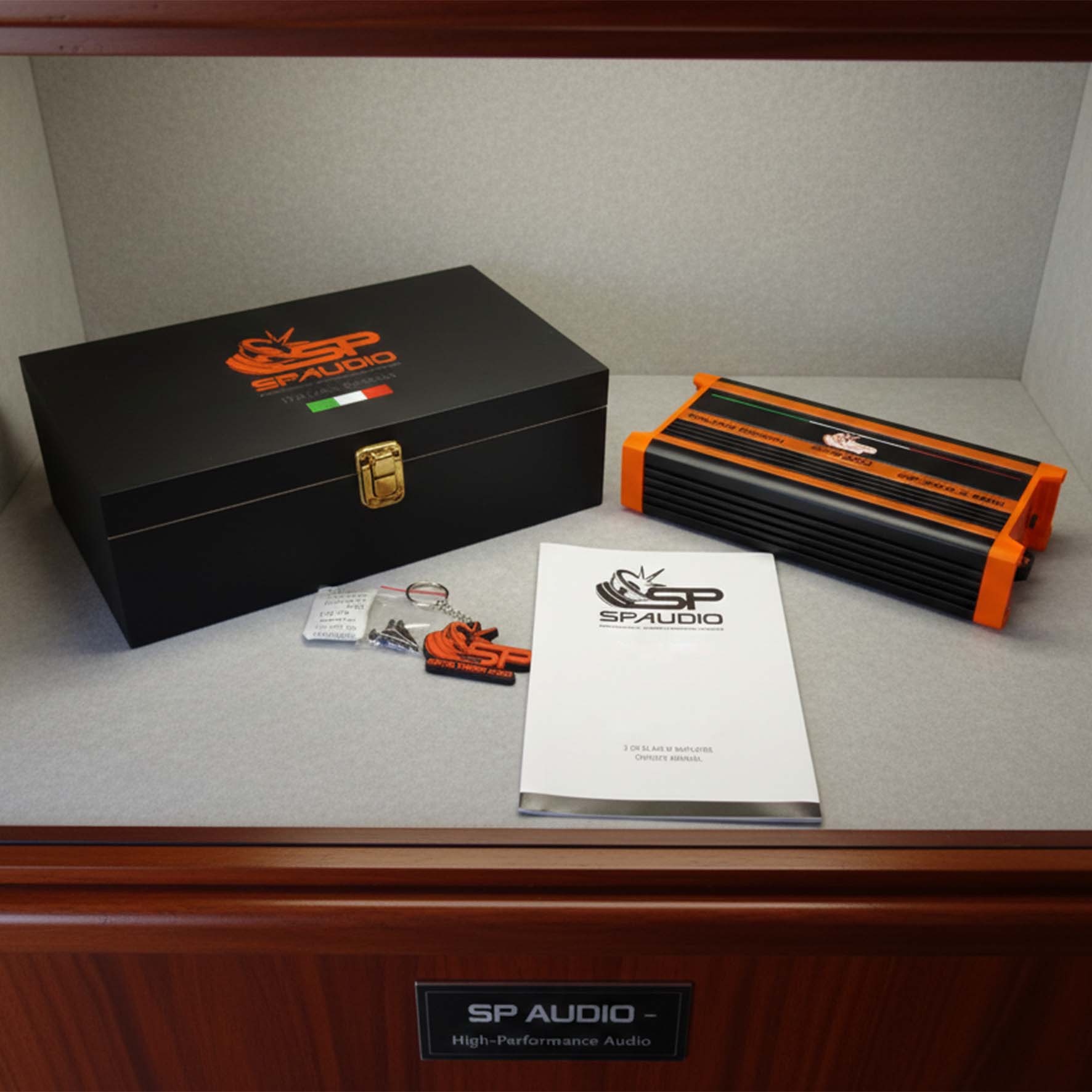

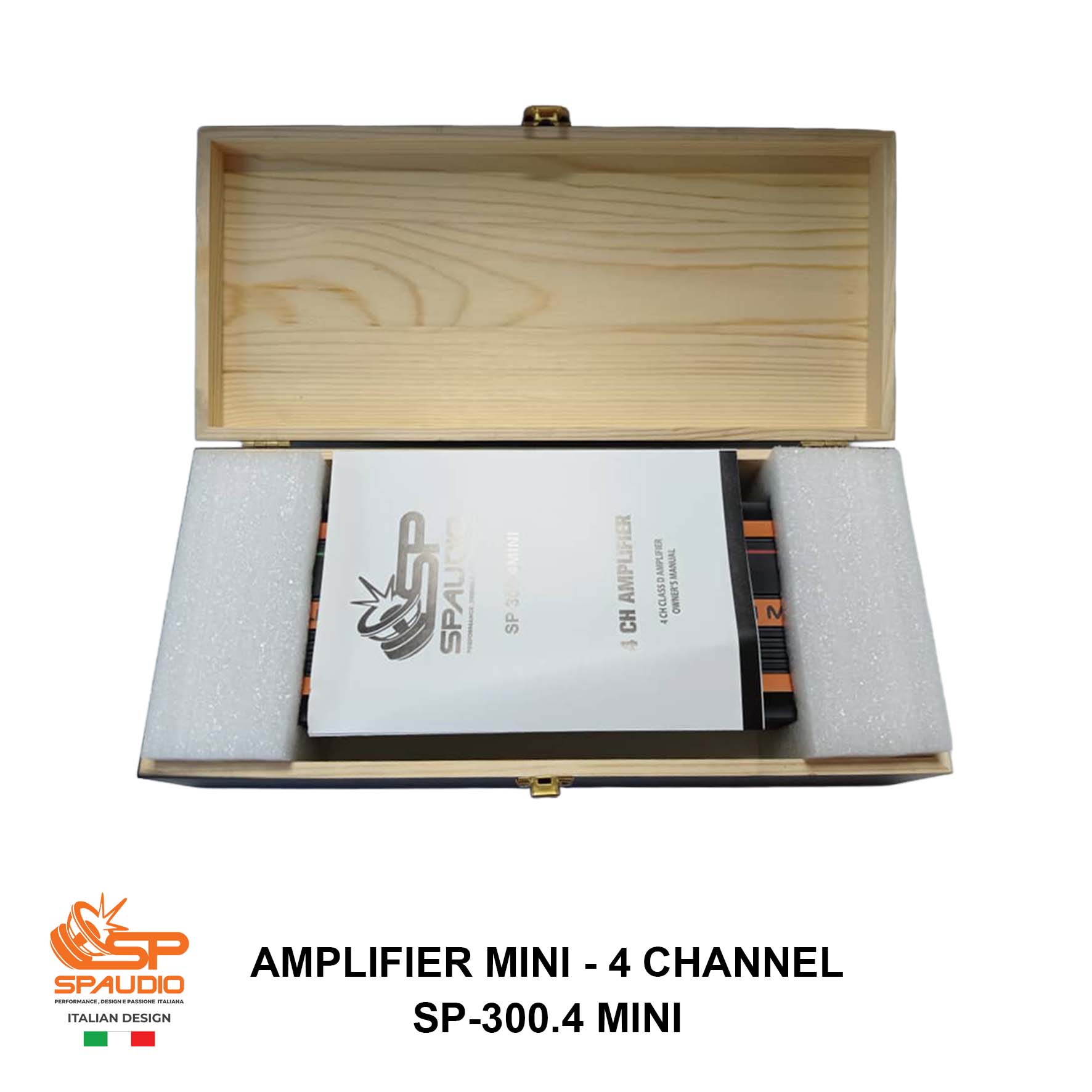

The SP-300.4 MINI arrives in a black wooden case with the SP mark and the tricolour on the lid. A rigid shell during shipping, the safest way to store or carry the amplifier afterwards — and a box people keep.

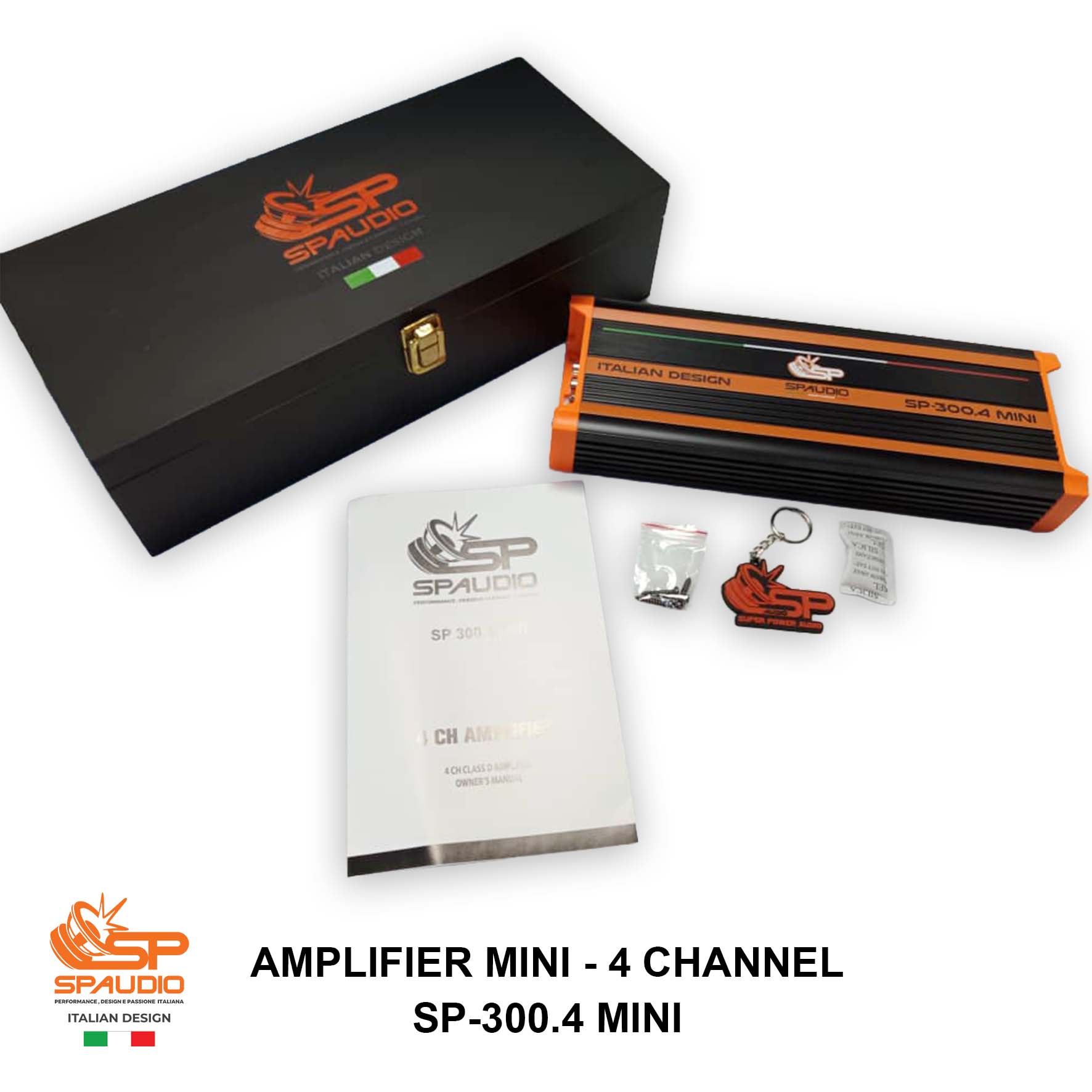

In the case: amplifier · collector’s wooden case · printed user manual.
Not included: power and speaker cable, external fuse holder and RCA cable — these are installation materials, chosen to suit your vehicle.
Technical specifications
| POWER OUTPUT — RMS @ 14.4 V, ≤ 1% THD+N | |
|---|---|
| 4 channels, 4 ohm | 4 × 300 W |
| 4 channels, 2 ohm | 4 × 400 W |
| Bridged 4 ohm | 2 × 900 W |
| Minimum load, 4-channel | 2 ohm per channel |
| Minimum load, bridged | 4 ohm |
| AUDIO | |
| Topology | Class D, 4 channels |
| Frequency response | 10 Hz – 50 kHz |
| Signal-to-noise ratio | ≥ 90 dB |
| Input sensitivity | 200 mV – 6 V |
| Minimum source level | 100 mV |
| Inputs | RCA low level, CH1 – CH4 |
| FILTERS | |
| Filter modes CH1/CH2 | HPF · OFF |
| Filter modes CH3/CH4 | OFF · LPF · HPF |
| High-pass filter | 50 – 250 Hz, variable, CH1/CH2 and CH3/CH4 |
| Low-pass filter | 50 – 250 Hz, variable, CH3/CH4 only |
| Bass boost | Not fitted on this model |
| POWER SUPPLY AND PROTECTION | |
| Supply | 12 V negative ground, 14.4 V nominal |
| Remote turn-on | +12 V |
| On-board fuse | None fitted |
| Required external fuse | 125 A, as close to the battery as practical |
| Recommended cable | 4 AWG |
| Protections | Short circuit, thermal, voltage |
| Indicators | POWER (green) · PROTECT (red) |
| MECHANICAL AND QUALITY | |
| Dimensions L × W × H | 310 × 112 × 46 mm |
| Mounting points | 4 |
| Construction | Aluminium, heat-dissipating fins, rubber bumpers |
| Terminals | Direct-insert, screw clamp |
| PCB | 2-layer, surface-mount technology |
| Verification | Audio Precision quality control |
| Packaging | Collector’s wooden case |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- No fuse on board: the external fuse is mandatory. Unlike the other MINI amplifiers, the SP-300.4 MINI has no on-board fuse. Fit a 125 A fuse as close to the battery as practical, sized to the cable.
- Respect the minimum load: 2 ohm per channel, 4 ohm bridged. A lower impedance trips the protection and, if it happens repeatedly, damages the output stage.
- Bridge inside a pair only: CH1 with CH2, or CH3 with CH4. Never bridge across the two pairs.
- Leave the fins clear. The aluminium fins are the entire cooling system: never cover the amplifier with carpet, luggage or foam.
- 12 V systems only, negative ground. Professional installation is recommended: damage caused by incorrect installation is not covered by the warranty.
