SP 5.25C COAXIAL SPEAKERS 5,25"/13.5CM (PAIR PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
100 watt RMS.
It goes where the old one was.

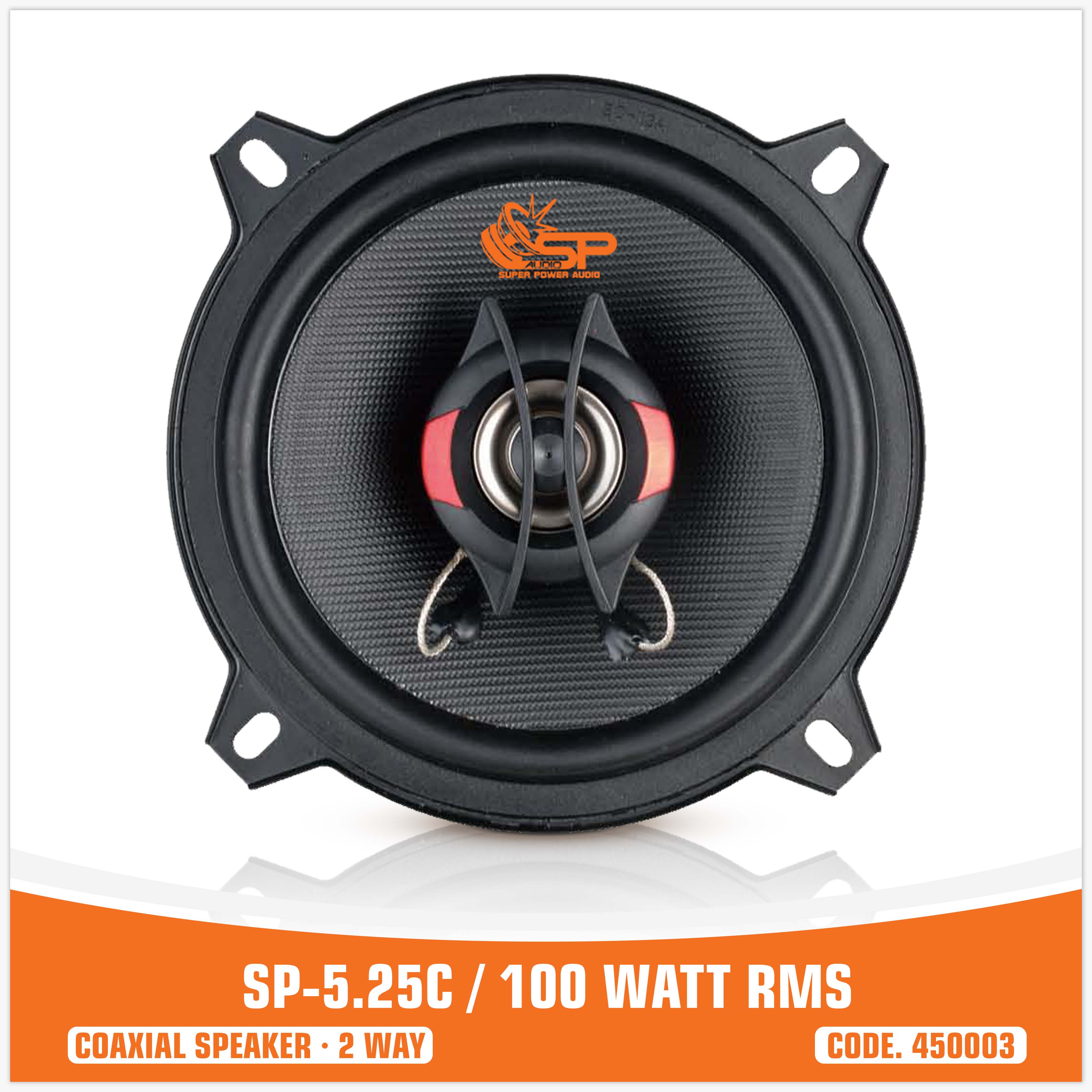

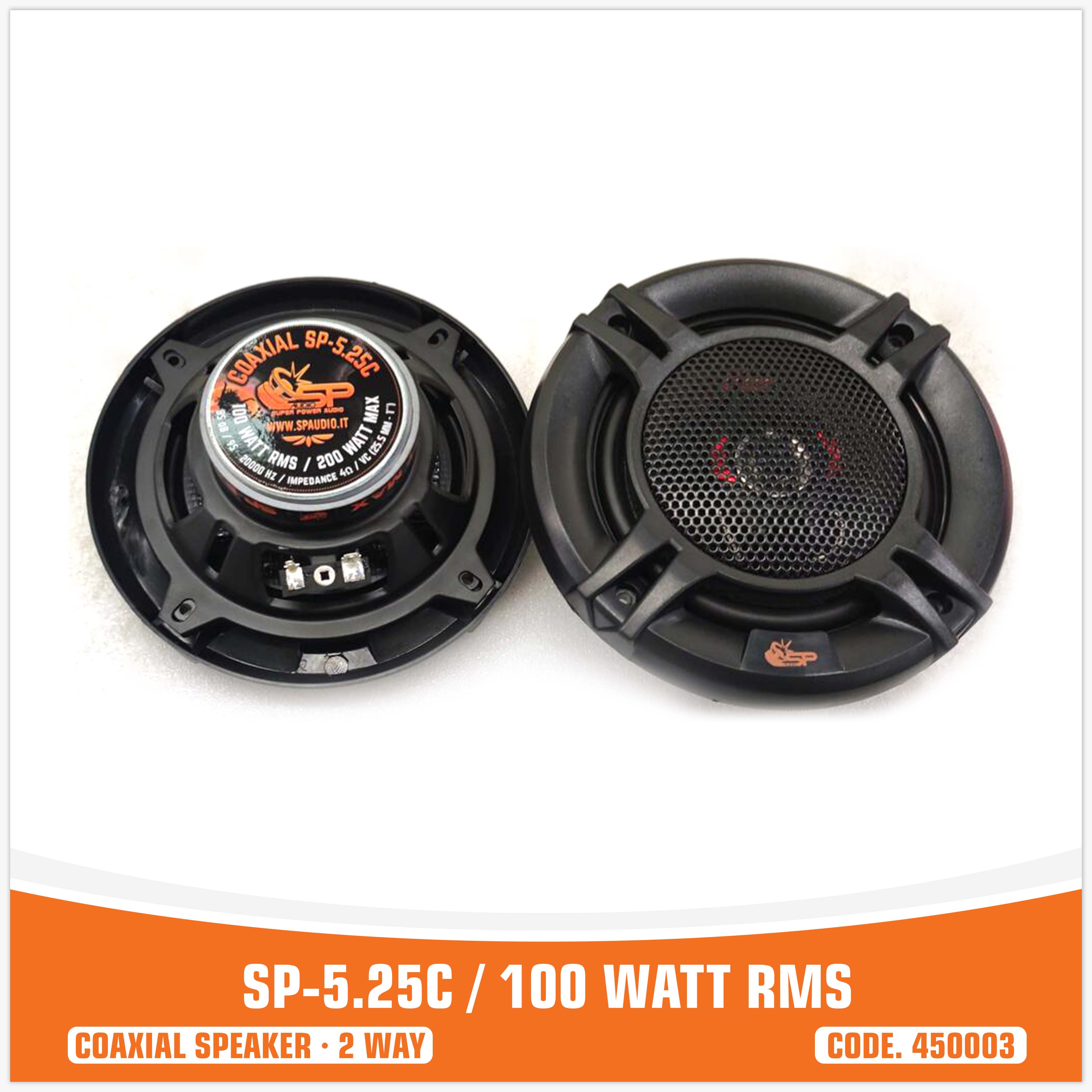

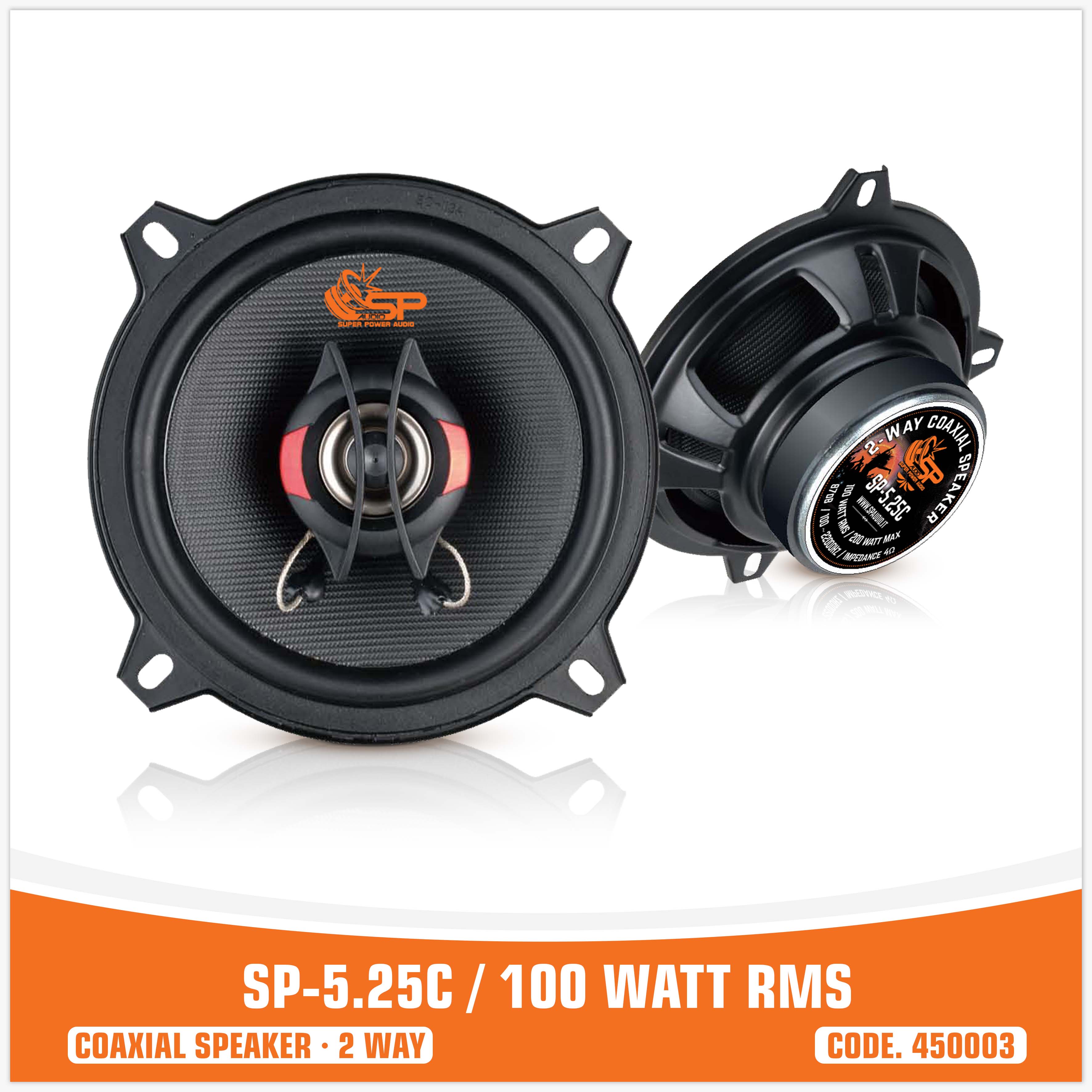

A two-way coaxial: woofer and tweeter on the same axis, in one frame. 5"/13.5 cm, 85 dB, 4 ohm. It replaces the factory speaker in the original hole — no external crossover, no tweeter to mount separately, two wires and it plays. Sold as a pair.
Power, measured not promised
PER SPEAKER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω
Why this coaxial
The high notes come from a tweeter mounted on the same axis as the cone. One speaker, one hole, one pair of wires: the sound stage stays where the factory speaker was.
The filter for the tweeter is already inside. Nothing to hide behind the door panel, nothing to wire, nothing to set.
Injection PP, black, rubber surround. Injection-moulded polypropylene does not soften with damp or heat, and the rubber surround keeps working after years inside a door.
135 mm nominal, 4 ohm. In most cars it drops straight into the factory location and sounds far better than the speaker it replaces.
Look at it closely
Full specifications and mounting data, straight from the factory sheet.
⇩ Open the manual (PDF)English · opens in a new tab
What you receive

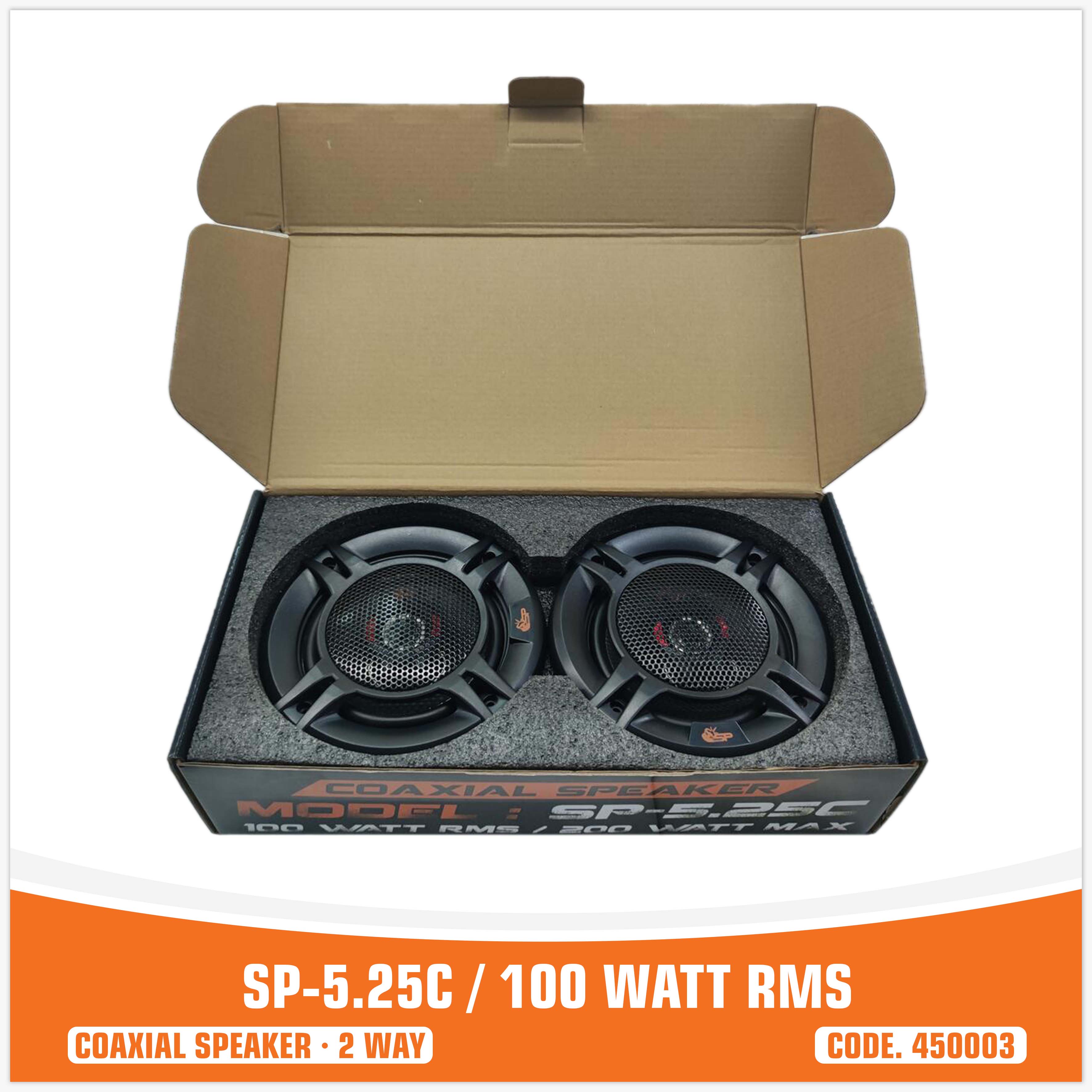

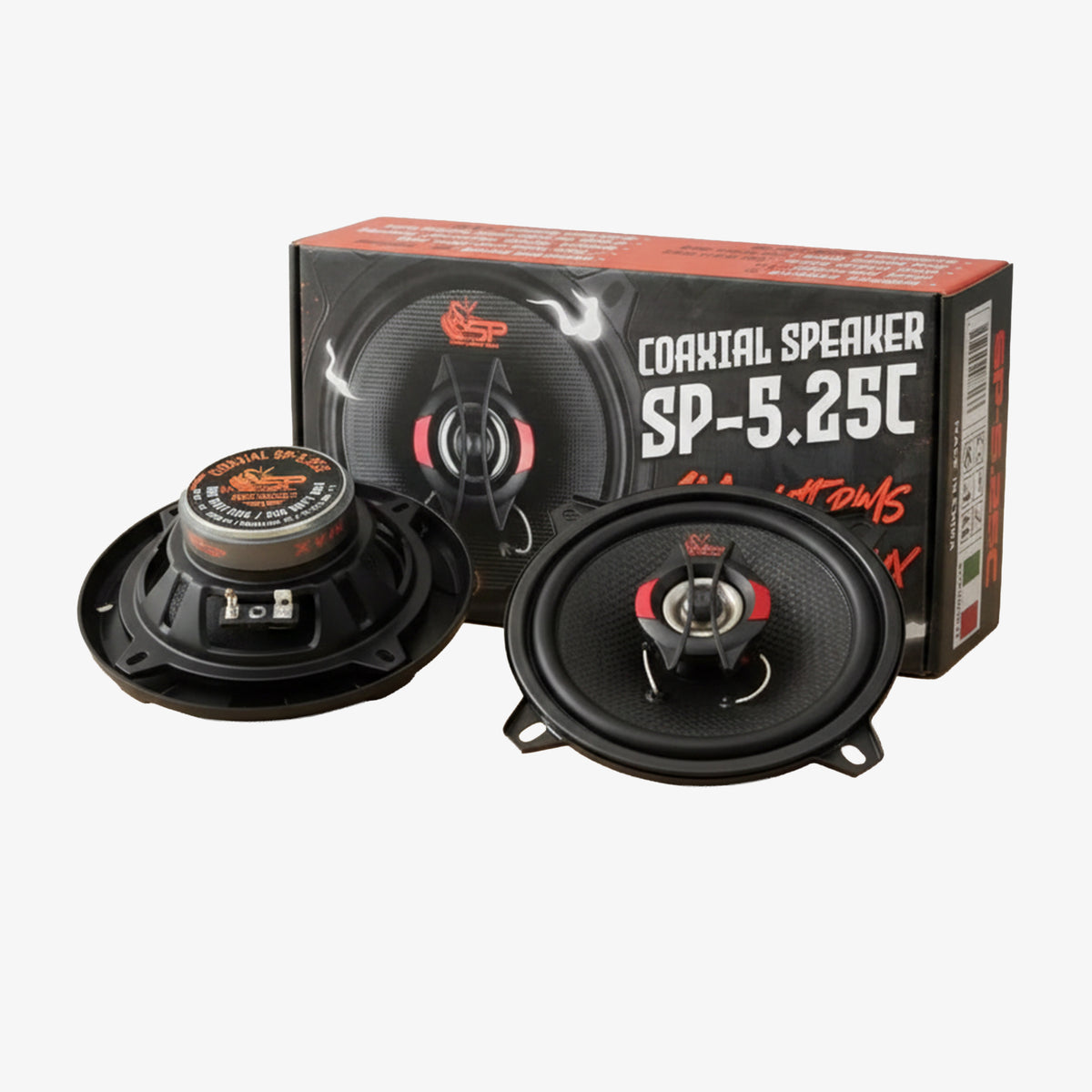

The price on this page is for a pair: left and right, from the same production batch, so the two sides of the car are matched. Packed in the SP Audio box with the protective foam.
In the box: 2 × SP 5.25C coaxial speakers · mounting screws · SP Audio packaging.
Not included: grilles, speaker cable and adapter rings — installation materials, chosen for your car. No external crossover is needed: it is built into the speaker.

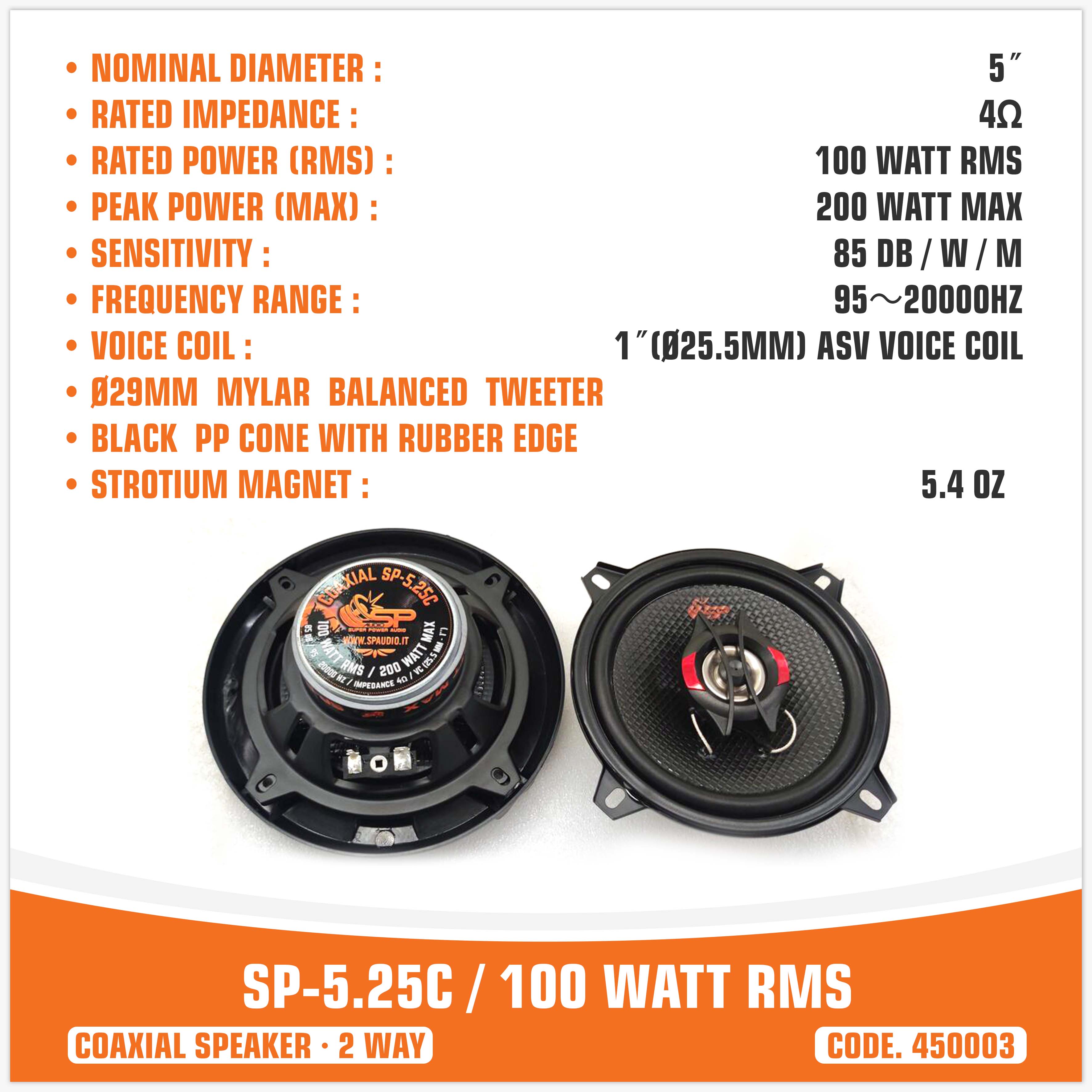

Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 100 W |
| Peak power (MAX) | 200 W |
| Rated impedance | 4 ohm |
| ACOUSTIC | |
| Nominal diameter | 135 mm (5") |
| Sensitivity | 85 dB SPL 1W/1M |
| Frequency range | 95 Hz - 20 kHz |
| DRIVER & MATERIALS | |
| Voice coil | 25.5 mm / 1" ASV |
| Tweeter | ø29 mm mylar, balanced |
| Magnet | Strontium 5.4 Oz |
| Cone | Injection PP, black, rubber surround |
| Sold as | Pair (2 pieces) |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Measure the hole and the depth first. A coaxial is deeper than a plain woofer, because the tweeter sits above the cone. Check the 5" cut-out and the free space behind the door panel or the window mechanism before you order.
- Do not go below 4 ohm per channel. Two speakers in parallel on one channel give 2 ohm: most head units and small amplifiers will heat up or go into protection.
- With a powerful amplifier, use a high-pass filter. Cut below 95 Hz and leave the bass to a subwoofer. Feeding deep notes to a coaxial is the fastest way to damage it.
- Seal the door panel and respect the polarity. Sound-deadening the panel and wiring both speakers in phase change more than any setting on the head unit.
Questions installers ask
