SP 6.5CM Midrange 6.5" 120W RMS 4 Ohm (Pair)
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
120 watt RMS.
The voice of the system.

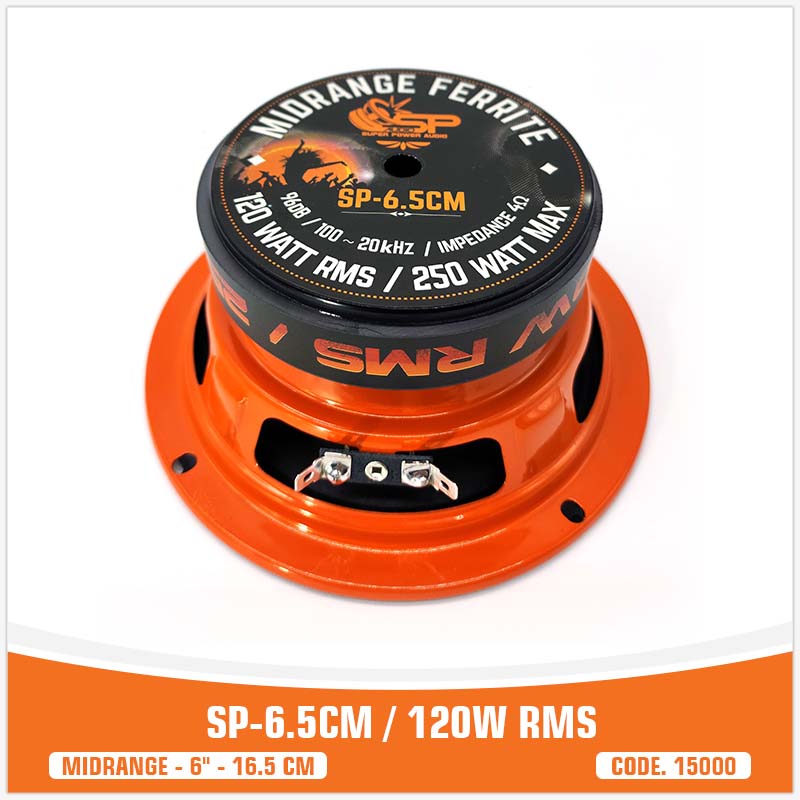

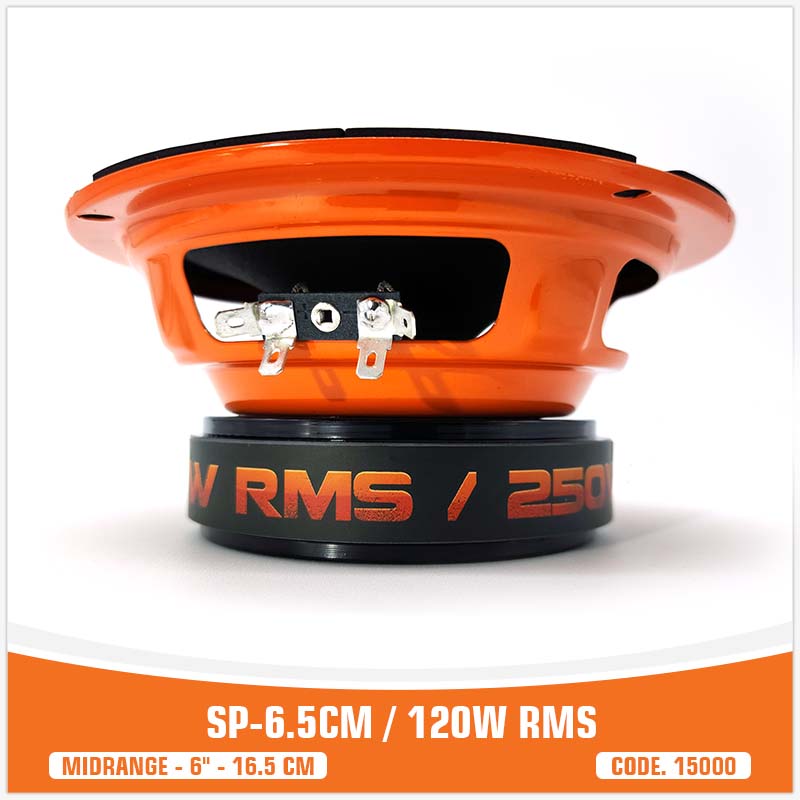

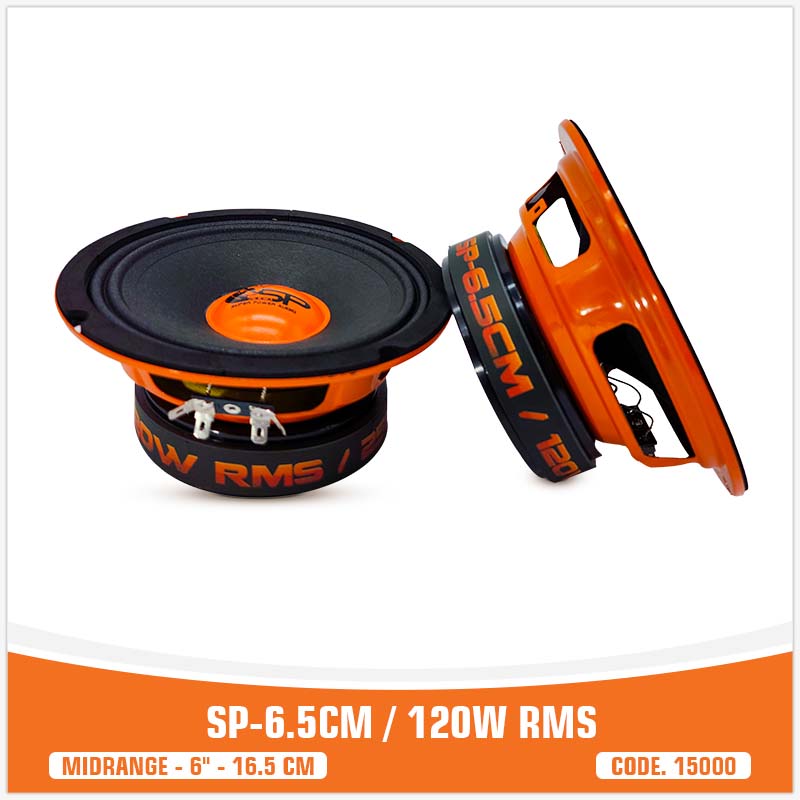

The midrange everyone starts from: 6.5"/16.5 cm, 96 dB, a 25 Oz ferrite motor and a solid aluminium phase plug. It carries the voice and the guitars over the bass, without shouting. Sold as a pair.
Power, measured not promised
PER SPEAKER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω, MINIMUM 3.2 Ω
Why this midrange
Three decibels of sensitivity are worth double the amplifier. At 96 dB a 120 W channel is already a lot of sound inside a car.
A solid aluminium plug in the centre of the cone: it keeps the response clean off-axis and pulls heat away from the voice coil.
Compressed paper with fiberglass, black painted. Light enough to stay fast, rigid enough not to bend at high volume.
165 mm nominal, 4 ohm, M-ROLL polycotton surround: it replaces the factory speaker in most doors without adapting anything.

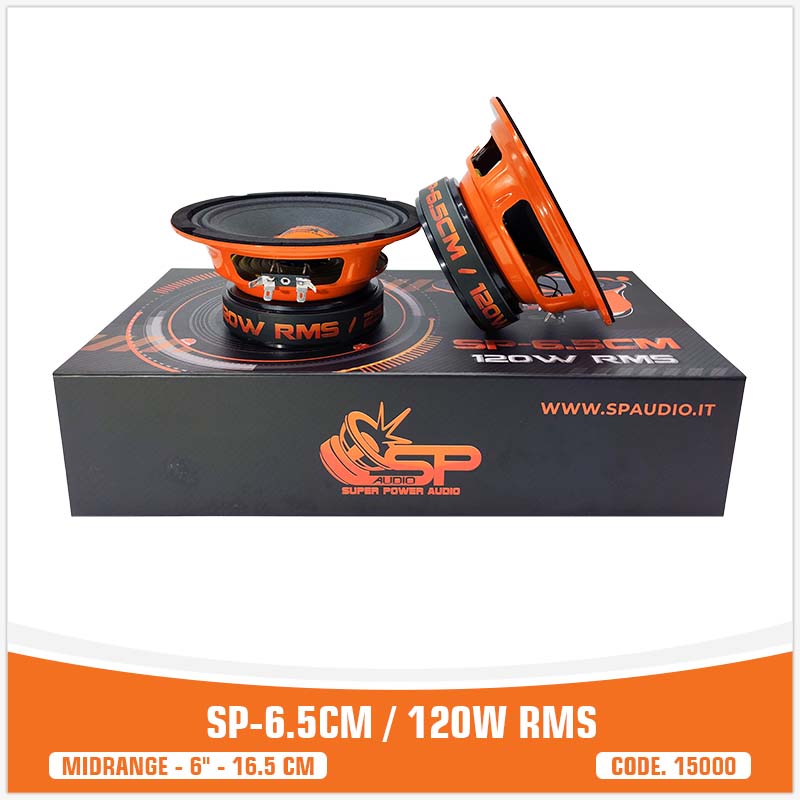

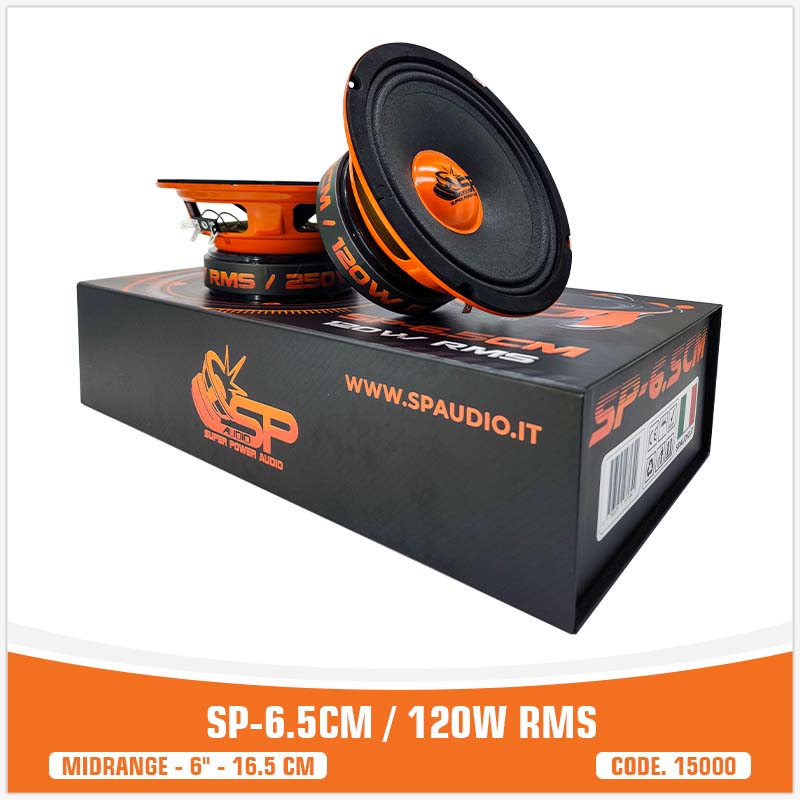

Look at it closely

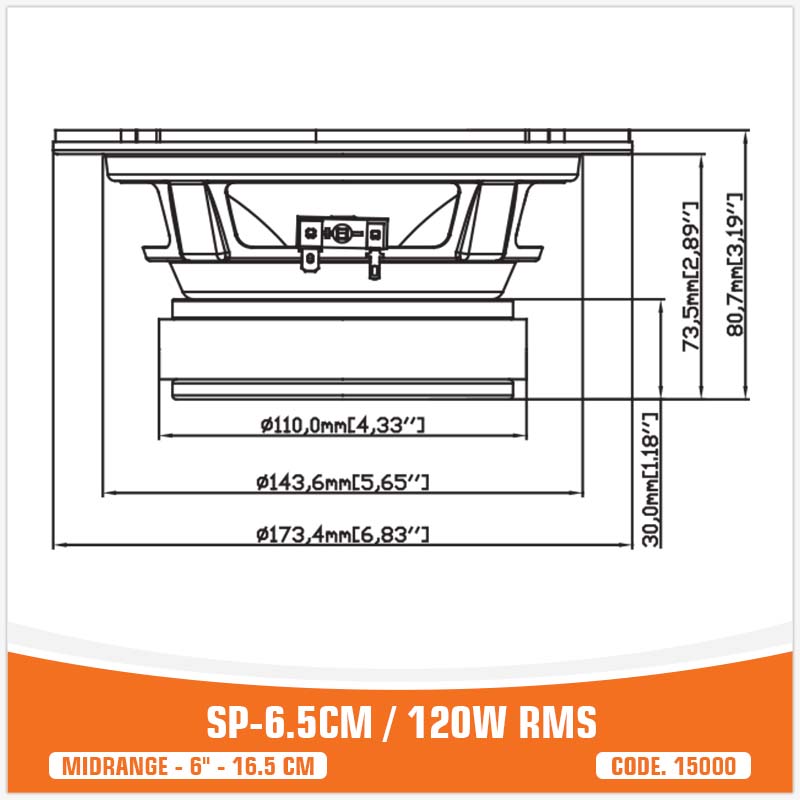

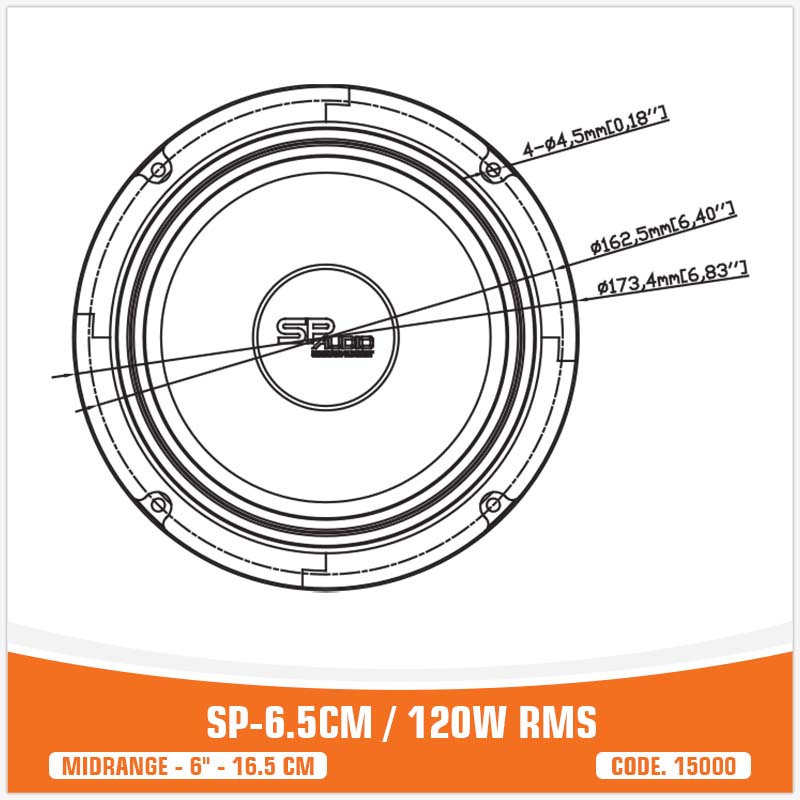

Full specifications, Thiele-Small parameters and mounting data, straight from the 2026 factory sheet.
⇩ Open the manual (PDF)English · 2026 edition · opens in a new tab
What you receive

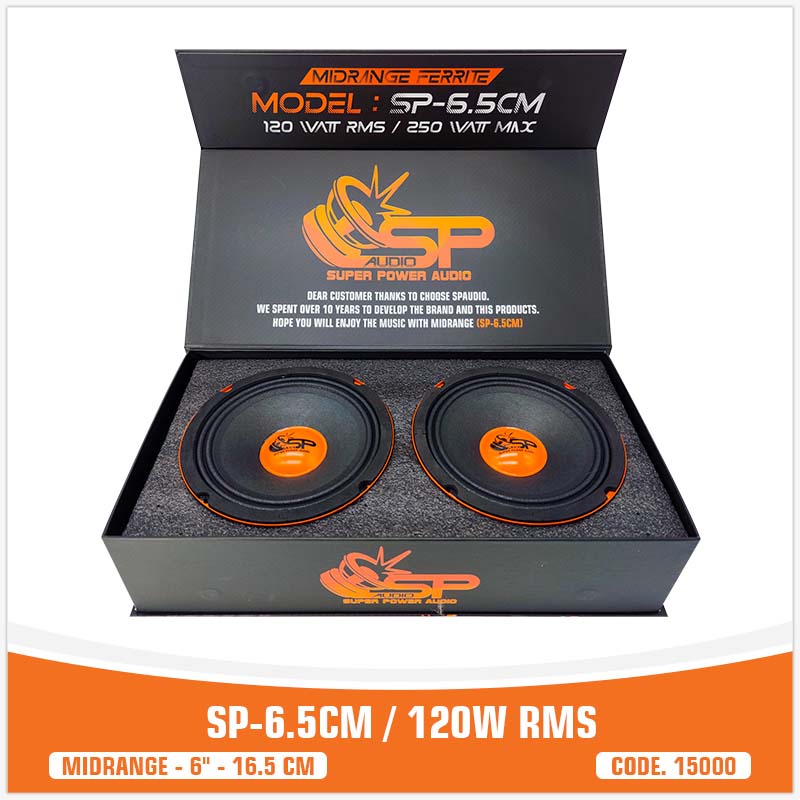

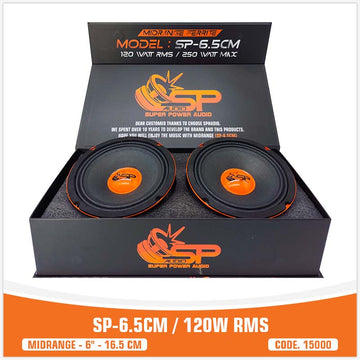

The price on this page is for a pair: left and right, from the same production batch, so the two sides of the car are matched. Packed in the SP Audio box with the protective grille foam.
In the box: 2 × SP 6.5CM midrange · mounting screws · SP Audio packaging.
Not included: grilles, speaker cable, crossovers and adapter rings — installation materials, chosen for your car.
Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 120 W |
| Peak power (MAX) | 240 W |
| Rated impedance | 4 ohm |
| Minimum impedance | 3.2 ohm |
| ACOUSTIC | |
| Nominal diameter | 165 mm (6.5") |
| Sensitivity | 96 dB SPL 1W/1M |

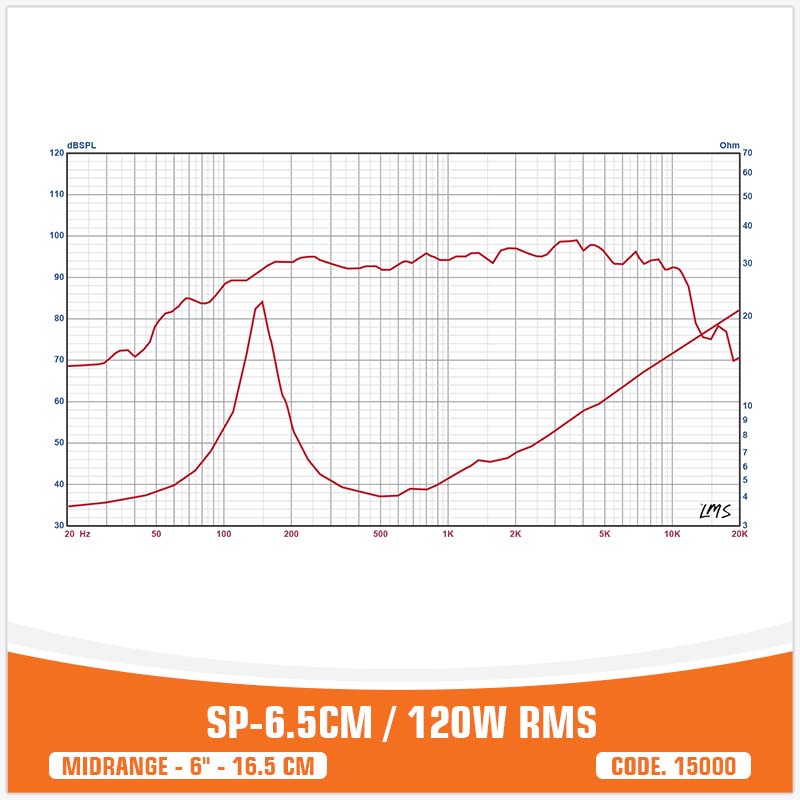

| Frequency range | 100 Hz - 20 kHz |
| MOTOR & MATERIALS | |
| Voice coil diameter | 30.5 mm / 1.2" EISV |
| Winding material | 220 °C aluminium wire |
| Magnet | 25 Oz ferrite |
| Phase plug | Aluminium, solid |
| Suspension | M-ROLL, polycotton |
| Cone | Compressed paper, fiberglass, black painted |
| Sold as | Pair (2 pieces) |
| THIELE-SMALL PARAMETERS | |
| Fs | 118 Hz |
| Re | 3.2 ohm |
| Qts | 0.624 |
| Qes | 0.671 |
| Qms | 9.061 |
| Vas | 4.67 L |
| Xmax | 2.0 mm |
| Sd | 147 cm² |
| Cms | 151.28 µm/N |
| Mms | 12.06 g |
| Bl | 6.53 TM |
| η0 | 1.101 % |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Do not go below 4 ohm per channel. Two speakers in parallel on one channel give 2 ohm: most amplifiers will heat up or go into protection.
- Use a high-pass filter. This is a midrange, not a woofer: cut below 100 Hz and let the subwoofer do the bass. Feeding it low notes is the fastest way to damage it.
- Set the gain with your ears off. Clipping kills voice coils far more often than power does.
- Seal the door panel. A midrange in an open door loses mid-bass: sound-deaden the panel and you gain more than changing the speaker.
