SP 6.5CM CX COAXIAL MIDRANGE WITH TWEETER 6.5"/16.5CM 180W RMS (PAIR PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
180 watt RMS.
Mids and highs, one speaker.
SP 6.5CM CX is the coaxial version of our best seller: 6.5"/16.5 cm, 180 W RMS, 96 dB and a 38.5 mm EISV voice coil, with the tweeter built into the centre. One pair covers voices, guitars and cymbals — no separate tweeter, no external crossover. Sold as a pair.
Power, measured not promised
PER SPEAKER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω, MINIMUM 3.2 Ω
Why the CX version

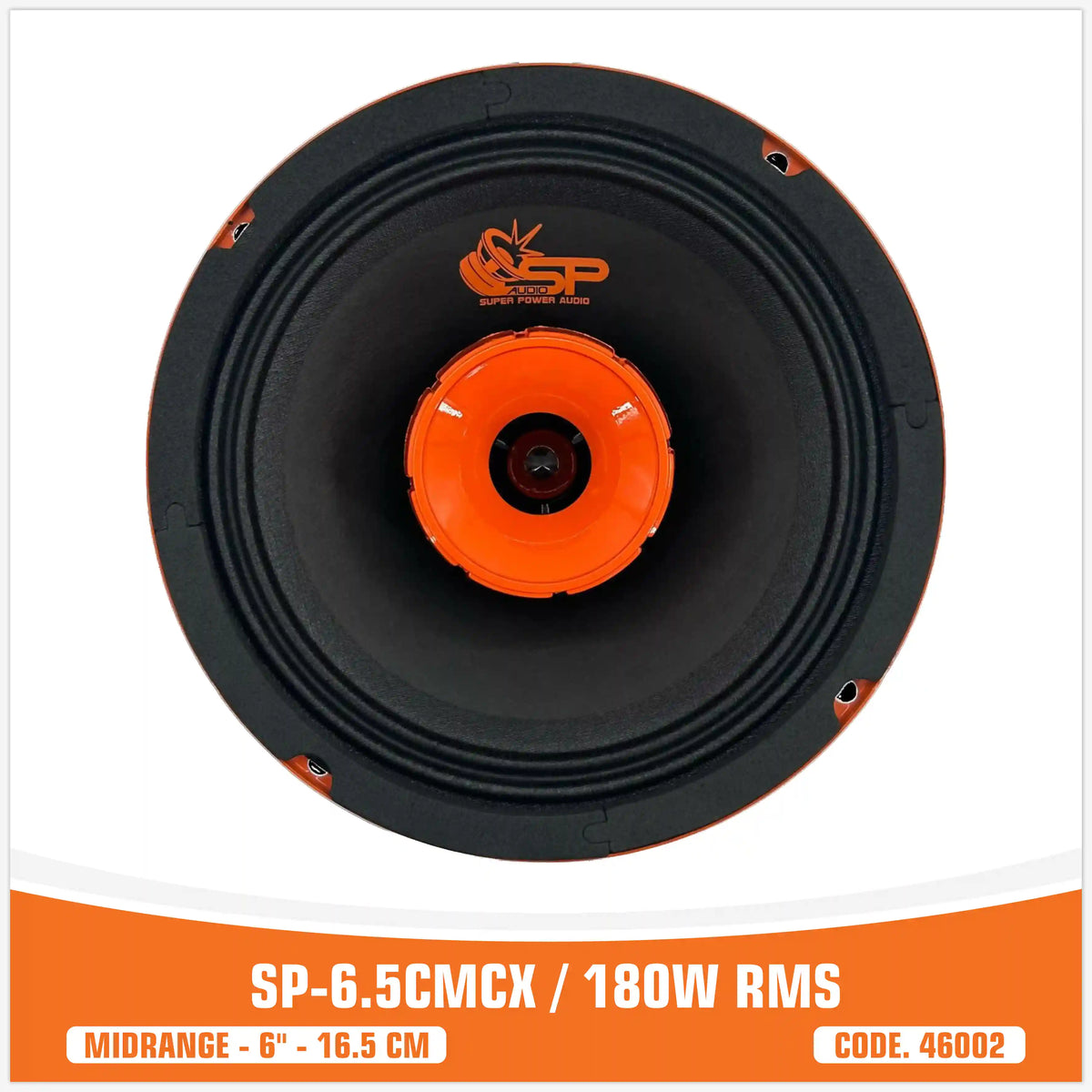

Coaxial means the tweeter sits in the centre of the midrange: mids and highs leave from the same point. You do not buy a separate tweeter and you do not wire an external crossover.
Same 6.5" frame as the SP 6.5CM, but 180 W RMS continuous and 360 W peak, on a 38.5 mm / 1.75" EISV voice coil that takes the heat.
Sensitivity is what you hear first. At 96 dB a 180 W channel is already a very full front stage inside a car.
165 mm nominal, 4 ohm, 100 Hz - 20 kHz: it replaces the factory speaker in most doors and covers the whole range above the subwoofer on its own.

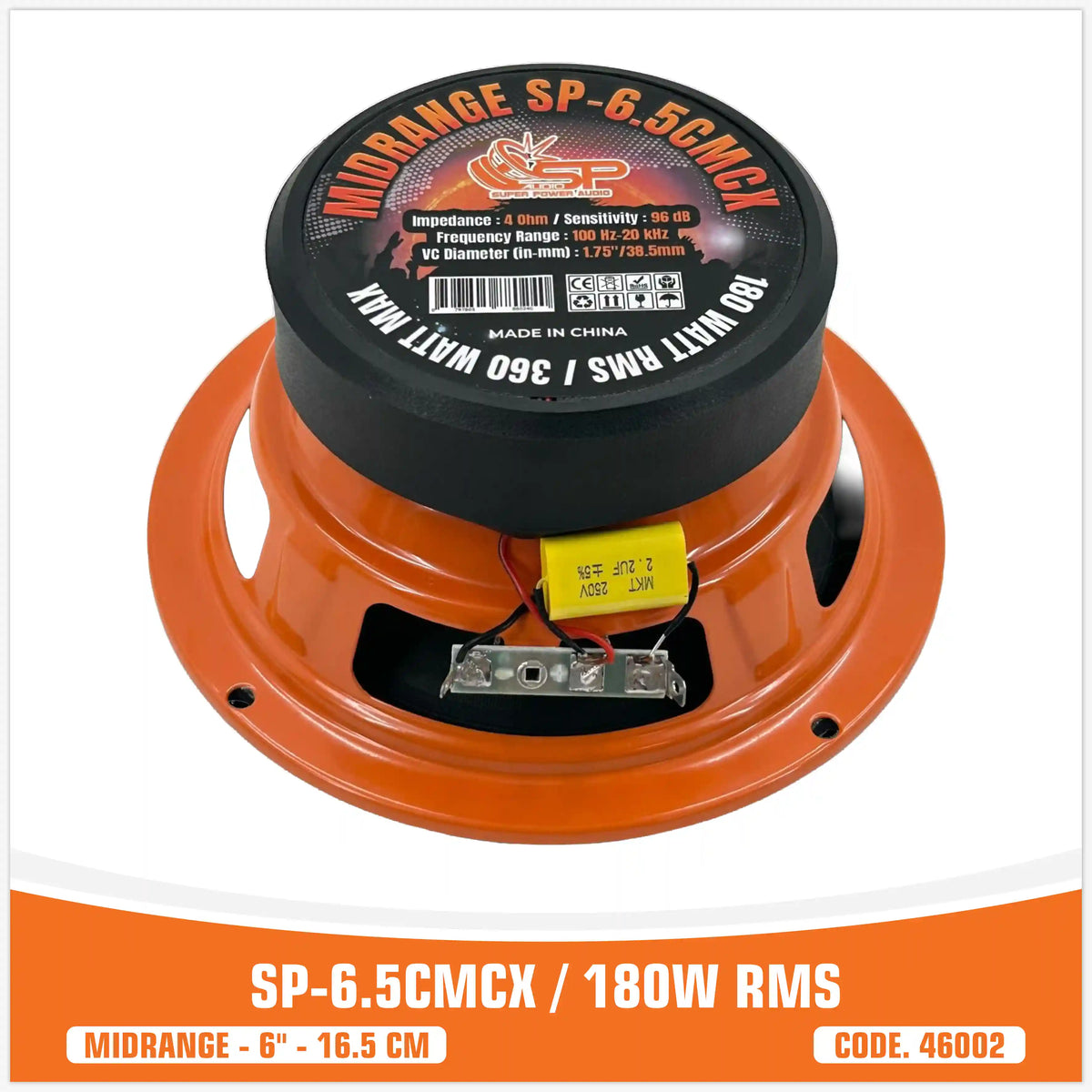

Look at it closely
Full specifications and mounting data, straight from the 2026 factory sheet.
⇩ Open the manual (PDF)English · 2026 edition · opens in a new tab
What you receive

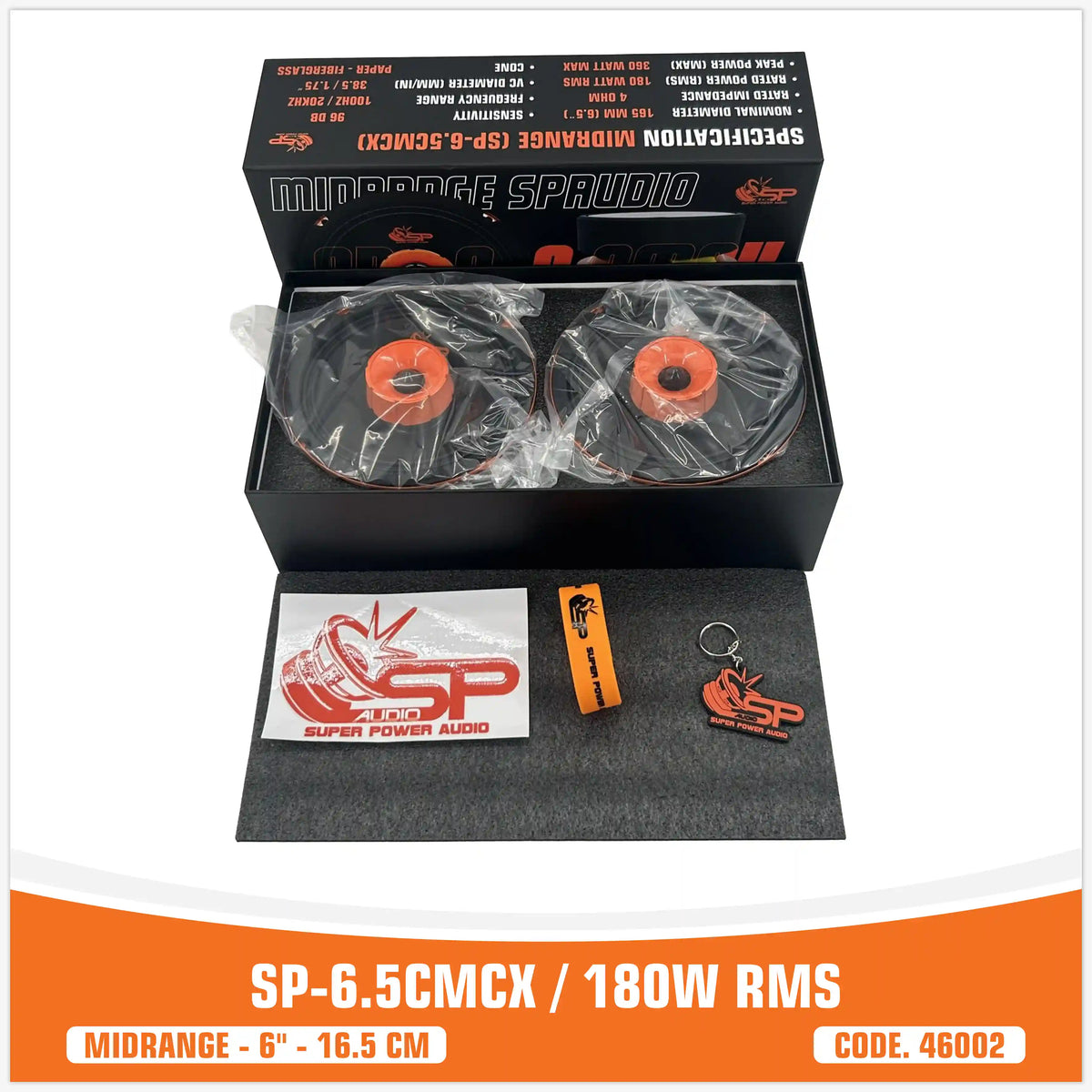

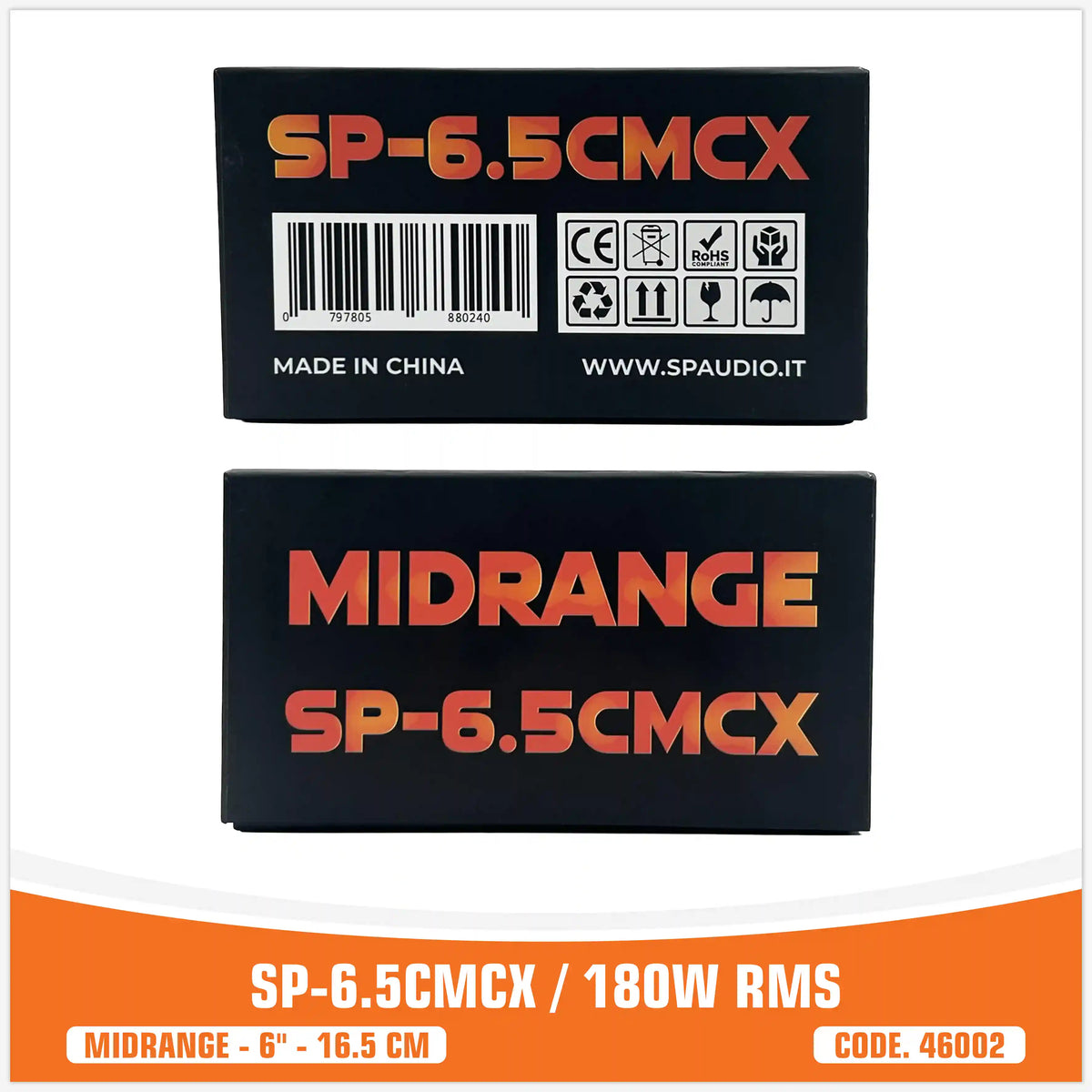

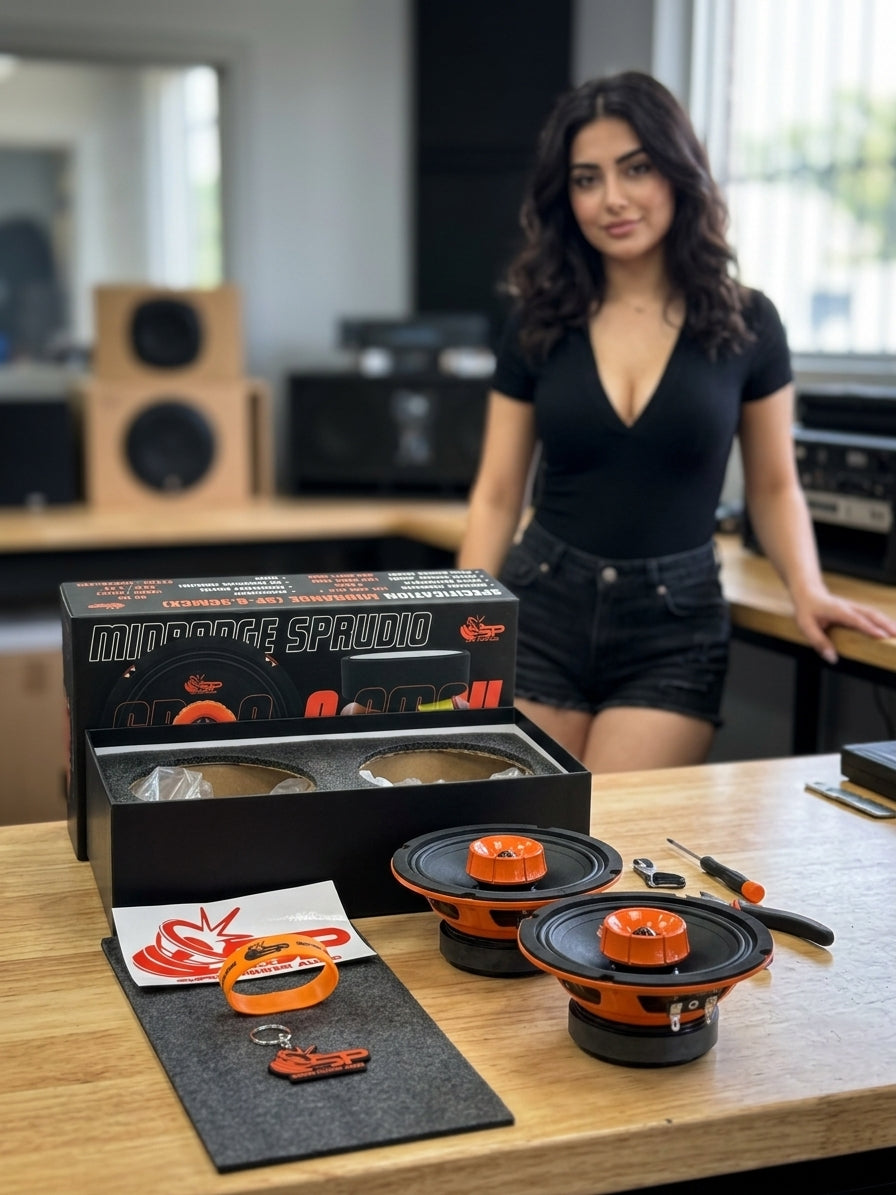

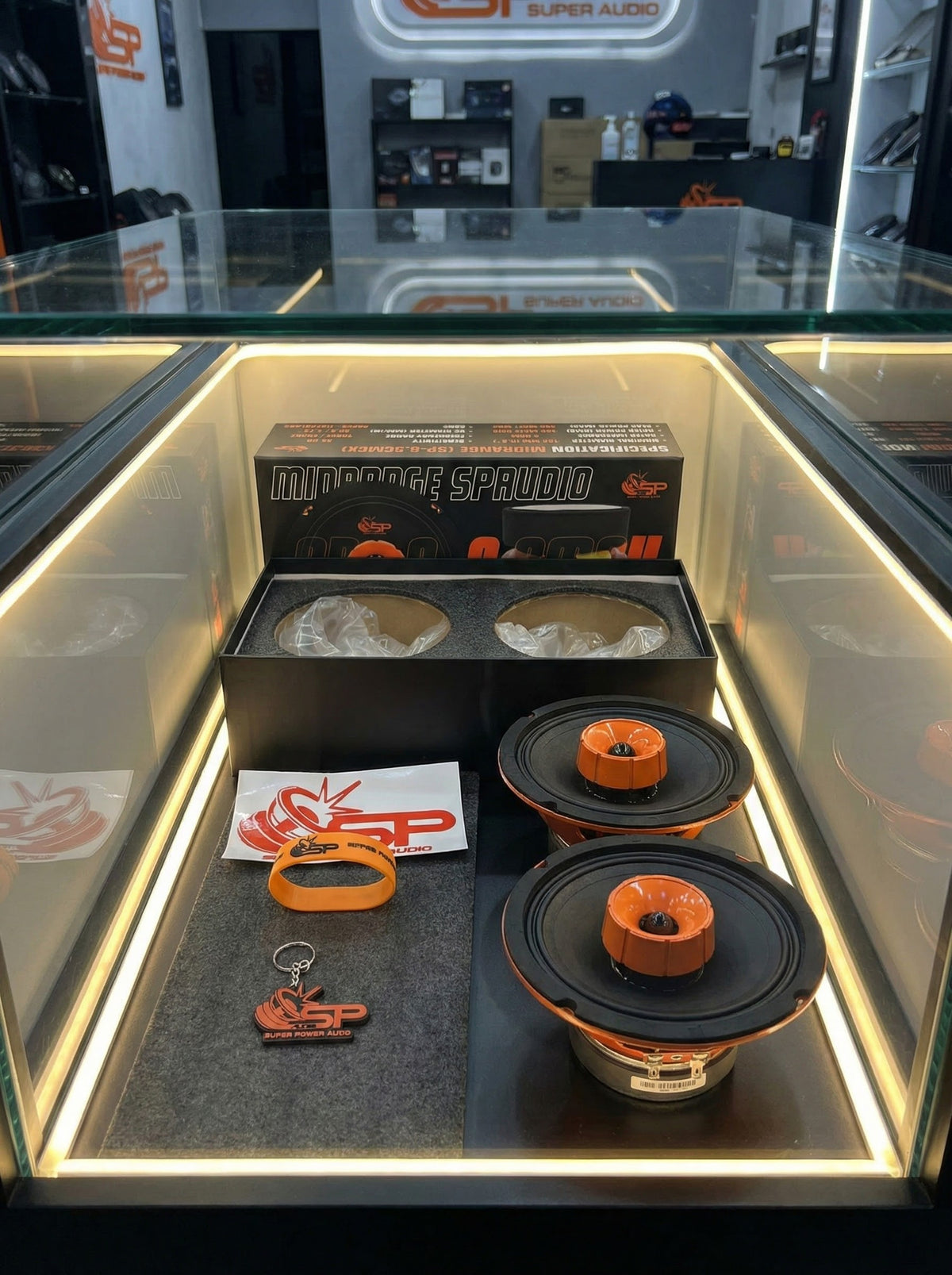

The price on this page is for a pair: left and right, from the same production batch, so the two sides of the car are matched. Packed in the SP Audio box with the protective foam.

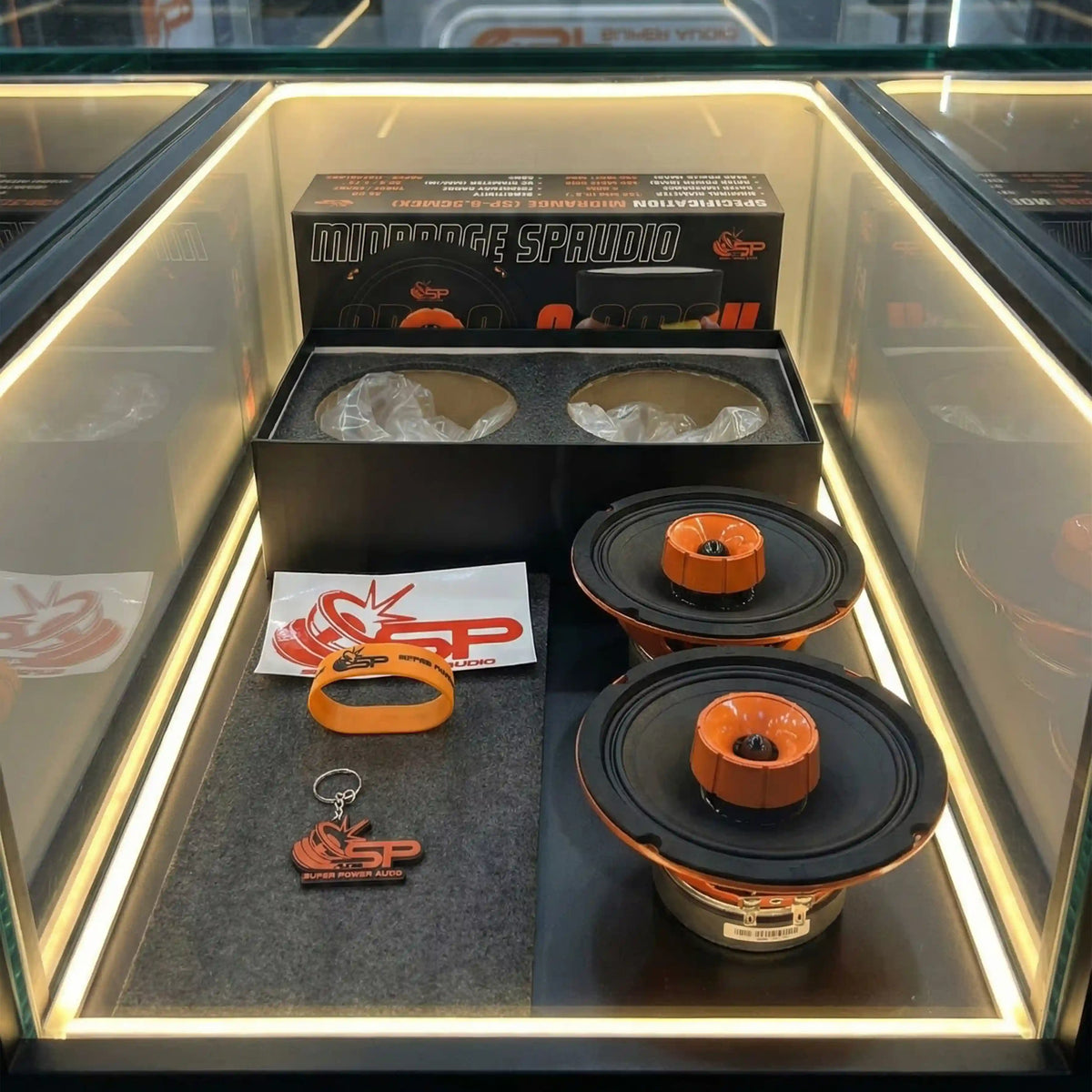

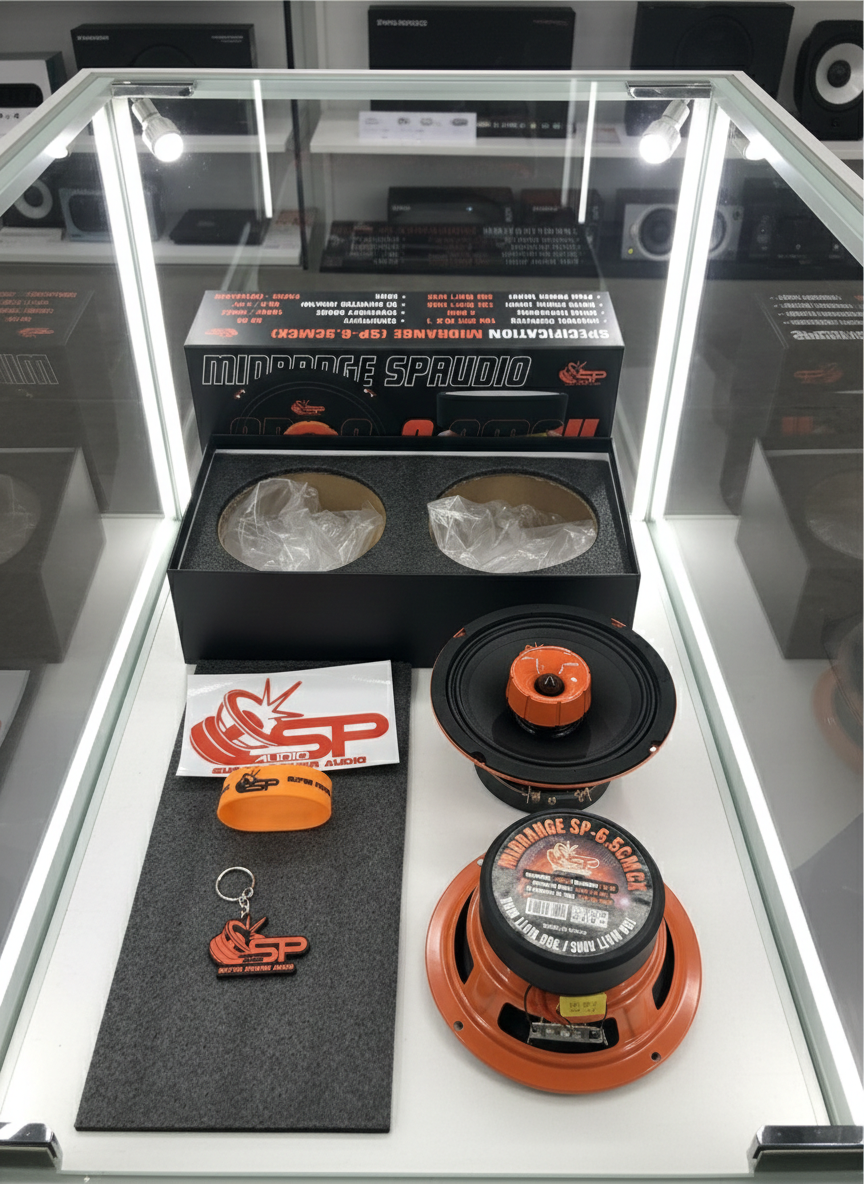

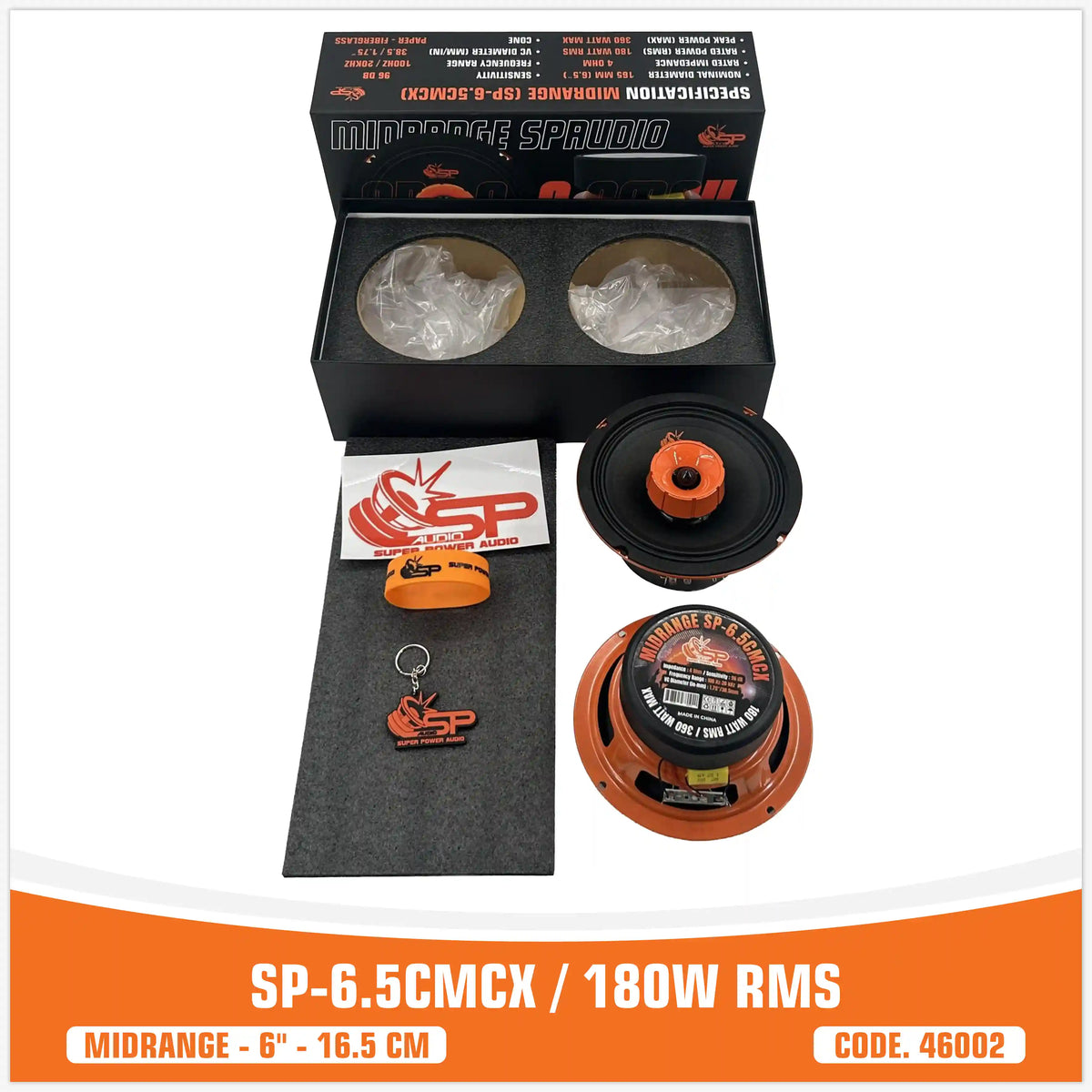

In the box: 2 × SP 6.5CM CX coaxial speakers · mounting screws · SP Audio packaging.
Not included: grilles, speaker cable and adapter rings — installation materials, chosen for your car. No external crossover is needed: the tweeter is built in.
Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 180 W |
| Peak power (MAX) | 360 W |
| Rated impedance | 4 ohm |
| Minimum impedance | 3.2 ohm |
| ACOUSTIC | |
| Type | Coaxial: midrange + tweeter |
| Nominal diameter | 165 mm (6.5") |
| Sensitivity | 96 dB SPL 1W/1M |
| Frequency range | 100 Hz - 20 kHz |
| MOTOR & MATERIALS | |
| Voice coil diameter | 38.5 mm / 1.75" EISV |
| Winding material | 220 °C aluminium wire |
| Suspension | M-ROLL, polycotton |
| Cone | Fiberglass reinforced paper |
| Sold as | Pair (2 pieces) |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Do not go below 4 ohm per channel. Two speakers in parallel on one channel give 2 ohm: most amplifiers will heat up or go into protection.
- Use a high-pass filter. This is a coaxial midrange, not a woofer: cut below 100 Hz and let the subwoofer do the bass. Feeding it low notes is the fastest way to damage it.
- Do not add an external crossover. The tweeter is already inside and already filtered: send the channel straight to the speaker.
- Seal the door panel. A coaxial in an open door loses mid-bass: sound-deaden the panel and you gain more than changing the speaker.
