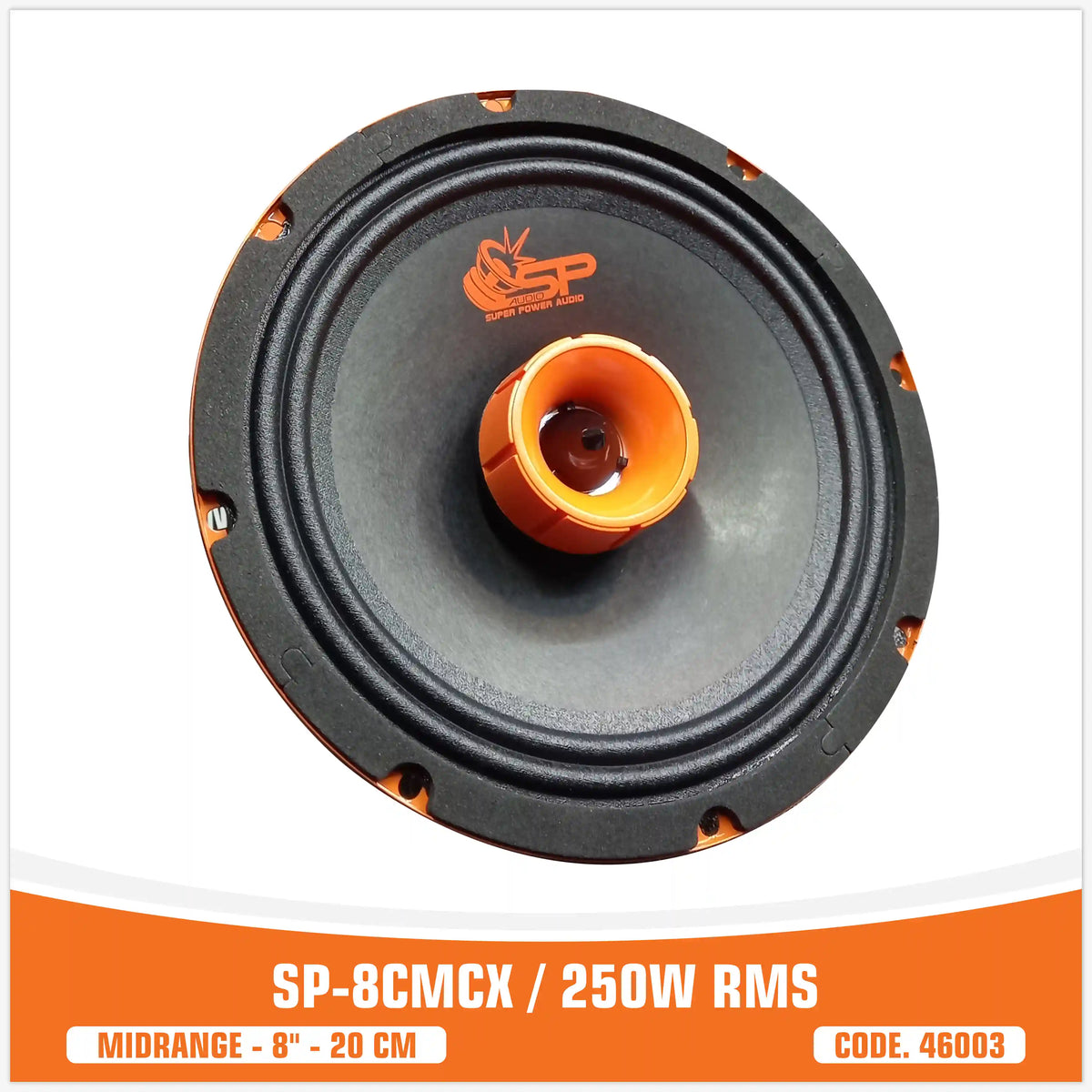

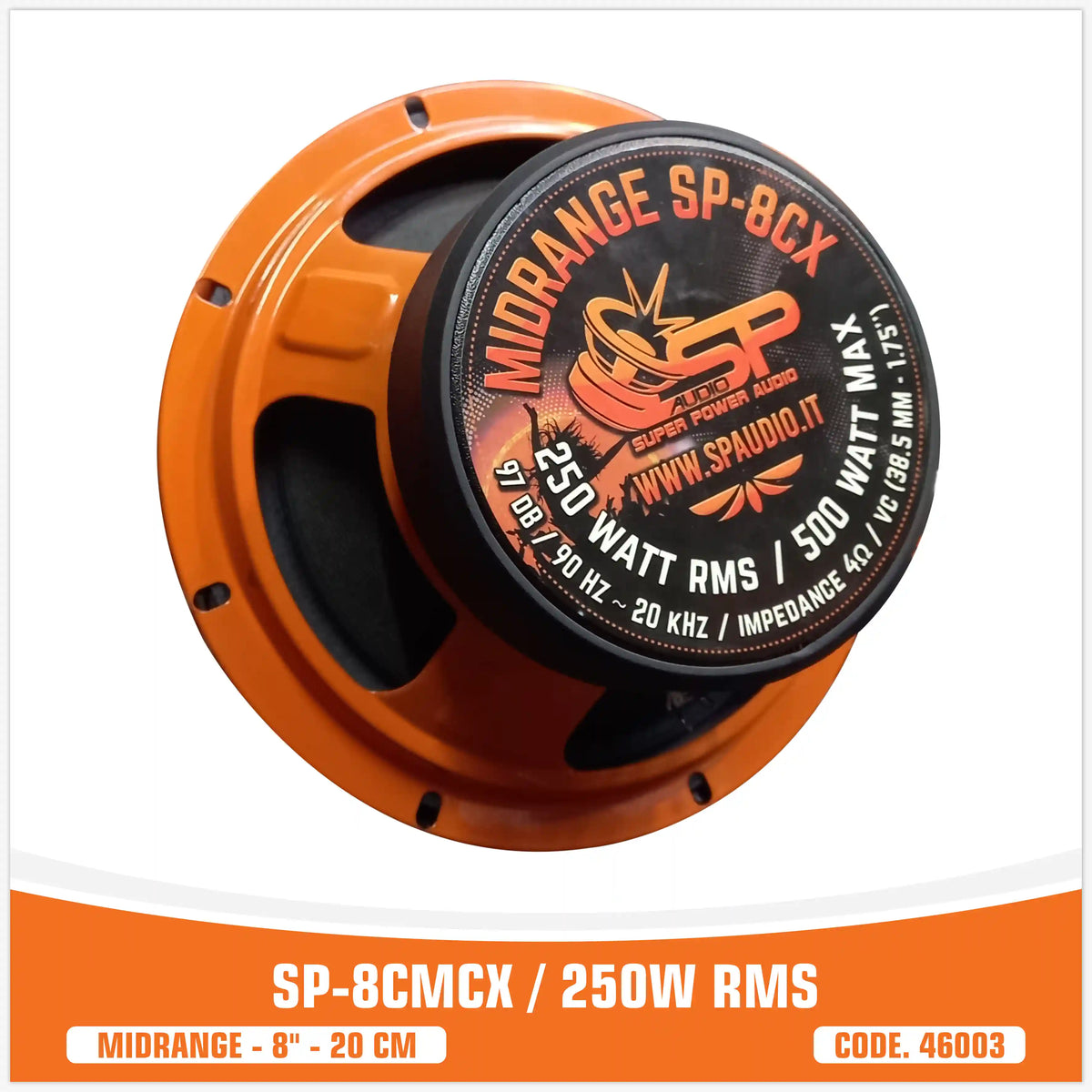

SP 8CM CX COAXIAL MIDRANGE WITH TWEETER 8"/20CM 250W RMS (PAIR PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
250 watt RMS.
Mids and highs, one speaker.
An 8"/20 cm coaxial with the tweeter built into the centre: 250 W RMS, 97 dB, a 31 Oz ferrite motor and a 38.5 mm voice coil. No separate tweeter, no external crossover — you wire two cables and the front stage is done. Sold as a pair.
Power, measured not promised
PER SPEAKER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω, MINIMUM 3.2 Ω
Why this coaxial
The tweeter sits in the centre of the cone, on the same axis: voices and cymbals come from the same point as the midrange. No separate tweeter to mount, no external crossover to buy.
1.75" EISV coil wound with 220 °C aluminium wire on a 31 Oz ferrite motor. It takes 250 W continuous per speaker, not a burst figure.
High sensitivity means the amplifier works less for the same volume. At 97 dB a 250 W channel is a very loud front stage inside a car.
Light enough to stay fast on voices, rigid enough not to bend at high volume, with an M-ROLL polycotton surround.
Look at it closely
Full specifications, Thiele-Small parameters and mounting data, straight from the 2026 factory sheet.
⇩ Open the manual (PDF)English · 2026 edition · opens in a new tab

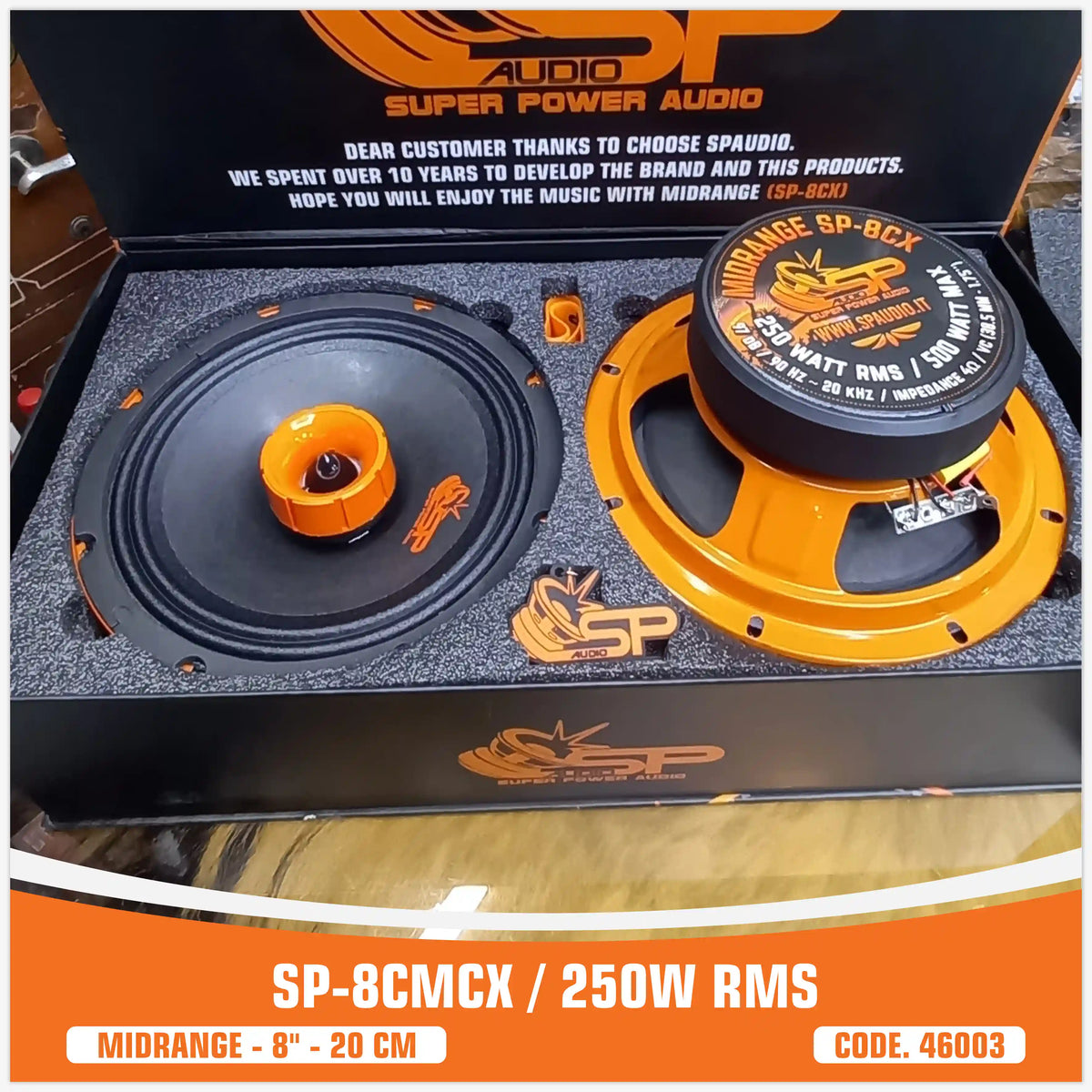

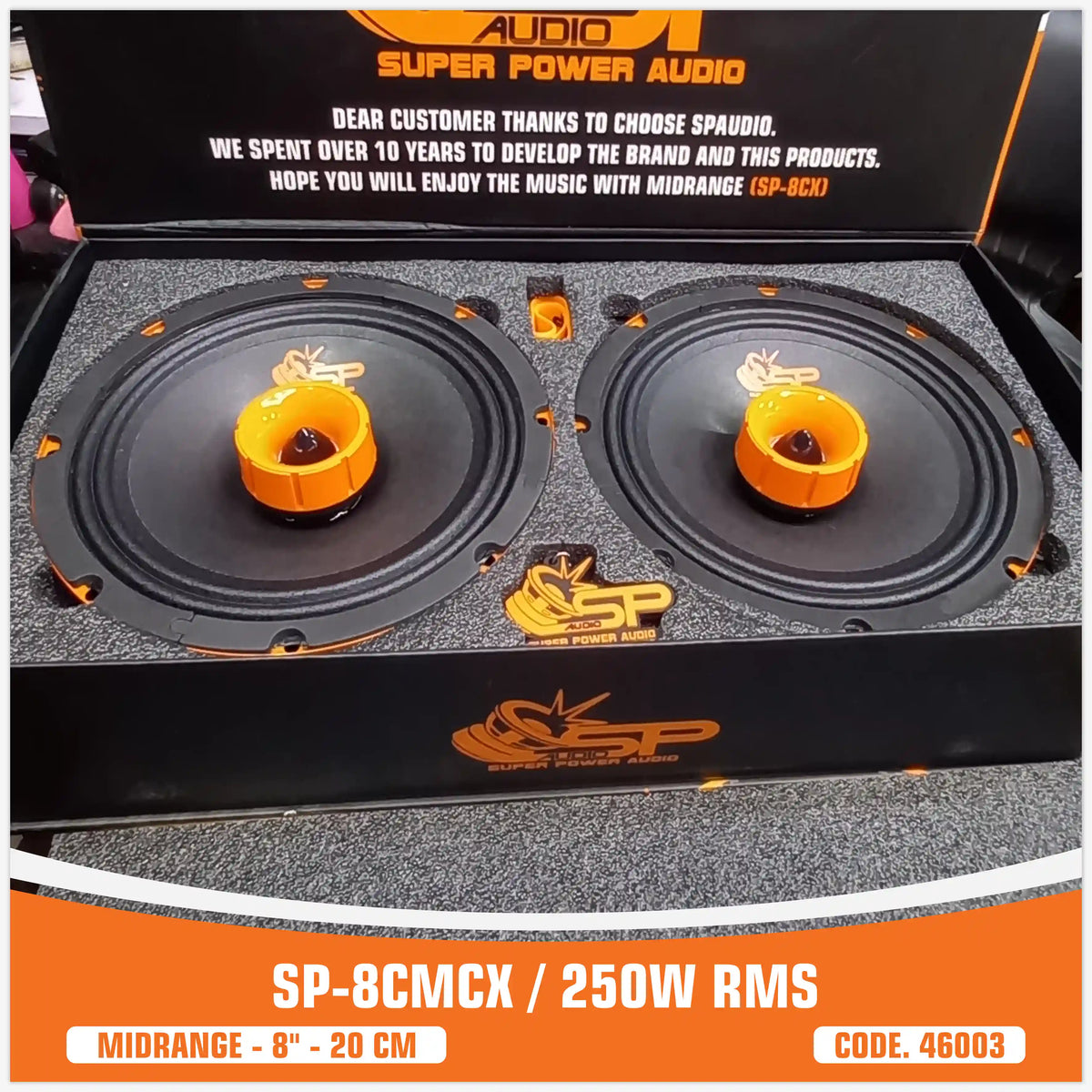

What you receive
The price on this page is for a pair: left and right, from the same production batch, so the two sides of the car are matched. Packed in the SP Audio box with the protective foam.
In the box: 2 × SP 8CM CX coaxial · mounting screws · SP Audio packaging.
Not included: grilles, speaker cable and adapter rings — installation materials, chosen for your car. No external crossover is needed: the tweeter is built in.
Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 250 W |
| Peak power (MAX) | 500 W |
| Rated impedance | 4 ohm |
| Minimum impedance | 3.2 ohm |
| ACOUSTIC | |
| Type | Coaxial: midrange + tweeter |
| Nominal diameter | 200 mm (8") |
| Sensitivity | 97 dB SPL 1W/1M |
| Frequency response | 90 Hz - 20 kHz |
| MOTOR & MATERIALS | |
| Voice coil diameter | 38.5 mm / 1.75" EISV |
| Winding material | 220 °C aluminium wire |
| Magnet | 31 Oz ferrite |
| Suspension | M-ROLL, polycotton |
| Cone | Fiberglass reinforced paper |
| DIMENSIONS & MOUNTING | |
| Mounting depth | 89 mm (3.50") |
| Outer diameter | 209.2 mm (8.24") |
| Cut-out diameter | 182.5 mm (7.19") |
| Sold as | Pair (2 pieces) |
| THIELE-SMALL PARAMETERS | |
| Fs | 96.229 Hz |
| Re | 3.2 ohm |
| Qts | 0.646 |
| Qes | 0.710 |
| Qms | 7.123 |
| Vas | 13.372 L |
| Xmax | 2.5 mm |
| Sd | 226.98 cm² |
| Cms | 182.775 µm/N |
| Mms | 14.966 g |
| Bl | 6.384 TM |
| η0 | 1.622 % |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- Do not go below 4 ohm per channel. Two speakers in parallel on one channel give 2 ohm: most amplifiers will heat up or go into protection.
- Use a high-pass filter. This is a midrange, not a woofer: cut below 90 Hz and let the subwoofer do the bass. Feeding it low notes is the fastest way to damage it.
- Check the depth before you buy the rings. It needs 89 mm (3.50") behind the panel, a 182.5 mm (7.19") cut-out and 209.2 mm (8.24") of outer diameter.
- Set the gain properly. On a coaxial the tweeter is the first thing clipping destroys. Distortion kills voice coils far more often than power does.
Questions installers ask
