SP DRIVER 35 COMPLETE DRIVER WITH HORN 250W RMS (UNIT PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
250 watt RMS.
The horn is in the box.

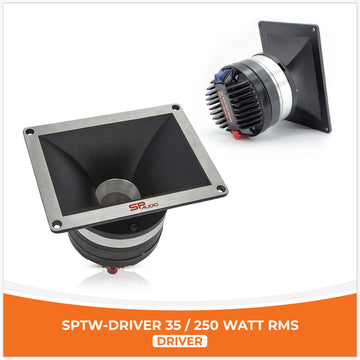

A complete compression driver, horn included: 113 dB sensitivity, a 34.4 mm / 1.35" voice coil and 250 W RMS on a 25 mm (1") throat. Usable range 1.5 kHz – 20 kHz. Magnet: 16 oz. Sold as a single unit.
Power, measured not promised
PER DRIVER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω
Why this driver
The 16 oz motor keeps the voice coil under control at high level, session after session. Sensitivity stays at 113 dB and it takes 250 W RMS.
Sensitivity is what makes a horn loud. At 113 dB this driver stays above the midrange and the sub without asking for huge power.
The horn comes in the box, already matched to the 25 mm (1") throat. No guessing about flare or coupling: it arrives as one working assembly.
The coil measures 34.4 mm / 1.35" and is wound in CCAW (aluminium). That is the part that turns 250 W RMS into pressure and then has to survive it.
Look at it closely
Full specifications and mounting data, straight from the 2026 factory sheet.
⇩ Open the manual (PDF)English · 2026 · opens in a new tab
What you receive
The price on this page is for one piece: driver and horn together, ready to mount. Packed in the SP Audio box.
In the box: 1 × SP DRIVER 35 compression driver with horn · SP Audio packaging.
Not included: crossovers, capacitors, speaker cable and brackets — installation materials, chosen for your car.
Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 250 W |
| Peak power (MAX) | 500 W |
| Minimum impedance | 4 ohm |
| ACOUSTIC | |
| Sensitivity | 113 dB SPL 1W/1M |
| Frequency range | 1.5 kHz – 20 kHz |
| Throat diameter | 25 mm (1") |
| MOTOR & MATERIALS | |
| Voice coil diameter | 34.4 mm / 1.35" |
| Winding material | CCAW (aluminium) |
| Magnet | 16 oz |
| DIMENSIONS & PACKAGING | |
| Overall diameter | 160 × 120 mm (6.2 × 4.7") |
| Depth | 135 mm (5.2") |
| Net weight | 2 kg |
| Shipping weight (1 pc) | 2.3 kg |
| Shipping box (1 pc) | 16.5 × 12.5 × 14.5 cm |
| Sold as | Single unit |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- It always needs a crossover. Never full range. A compression driver wired straight to the amplifier does not survive. Use a crossover, or at the very least a capacitor in series.
- Do not cross below 1.5 kHz. 1.5 kHz is the lowest frequency this driver is rated for. Going under it, at any power, is the fastest way to tear the diaphragm.
- Do not go below 4 ohm per channel. 4 ohm is the minimum load. Two drivers in parallel on one channel give 2 ohm: most amplifiers will heat up or go into protection.
- Aim it, and set the gain low. A horn is directional, so point it at the listener; then bring the level up slowly. Clipping kills compression drivers far more often than power does.
Questions installers ask
