SP-BT 16 (Blister) . BATTERY TERMINAL
Free shipping worldwide. Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
2×0 + 2×8 GA.
Four solid connections.

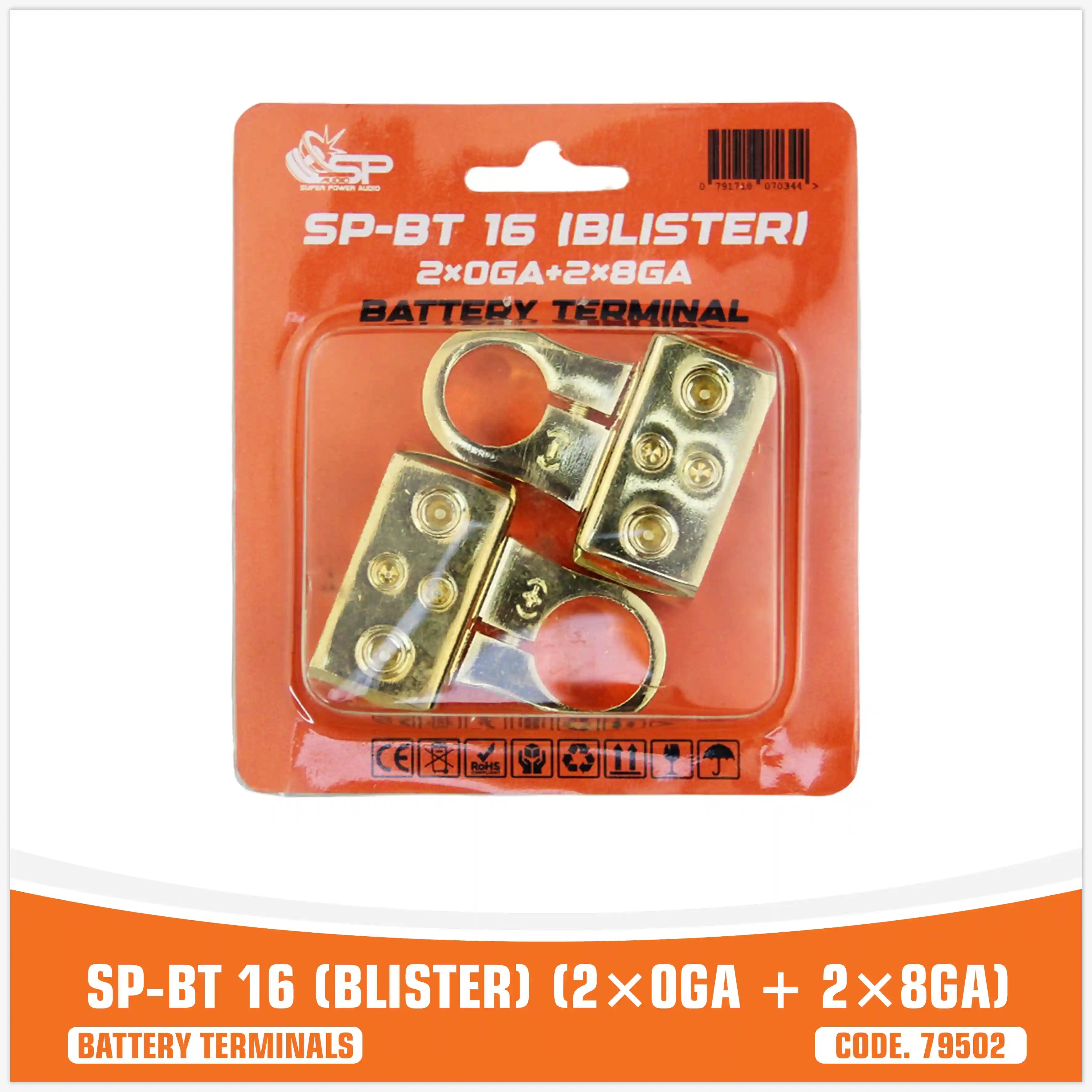

The SP-BT 16 is a pair of gold-tone battery terminals in a blister pack. Each one clamps onto the battery post with a ring and a side screw, and gives you four clean cable entries: two 0 GA for main power and two 8 GA for auxiliary feeds, each locked by its own hex set screw.
Why this terminal
Main power for an amplifier or a distribution block, straight from the battery post.
Auxiliary feeds for processors, fans and accessories, without splicing into the main cable.
Each entry is locked by its own hex set screw: larger screws for 0 GA, smaller for 8 GA.
The ring slides over the post and a hex clamp screw on the side tightens it.
(+) or (−) engraved on the clamp neck of each terminal of the pair.
Sold as a pair in a sealed blister pack, with CE and RoHS symbols printed on the pack.
Safety, installation step by step, wiring, troubleshooting and the full specifications.
⇩ Download the manual (PDF)PDF · English · 2026 edition
What's in the box
SP-BT 16 battery terminals, one pair: (+) and (−) marked on the clamp · sealed blister pack with CE / RoHS symbols and barcode · user manual (digital, latest version on spaudio.it).
Not included: battery cables, fuse holders and fuses, ring terminals, hex (Allen) keys and tools.
Technical specifications
| PRODUCT | |
|---|---|
| Model | SP-BT 16 (BLISTER) |
| Type | Battery terminals, pair (+) / (−) |
| Cable entries per terminal | 2 × 0 GA + 2 × 8 GA |
| Cable sections (standard) | 0 GA ≈ 53.5 mm² · 8 GA ≈ 8.4 mm² |
| CONNECTION | |
| Battery clamp | Ring with side clamp screw |
| Cable clamping | Hex set screw, one per entry |
| Finish | Gold-tone plated |
| Polarity marking | (+) / (−) on the clamp |
| BODY & PACK | |
| Dimensions (approx.) | 46 × 54 × 16 mm |
| Clamp ring outer Ø / bore Ø | 24 / 17 mm |
| 0 GA / 8 GA entry Ø | ≈ 10 / ≈ 4 mm |
| Packaging | Blister pack · 1 pair |
| EAN | 0 791718 070344 |
| Marks on pack | CE · RoHS |
| Current rating | Not declared by the manufacturer |
MANUFACTURER'S DATA · DIMENSIONS ARE APPROXIMATE (±2 MM) · CHOOSE CABLE GAUGE AND FUSE FOR THE ACTUAL LOAD
Complete the system
Before you install it
- Disconnect the battery first. Remove the negative terminal first and re-connect it last. A tool bridging (+) and (−) can melt in seconds.
- Fuse within 20 cm of the battery. Every power cable leaving a terminal needs a fuse or circuit breaker rated for that cable, at most 20 cm from the battery.
- Correct cable gauge. 0 GA cable in the 0 GA entries and 8 GA in the 8 GA entries. Never use thinner cable than the entry is made for.
- Clean and tight. Clean post and clamp bore to bare metal. Tighten firmly but do not over-tighten, and re-check after the first drive.
- 12 V negative-ground vehicles only. Do not use on 24 V trucks or other systems. Do not modify or drill the terminals.
